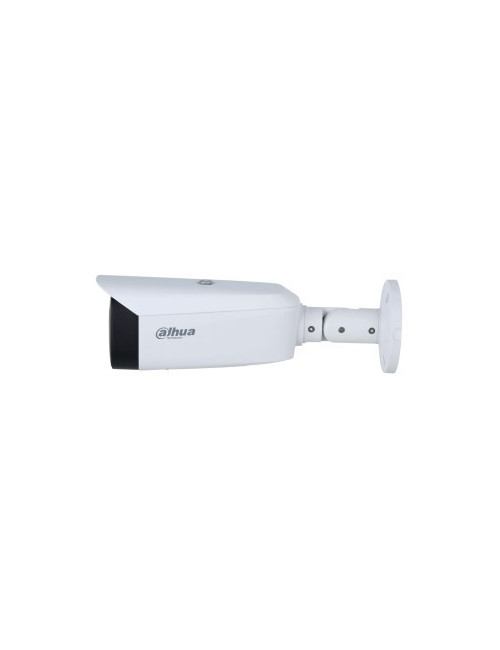

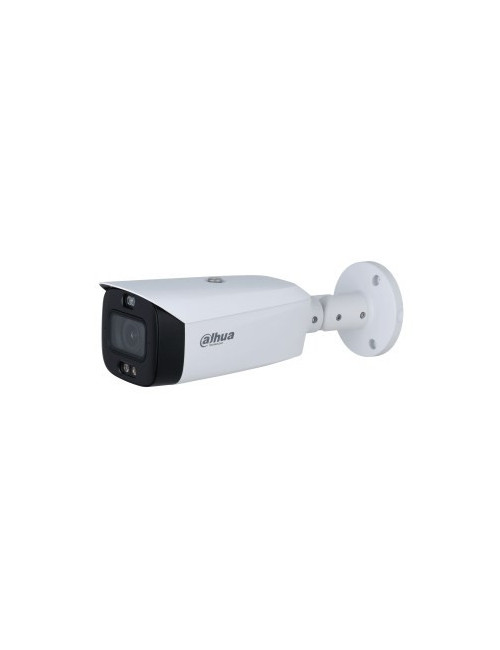

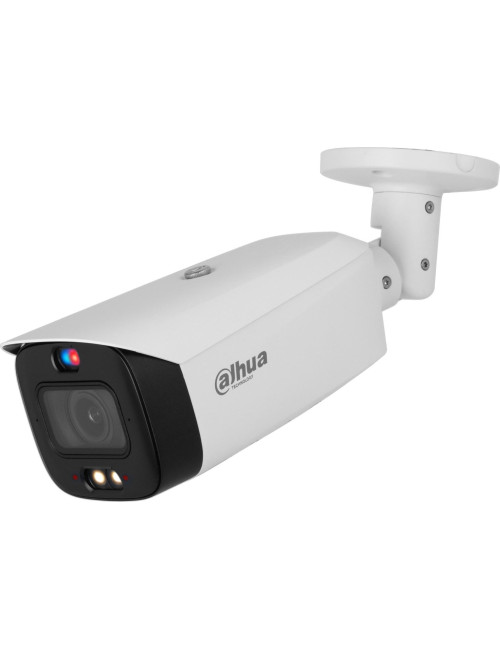

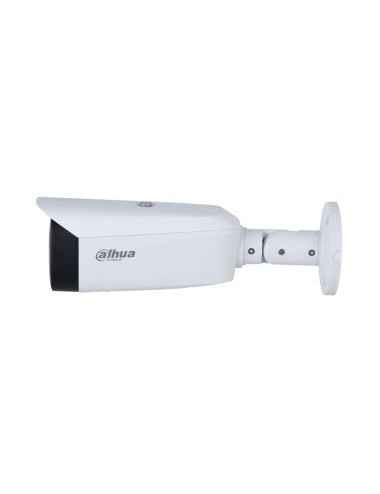

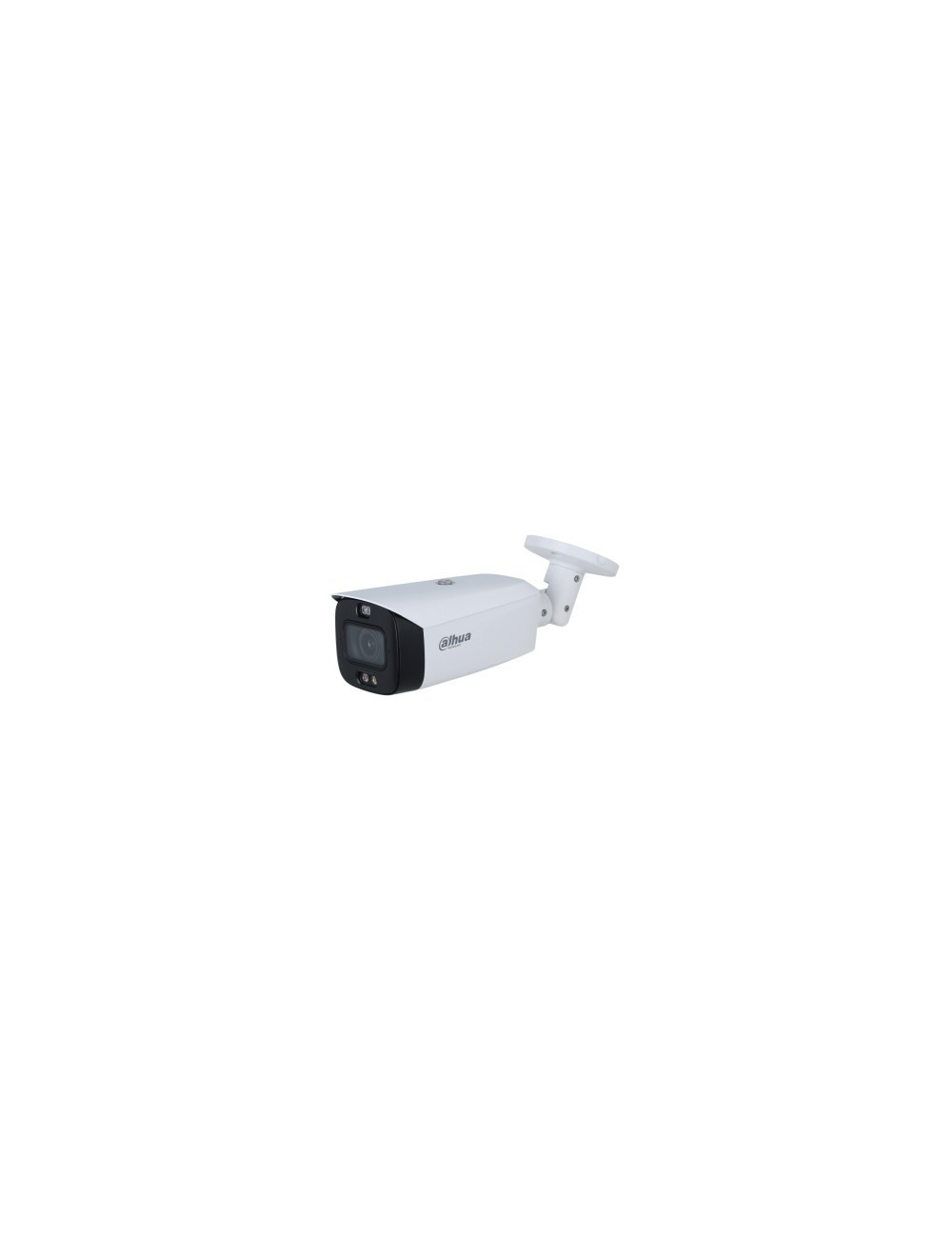

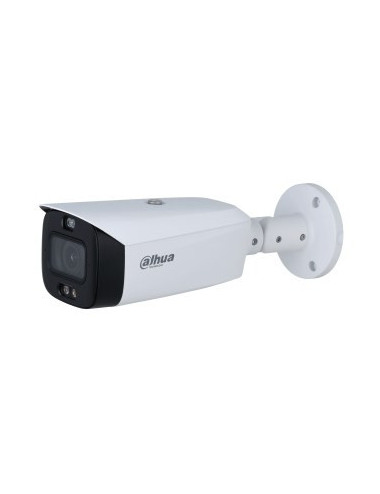

Dahua IP Camera TIOC 3.0 IPC-HFW3849T1-ZAS-PV-27135-S5

Product Details

Reference WLONONWCRFWKF

In stock 47 Items

Data sheet

Type

IP security camera

Width

94.4 mm

Height

84.7 mm

Connectivity technology

Wired

Weight

1.05 kg

Package weight

1.35 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Bluetooth

No

Bit rate

3 kbps–8192

Noise reduction

Yes

Mobile operating systems supported

Android

Length

288.4 mm

Sensor type

CMOS

Wi-Fi

No

Internal memory

1000 MB

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Power consumption (max)

7.9 W

Maximum resolution

3840 x 2160 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

Housing material

Plastic

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported graphics resolutions

640 x 480 (VGA)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

20 user(s)

Quality of Service (QoS) support

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Focal length range

2.7 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

White balance

Outdoor

Minimum illumination

0.004 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

130°

Video compression formats

H.264B

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

50 m

Number of lenses

1

Day/night mode

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

56°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.2

Lens viewing angle, horizontal

108°

Number of sensors

1

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion

ROM capacity

128 MB

Camera shutter speed

1/3 – 1/100,000

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

2

Power consumption (Power over Ethernet (PoE))

9.8 W

Streaming method

Multicast

Identify distance (wide)

19 m

Recognize distance (wide)

18 m

Audio input channels

1.0 channels

Observe distance (wide)

36 m

Closest focusing distance

1.5 m

Detect distance (wide)

89.9 m

Identify distance (tele)

25.7 m

Recognize distance (tele)

51.5 m

Detect distance (tele)

257.4 m

Observe distance (tele)

103 m

Warnings

Avoid direct contact with water to prevent electrical damage.
