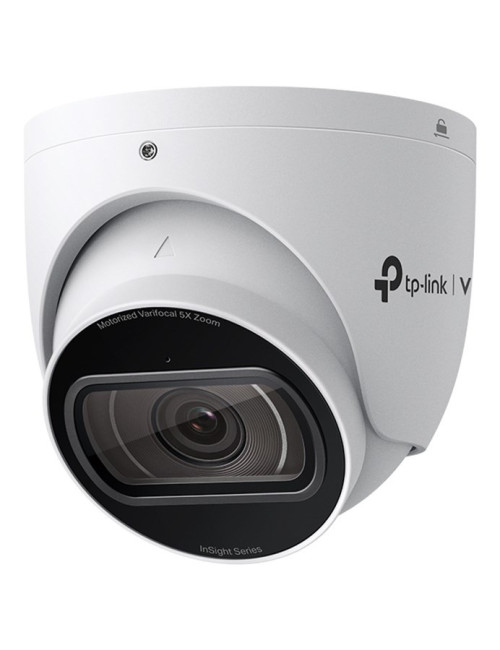

TP-LINK TPLINK IP Camera InSight S445ZI INSIGHT S445ZI

Product Details

Reference WLONONWCRMODX

In stock 19 Items

Data sheet

Type

IP security camera

Package type

Box

Height

92.5 mm

Connectivity technology

Wired

Weight

710 g

Package weight

960 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Turret

Built-in microphone

Yes

Bluetooth

No

Sample rate

8 kHz

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps

Noise reduction

Yes

Protection features

Waterproof

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio system

2-way

Audio formats supported

G.711 A-law

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10.8 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Audio output channels

1.0 channels

DC-in jack

Yes

Housing material

Metal

Networking standards

IEEE 802.3at

Ethernet LAN

Yes

Focus

Motorized

Supported graphics resolutions

2688 x 1520

Zoom capability

Yes

Diameter

11.2 cm

International Protection (IP) code

IP67

Auto focus

Yes

Optical Zoom

5x

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Reset button

Yes

Password protection

Yes

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 77°

Focal length range

2.7 - 13.5 mm

Web browser

Yes

Number of microphones

1

Video recording

Yes

Screws included

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Motion sensor

Yes

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

34.1–122.8

Video compression formats

H.265+

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

60 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Lens viewing angle, vertical

16.8–53.8

Noise reduction technology

3D noise reduction

Smart IR

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

29.6–102

Infra-red wavelength

850 nm

Built-in siren

Yes

Alert notification type

Push notification

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Weatherproof

Yes

IP address filtering

Yes

Camera shutter speed

1/3 to 1/10000

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

4

Live view

Yes

Cloud-managed

Yes

Power consumption (Power over Ethernet (PoE))

12 W

HTTPS encryption

Yes

Image quality adjustment

Brightness

Digest authentication

Yes

Number of simultaneous live view channels

6 channels

Identify distance (wide)

7 m

Recognize distance (wide)

13 m

Audio input channels

1.0 channels

Observe distance (wide)

28 m

Detect distance (wide)

66 m

Identify distance (tele)

21 m

Human and vehicle targets classification

Yes

Drilling template included

Yes

Recognize distance (tele)

41 m

Detect distance (tele)

207 m

Observe distance (tele)

86 m

Bit rate range

0 - 64 Kbit/s

Alarm output channels

1

Alarm input channels

1

Number of Privacy masking areas

4
