APC

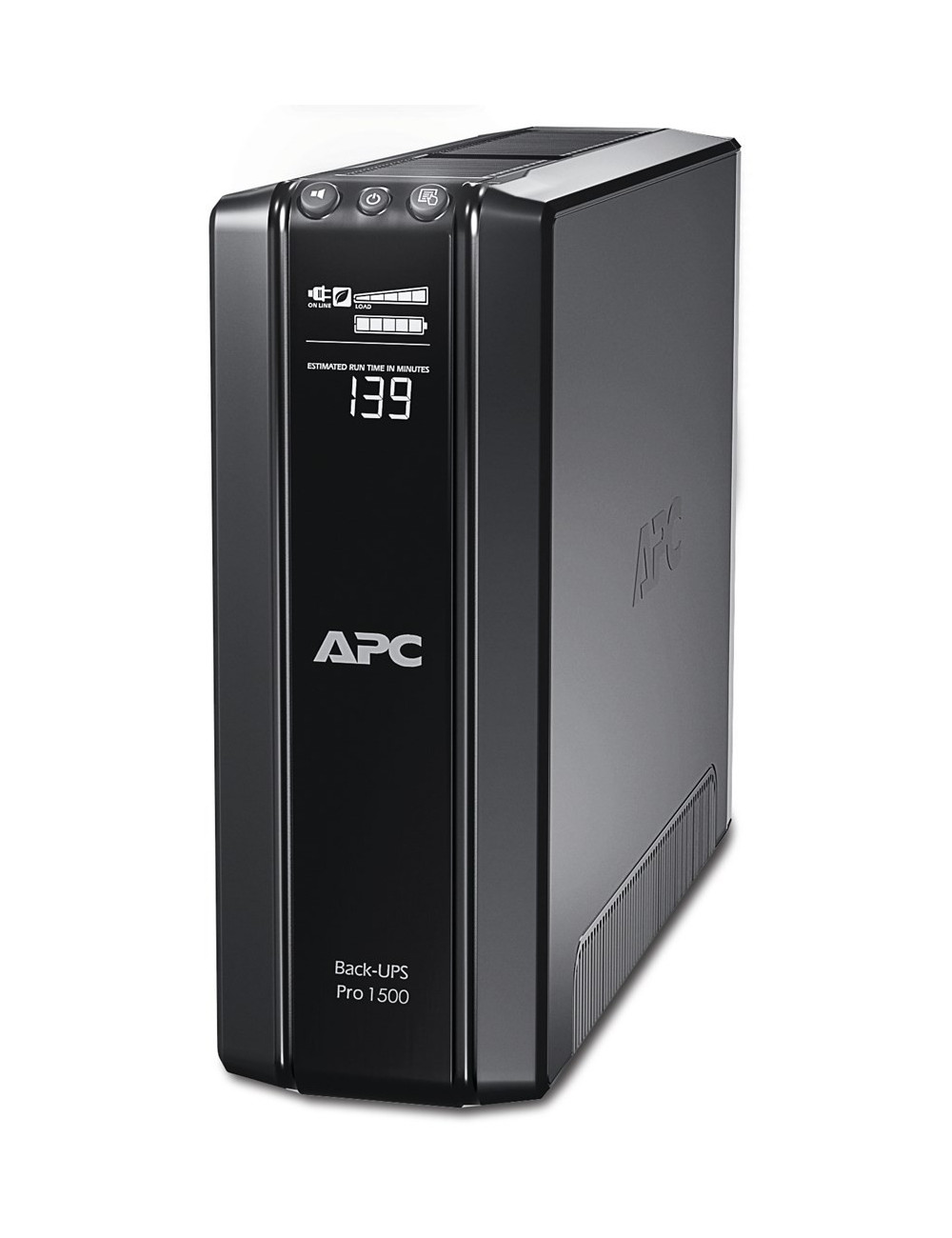

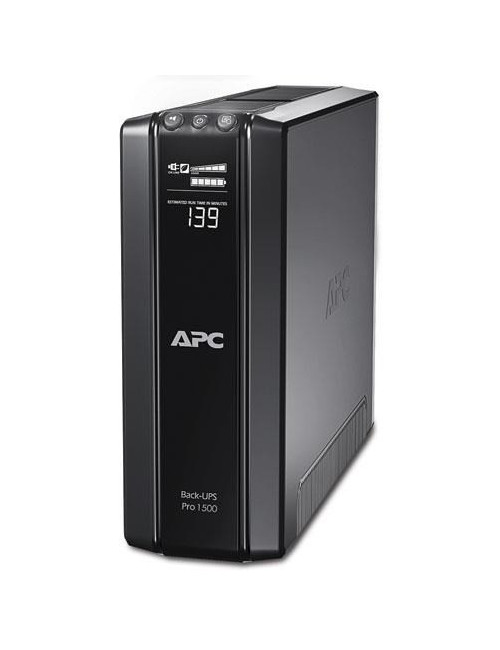

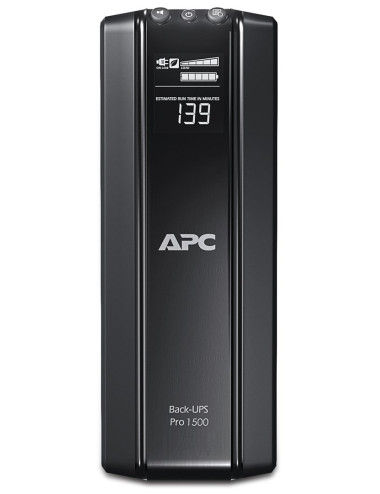

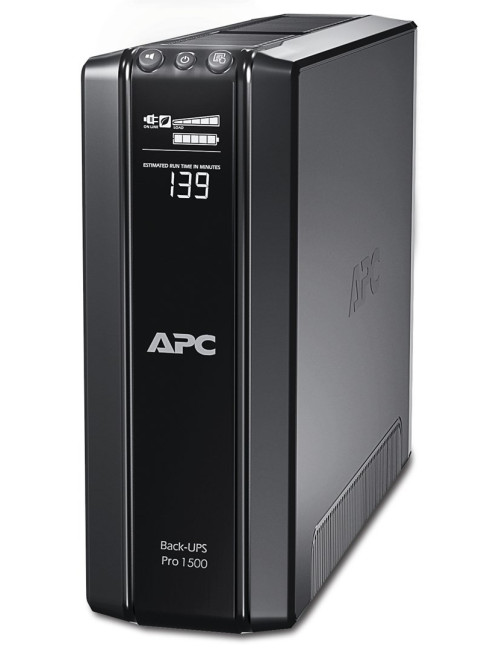

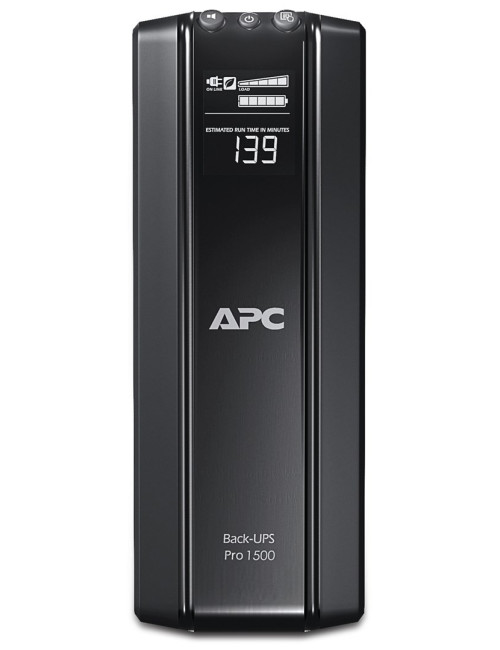

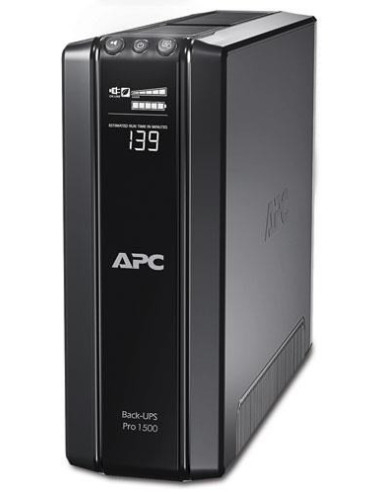

    APC USV BR1500GI BACKUPS Pro 1500 230V

    €569.16
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRGK79
    3 Items

    Data sheet

    Width
    112 mm
    Height
    301 mm
    Depth
    380 mm
    Weight
    12.7 kg
    Package depth
    488 mm
    Package height
    387 mm
    Package width
    238 mm
    Package weight
    14.3 kg
    Cables included
    Phone (RJ-11), USB cable
    Storage relative humidity (H-H)
    0 - 95%
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 40 °C
    USB port
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    5 year(s)
    Battery capacity
    187 VAh
    Battery recharge time
    8 h
    Output power
    865 W
    Input frequency
    50/60 Hz
    Display type
    LCD
    Efficiency
    98.9%
    Input operation voltage (min)
    156 V
    Cold start
    Yes

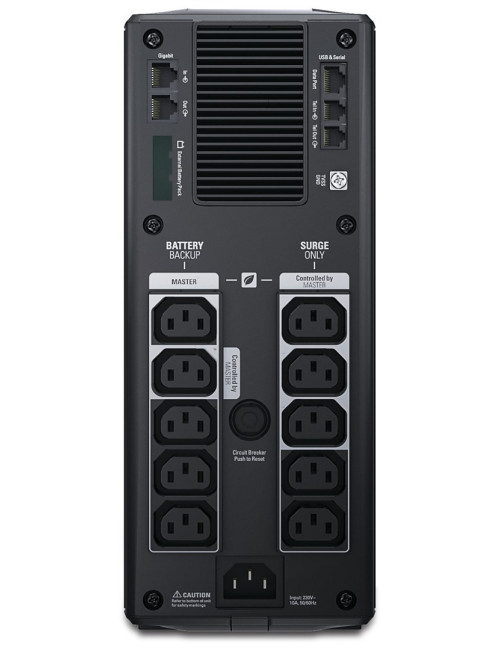

    AC outlets quantity
    10 AC outlet(s)
    Output power capacity
    1.5 kVA
    Waveform
    Sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Audible alarm(s)
    Yes
    UPS topology
    Line-Interactive

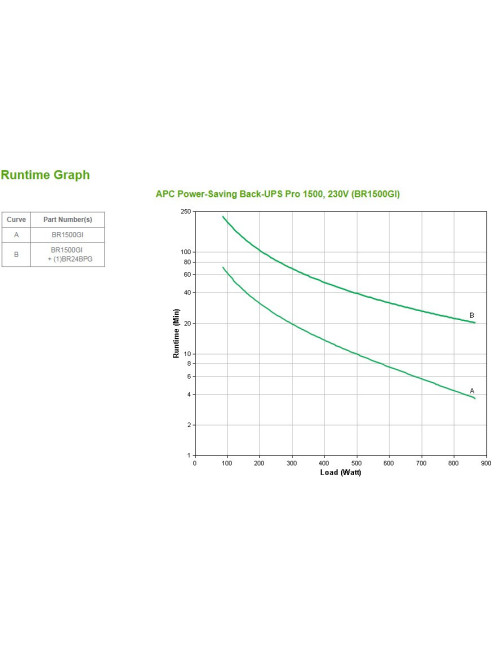

    Typical backup time at full load
    3.7 min
    Warranty card
    Yes
    Automatic Voltage Regulation (AVR)
    Yes
    Automatic battery test
    Yes
    Typical backup time at half load
    12.4 min
    Surge protection
    Yes
    Nominal input voltage
    230 V
    Nominal output voltage
    230 V
    Output frequency regulation
    50/60 Hz
    Operating altitude
    0 - 9000 m
    Noise Level
    45 dB
    Surge energy rating
    441 J
    Power plug
    C14 coupler
    Non-operating altitude
    0 - 15000 m
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Sustainability certificates
    ENERGY STAR
    Products per pallet
    20 pc(s)
    Software CD
    Yes
    Products per master (outer) case
    1 pc(s)
    Hot-swap battery
    Yes
    Compliance certificates
    RoHS
    Audible alarm modes
    Low battery alarm, Overload alarm
    Hold time (max)
    12 ms
    Hold time (min)
    10 ms
    Surge protection features
    Network
    Number of output IEC jumpers
    2
    Replacement battery cartridge
    APCRBC124
    Crest factor
    3:1
