EATON

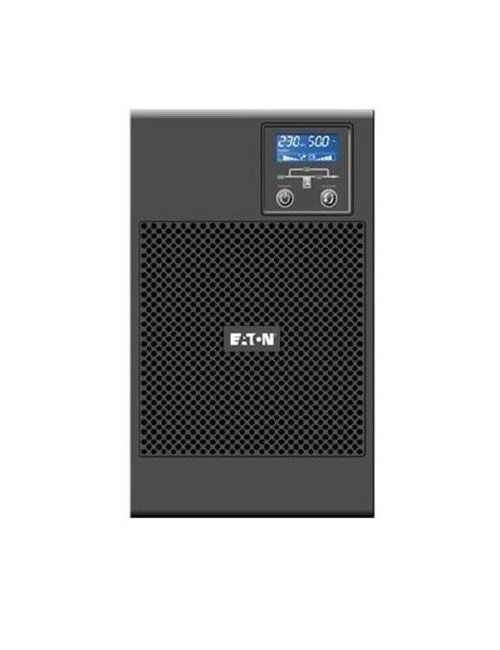

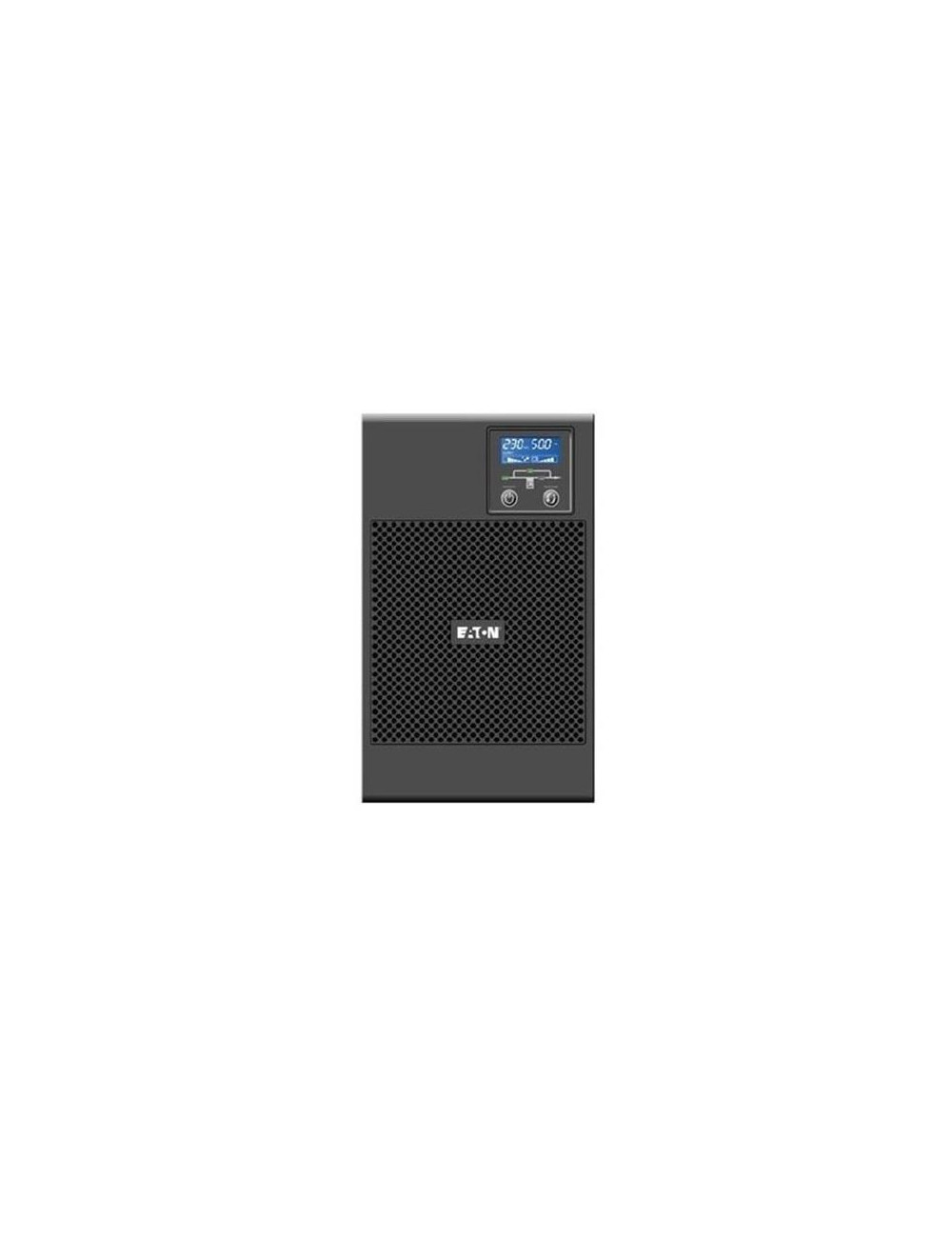

UPS|EATON|1600 Watts|2000 VA|OnLine DoubleConvertion|Desktop/pedestal|9E2000I

€757.73

Tax included

1600 Watts | 2000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

Product Details

Reference 9E2000I

In stock 3 Items

Data sheet

Garantija: 24
Category Code: UPW
Unit Box Height: 0.46
Unit Box Length: 0.495
Unit Box Width: 0.33
Vendor Homepage: powerquality.eaton.com/9E2000I.aspx?cx 61
Dimensions: 399 x 330 x 190 mm
Mounting Type (Desktop/pedestal): Yes
Units per Shipping Box: 1
Product Net Weight: 22.4 kg
Unit Calculated Weight: 23.1 kg
Unit Calculated Volume: 0.07514 cubm
Output power capacity, W: 1600 Watts
Output power capacity, VA: 2000 VA
Topology: OnLine DoubleConvertion
Input ports: Single, IEC320 C14
Output power connector type: IEC 320 C13
Communication ports (USB): 1
Communication ports (RS232): 1

Quick Compare

Product	APC Smart-UPS SMT1000IC – 8x C13, USB, SmartConnect, 1000VA	CyberPower OLS3000EA-DE uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)	Infosec E4 Value 3000 uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 4 AC outlet(s)
Availability
Price	€752.04	€757.74	€766.72
Description
Cable length		1.5 m
Width	171 mm	196 mm	190 mm
Height	219 mm	337 mm	421 mm
Depth	439 mm	416 mm	335 mm
Weight	18.9 kg	21.3 kg	25.2 kg
Package height	376 mm	458 mm
Package width	328 mm	295 mm
Number of batteries supported		3
Cables included	RJ-45, USB cable	Power load cable, USB cable	Input power cable, Output power cable, RS-232
Storage relative humidity (H-H)	0 - 95%	10 - 90%
Manual			Yes
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%	20 - 90%	20 - 90%
Storage temperature (T-T)	-15 - 45 °C	-20 - 50 °C
Form factor	Mini tower	Tower	Tower
USB port	Yes	Yes
LED indicators	Yes	Fault
Battery technology	Sealed Lead Acid (VRLA)	Sealed Lead Acid (VRLA)	Sealed Lead Acid (VRLA)
Battery life (max)	5 year(s)
Battery capacity			9 Ah
Battery recharge time	3 h	4 h	4 h
Output power	700 W	2700 W	2400 W
Input frequency	50/60 Hz	50/60 Hz	40/70 Hz
USB 2.0 ports quantity	1
Response time	10 ms	0 ms	4 ms
Display type	LCD	LCD	LED
Ethernet LAN (RJ-45) ports	1
Efficiency			90%
Input operation voltage (min)	151 V	190 V	100 V
Power protection features		Overload
Cold start	Yes
AC outlets quantity	8 AC outlet(s)	7 AC outlet(s)	4 AC outlet(s)
Output power capacity	1 kVA	3 kVA	3 kVA
Output operation voltage (max)	240 V	240 V	240 V
Waveform	Sine	Pure sine	Pure sine
Auto-restart	Yes
AC outlet types	IEC Jumpers	C13 coupler	C13 coupler
Input operation voltage (max)	302 V	230 V	240 V
Audible alarm(s)	Yes	Yes	Yes
Battery voltage			12 V
Output operation voltage (min)	220 V	208 V	100 V
UPS topology	Line-Interactive	Double-conversion (Online)	Double-conversion (Online)
Typical backup time at full load		4.2 min	30 min
Automatic Voltage Regulation (AVR)	Yes
Automatic battery test	Yes
Housing material		Metal
Typical backup time at half load		13.1 min	10 min
Surge protection	Yes	Yes
Output voltage regulation			-1 - 1%
Operating altitude	0 - 3000 m	0 - 1500 m
Serial interface type			RS-232
Quick installation guide	Yes
Output frequency	50/60 Hz	50/60 Hz	47/63 Hz
Noise Level	41 dB		50 dB
Serial ports quantity	1		1
Maximum current		13.04 A	10 A
Surge energy rating	459 J	370 J
Power plug	C14 coupler
Non-operating altitude	0 - 15000 m	0 - 1500 m
Product colour	Black	Black	Black
Harmonized System (HS) code	85078000	8504408590
Sustainability certificates	Green Premium
Serial interface	Yes		Yes
ECO mode			Yes
USB port type	USB Type-A
Charging current		1.5 A	1 A
Output voltage Total Harmonic Distortion (THD)	5%	5%	6%
Hot-swap battery	Yes
Compliance certificates	RoHS		RoHS
Total carbon footprint (kg of CO2e)	984.74
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm	Battery replacement, Fault, Low battery alarm, Overload alarm	Alarm when on battery, Fault, Overload alarm, Low battery alarm
Power factor		0.9	0.8
Temperature voltage compensation	Yes
SmartSlot	Yes
Replacement battery cartridge	RBC6
Crest factor		3:1	3:1
EMI/RFI noise filtering		Yes
Input power factor		0.98	0.99
Built-in fan		Yes
Number of input phases			1
Efficiency (ECO mode)		95%
Warnings		Keep away from sources of fire and water.
