DIGITUS

    Digitus | OnLine UPS | OnLine UPS Module DN-170107, 10000VA/10000W 2U LCD, LED, Pure Sine Wave, 86.5 x 440 mm x 620 mm, 18kg |

    €1,053.41
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    DIGITUS
    WLONONWCRATES
    4 Items

    Data sheet

    Width
    440 mm
    Height
    86.5 mm
    Depth
    620 mm
    Weight
    18 kg
    Package width
    615 mm
    Number of batteries supported
    20
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C

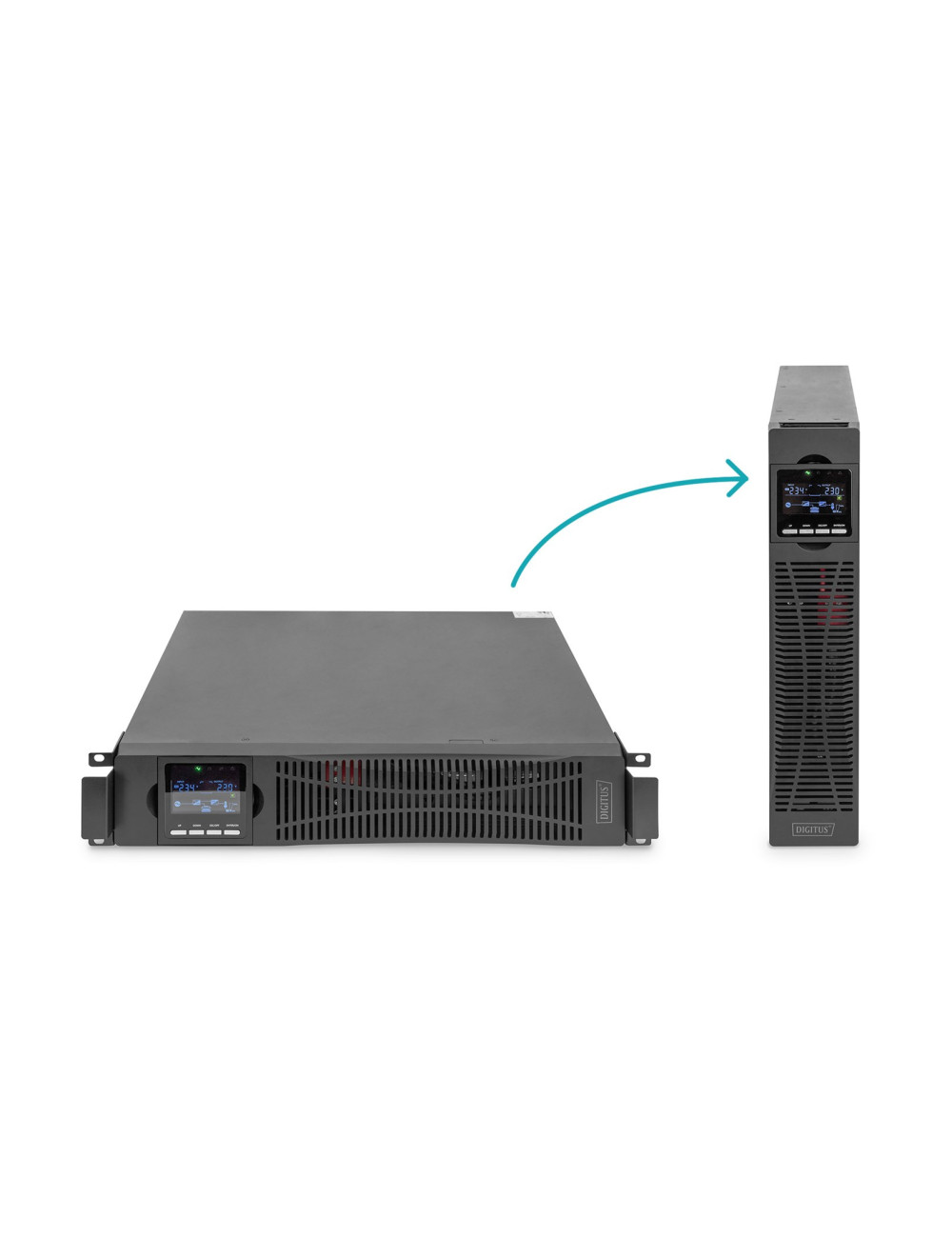

    Form factor
    Rackmount/Tower
    USB port
    Yes
    Battery recharge time
    8 h
    Cooling type
    Active
    Output power
    10000 W
    Input frequency
    45/66 Hz
    USB 2.0 ports quantity
    1
    Response time
    20 ms
    Display type
    LCD + LED
    Efficiency
    93.5%
    Input operation voltage (min)
    120 V
    Cold start
    Yes
    Output power capacity
    6 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Pure sine
    Input operation voltage (max)
    276 V
    Output operation voltage (min)
    208 V
    UPS topology
    Double-conversion (Online)
    Housing material
    Metal
    Output frequency regulation
    1 Hz
    Output voltage regulation
    5%
    International Protection (IP) code
    IP20
    Output frequency
    50/60 Hz
    Noise Level
    55 dB
    Power plug
    Hardwire
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    ECO mode
    Yes
    Package volume
    100682 cm³
    USB port type
    USB Type-B
    Charging current
    1 A
    Output voltage Total Harmonic Distortion (THD)
    5%
    Hot-swap battery
    Yes
    UK Trade Tariff code
    85044086
    Size (imperial)
    48.3 cm (19")
    Power factor
    0.99
    Crest factor
    3:1
    Emergency Power Off (EPO)
    Yes
    Rack capacity
    2U
    Emergency Power Off (EPO) connector
    Yes
    Built-in fan
    Yes
    Number of input phases
    1
    Number of output phases
    1
    Input current Total Harmonic Distortion (THD)
    5%
