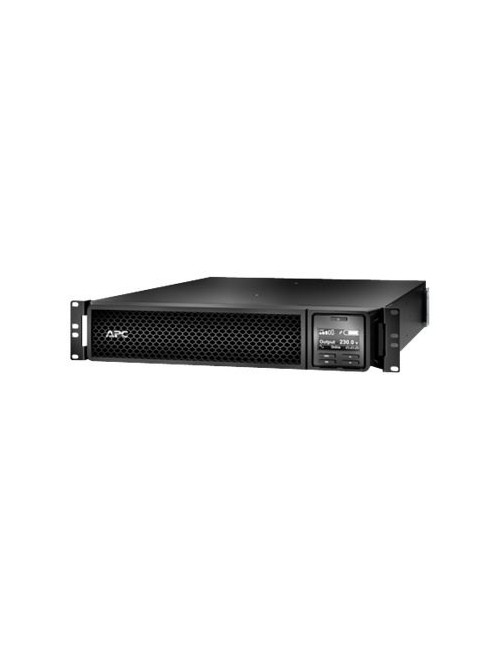

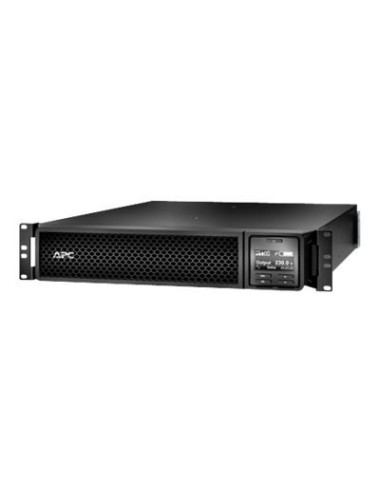

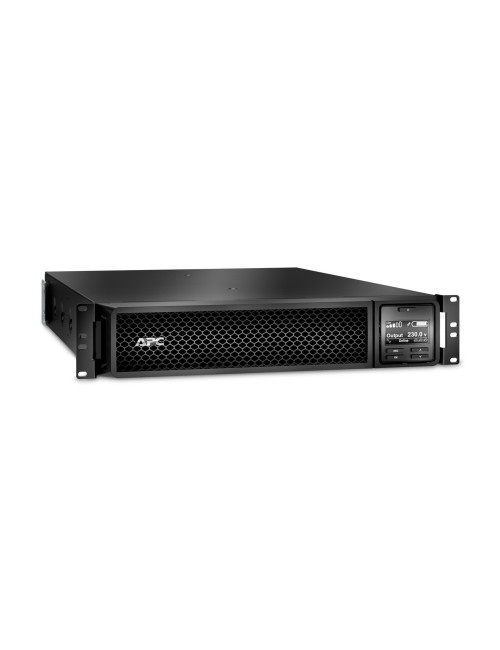

APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount

Product Details

Reference ZSIAPCUPS0177

In stock 194 Items

Data sheet

Cable length

2.44 m

Width

432 mm

Height

85 mm

Depth

635 mm

Weight

31.3 kg

Package height

246 mm

Package width

599 mm

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

Form factor

Rackmount

USB port

Yes

LED indicators

Battery replacement

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery capacity

505 VAh

Battery recharge time

3 h

Output power

2700 W

Input frequency

40 - 70 Hz

Output voltage

230 V

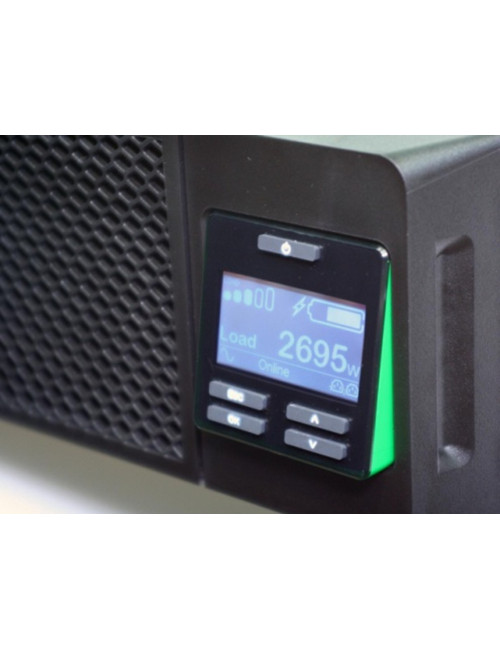

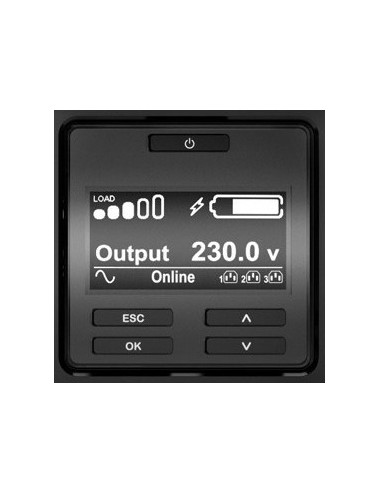

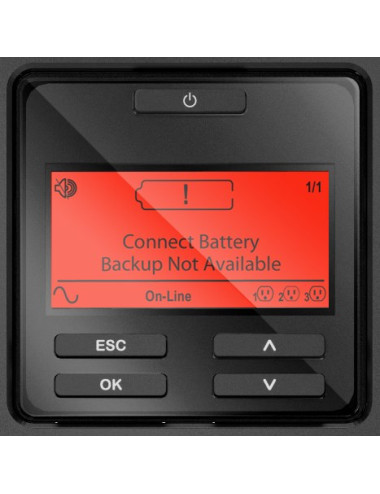

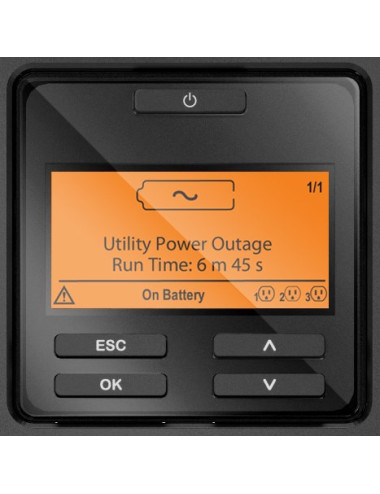

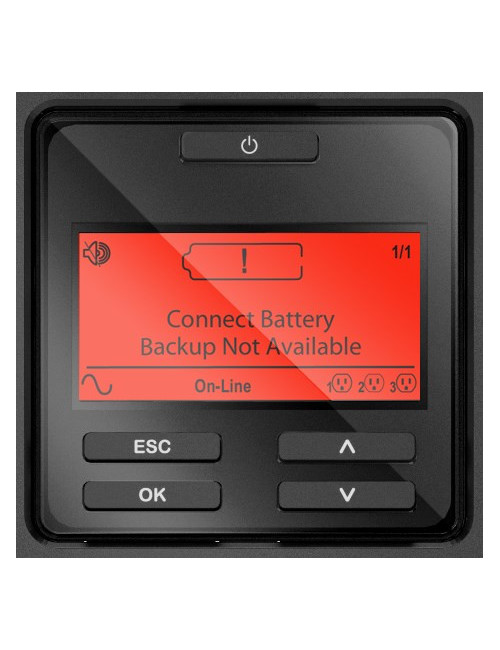

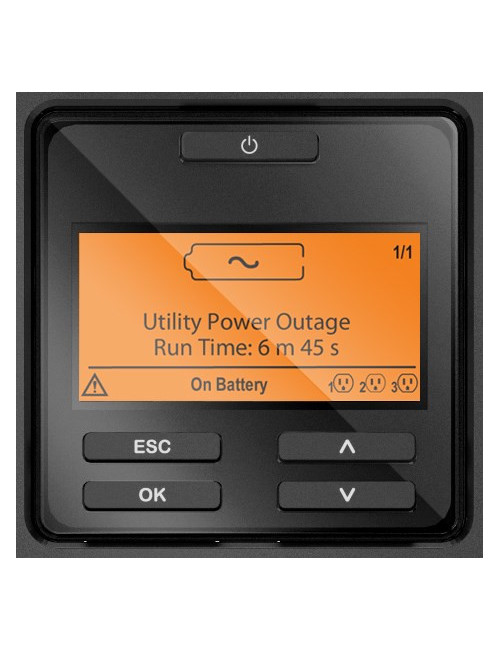

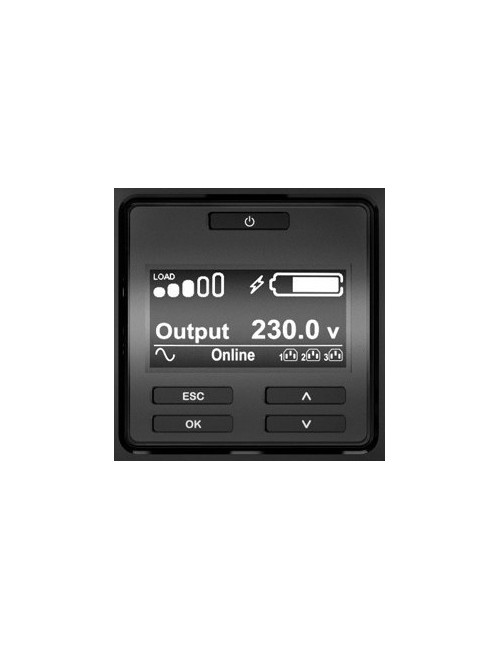

Display type

LCD

Efficiency

92%

Input operation voltage (min)

100 V

Power protection features

Overload

Cold start

Yes

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

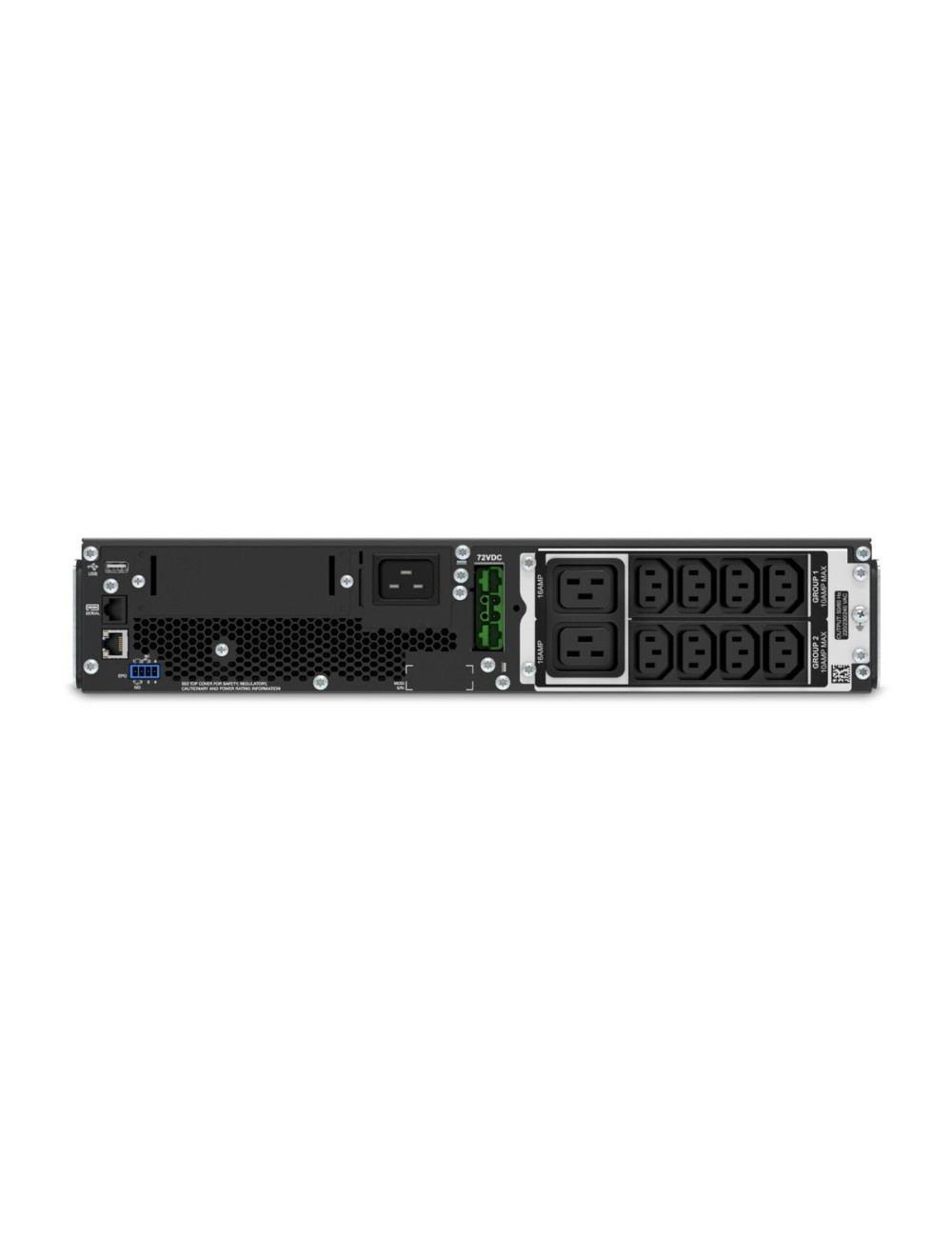

AC outlet types

C19 coupler

Input operation voltage (max)

275 V

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

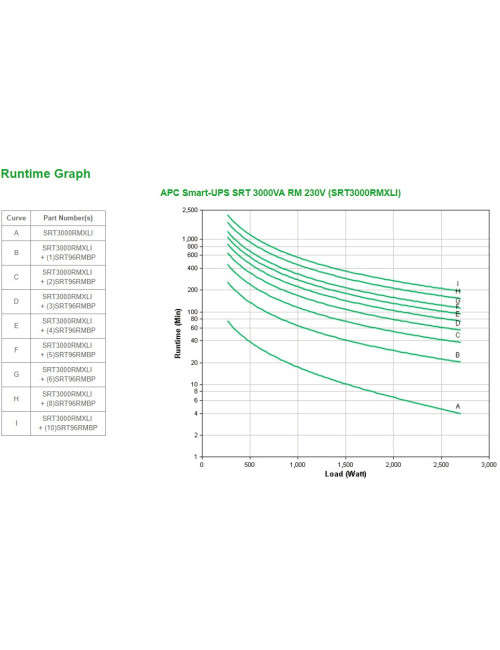

Typical backup time at full load

4 min

Automatic Voltage Regulation (AVR)

Yes

Automatic battery test

Yes

Typical backup time at half load

11.8 min

Surge protection

Yes

Operating altitude

0 - 3000 m

International Protection (IP) code

IP20

Serial interface type

RJ-45

Quick installation guide

Yes

Output frequency

50/60 Hz

Noise Level

55 dB

Surge energy rating

340 J

Power plug

C20 coupler

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Serial interface

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Hot-swap battery

Yes

Compliance certificates

RoHS

Audible alarm modes

Battery replacement

SmartSlot

Yes

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Rack capacity

2U
