Product Details
Data sheet
- Cable length
- 1.5 m
- Width
- 98 mm
- Height
- 138 mm
- Depth
- 310 mm
- Weight
- 4.2 kg
- Package height
- 222 mm
- Package width
- 142 mm
- Storage relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 40 °C
- Form factor
- Tower
- LED indicators
- Battery replacement
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 8 h
- Output power
- 300 W
- Input frequency
- 50/60 Hz
- Ethernet LAN (RJ-45) ports
- 2
- Efficiency
- 96.1%
- Input operation voltage (min)
- 140 V
- AC outlets quantity
- 3 AC outlet(s)
- Output power capacity
- 0.5 kVA
- Waveform
- Sine
- AC outlet types
- C13 coupler
- Input operation voltage (max)
- 300 V
- Audible alarm(s)
- Yes
- Battery voltage
- 12 V
- UPS topology
- Line-Interactive
- Cabling technology
- 10/100/1000Base-T(X)
- Automatic Voltage Regulation (AVR)
- Yes
- Automatic battery test
- Yes
- Surge protection
- Yes
- Operating altitude
- 0 - 3000 m
- International Protection (IP) code
- IP20
- Output frequency
- 50/60 Hz
- Noise Level
- 40 dB
- Surge energy rating
- 273 J
- Power plug
- C14 coupler
- Non-operating altitude
- 0 - 3000 m
- Product colour
- Black
- Harmonized System (HS) code
- 85078000
- Sustainability certificates
- RoHS
- Compliance certificates
- RoHS
- Audible alarm modes
- Alarm when on battery, Low battery alarm
- Number of output IEC jumpers
- 1
- Input power factor
- 0.63
Quick Compare
Product |

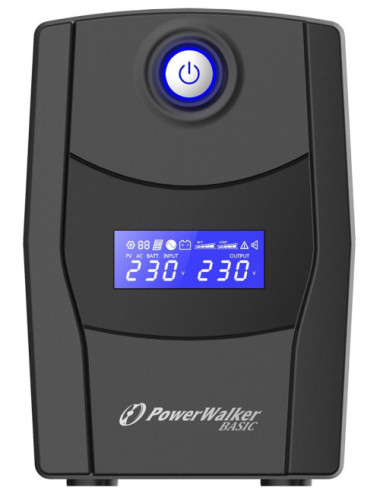

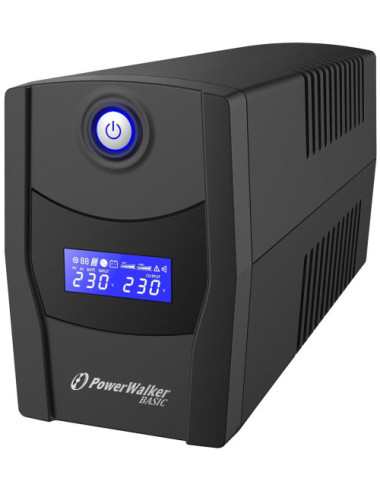

PowerWalker VI 800 SCL FR Line-Interactive 0.8 kVA 480 W 2 AC outlet(s) | Qoltec 53775 Uninterruptible power supply Line Interactive | Monolith | 1200VA | 720W | UPS ORVALDI 750SP USB LINE-INTERACTIVE | Emergency power supply Armac UPS HOME LINE-INTERACTIVE H/1000E/LED |
