APC

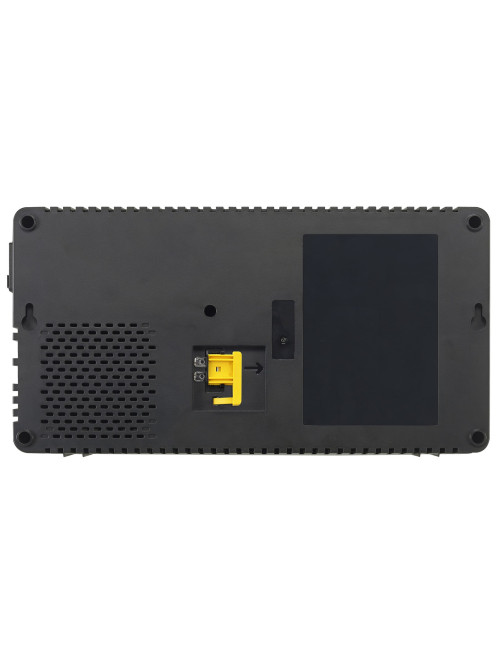

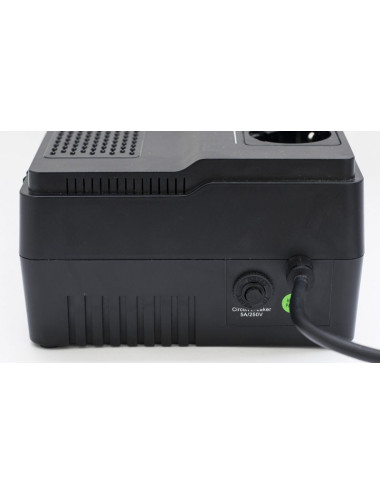

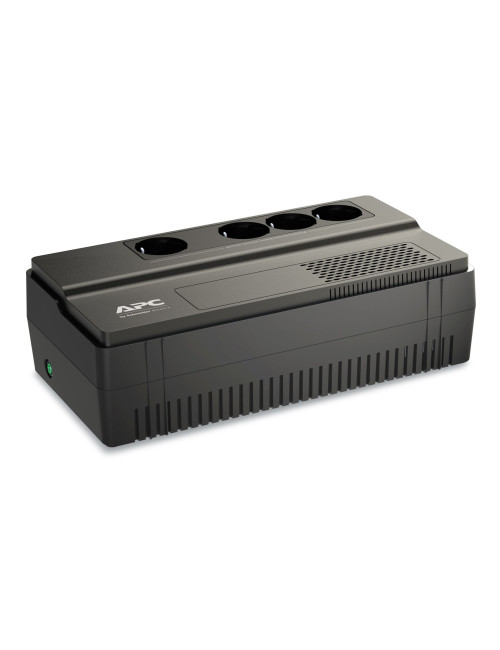

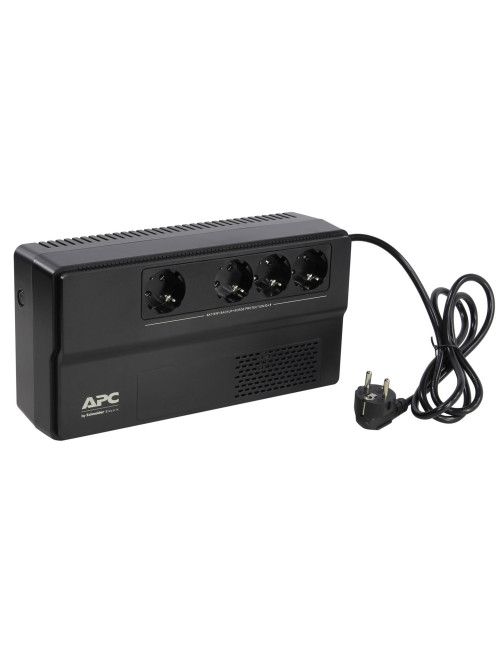

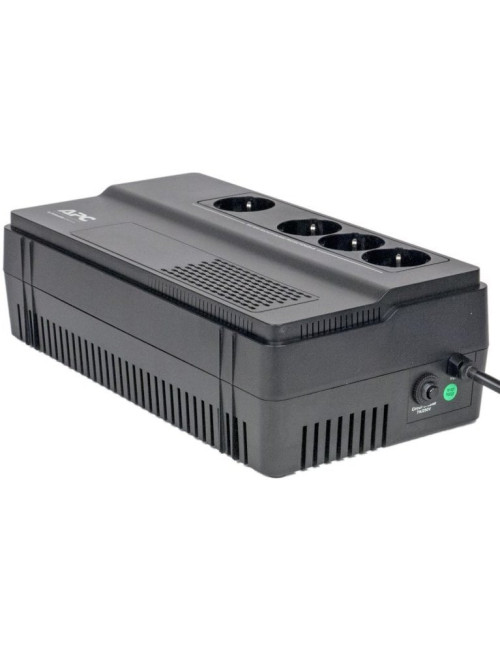

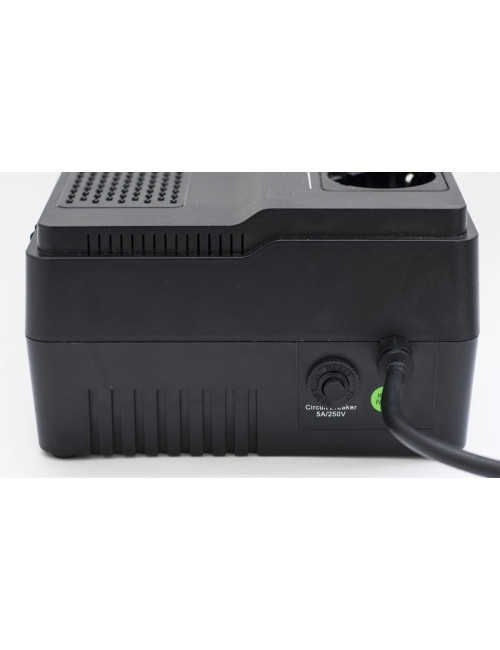

APC BV500I-GR uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 4 AC outlet(s)

€79.64

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCRBGDI

In stock 15 Items

Data sheet

Cable length: 1.52 m
Width: 160 mm
Height: 92 mm
Depth: 305 mm
Weight: 3.9 kg
Package depth: 143 mm
Package height: 237 mm
Package width: 373 mm
Package weight: 4.2 kg
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Form factor: Compact
LED indicators: Yes
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 4.5 Ah
Battery recharge time: 8 h
Output power: 300 W
Input frequency: 50/60 Hz
Input operation voltage (min): 170 V
Cold start: Yes
AC outlets quantity: 4 AC outlet(s)
Output power capacity: 0.5 kVA
Waveform: Sine
AC outlet types: Type F
Input operation voltage (max): 280 V
Audible alarm(s): Yes
Battery voltage: 12 V
UPS topology: Line-Interactive
Automatic Voltage Regulation (AVR): Yes
Surge protection: Yes
Nominal output voltage: 230 V
Operating altitude: 0 - 1968.3 m
Output frequency: 50/60 Hz
Noise Level: 40 dB
Surge energy rating: 156 J
Product colour: Black
Harmonized System (HS) code: 85078000
Compliance certificates: RoHS
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
SmartSlot: No
Number of input phases: 1
Number of output phases: 1
Transfer time (Line Mode to Battery Mode): 6 ms
Management card included: No
SmartConnect port: No

Quick Compare

Product	UPS\|EATON\|360 Watts\|700 VA\|Wave form type Pure sinewave\|LineInteractive\|Phase 1phase\|Desktop/pedestal\|5E700I	PowerWalker 10121070 uninterruptible power supply (UPS) Line-Interactive 850 VA 480 W 2 AC outlet(s)	PowerWalker VI 650 SH FR uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 360 W 2 AC outlet(s)	Eaton UPS 5E Gen2 700D DIN 700 VA, 360 W, Tower, Line-Interactive
Availability
Price	€67.95	€68.06	€69.27	€70.14
Description	360 Watts \| 700 VA \| Wave form type Pure sinewave \| Topology LineInteractive \| Phase 1phase \| Output power connector type IEC 320 C13 \| Colour Black			Eaton UPS 5E Gen2 700D DIN 700 VA, 360 W, Tower, Line-Interactive
Colour of product				Black
Warranty				24 month(s)
Producer product name				5E Gen2 700D DIN
Net weight				4.30 kg
Gross weight				4.84 kg
WEEE tax				Yes
Packing quantity				1.00 pc(s)
Volume (m3)				0.01 m
Tare weight (kg)				0.54 kg
Gross depth (mm)				305.00 mm
Gross width (mm)				198.00 mm
Gross height (mm)				105.00 mm
WEE classification				CL109:5:2017-04-01
Paper/Pasteboard				500.00 g
Embeeded battery				Yes
Colour	Black
TI weight (kg)				1.30 kg
Width		84 mm	100 mm
Height		158 mm	143 mm
Depth		252 mm	290 mm
Plastic (No PET)				40.00 g
Composition of battery				CL127:KT:2016-12-09
Classification of battery				CL126:NE:2016-12-09
Type of battery				Accumulator
Weight		4.2 kg	4.4 kg
Producer product family				UPS
Package depth			330 mm
Package height		225 mm	223 mm
Package width		122 mm	140 mm
Number of batteries supported		1	1
Cables included			USB cable
Manual		Yes	Yes
Operating temperature (T-T)		0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)		0 - 95%	0 - 90%
Form factor			Mini tower	Tower
USB port		Yes	Yes
LED indicators			Yes
Battery capacity		6 Ah	7 Ah
Capacity				360 W
Palette Qty				207 pc(s)
Battery recharge time		8 h
Output power		480 W	360 W
Input frequency		50/60 Hz	50/60 Hz
USB 2.0 ports quantity			1
Garantija	24
Category Code	UPW
Unit Box Height	0.235
Unit Box Length	0.36
Unit Box Width	0.195
Vendor Homepage	www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
Dimensions	288 x 148 x 100mm
Efficiency		96.4%	95%
Input operation voltage (min)		162 V	170 V
Power protection features		Overload
AC outlets quantity		2 AC outlet(s)	2 AC outlet(s)
Output power capacity		850 kVA	0.65 kVA
Output operation voltage (max)		230 V	230 V
AC outlet types			Type E
Input operation voltage (max)		290 V	280 V
Battery voltage		12 V	12 V
Output operation voltage (min)		230 V
UPS topology		Line-Interactive	Line-Interactive	Line-Interactive
Typical backup time at full load			0.1 min
Automatic Voltage Regulation (AVR)			Yes
Typical backup time at half load		4.5 min	6 min
Output frequency regulation		1 Hz
Output voltage regulation			10%
MODEL	5E700I
Mounting Type (Desktop/pedestal)	Yes
Product colour		Black	Black
Harmonized System (HS) code			85078000
Products per pallet			128 pc(s)
Software CD			Yes
Products per master (outer) case			4 pc(s)
Master (outer) case height			250 mm
Master (outer) case length			598 mm
Master (outer) case width			380 mm
Output power factor		0.56	0.55
Battery recharge time (90%)			4 h
Units per Shipping Box	1
Product Net Weight	4.3 kg
Unit Calculated Weight	5.1 kg
Unit Calculated Volume	0.016497 cubm
Output power capacity, W	360 Watts
Output power capacity, VA	700 VA
Wave form type	Pure sinewave
Topology	LineInteractive
Phase	1phase
Output power connector type	IEC 320 C13
Buttons: (On/Off)	YES
