EATON

UPS|EATON|520 Watts|650 VA|Wave form type Sinewave|LineInteractive|Phase 1phase|5P650IRNG2

€761.09

Tax included

Quantity

Last items in stock

Add to favorites Add to compare

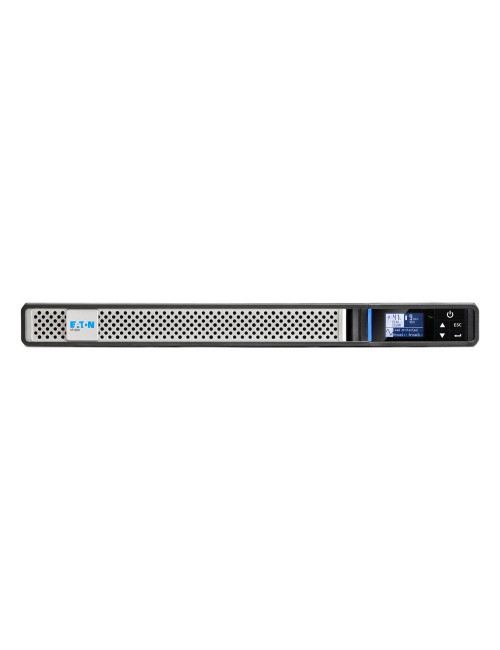

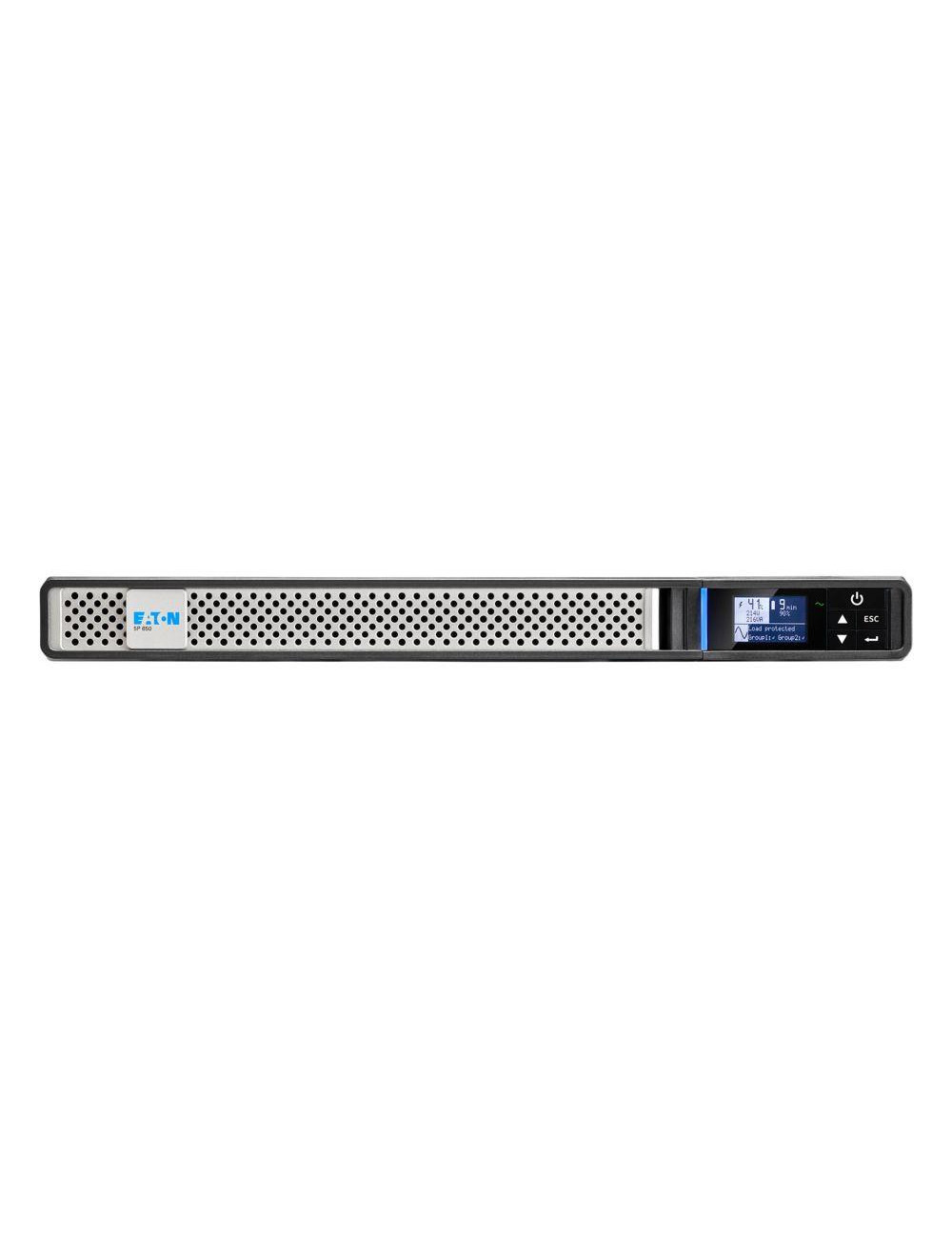

Eaton 5P Gen2 UPS, 650 VA, 520 W, Input: C14, Outputs: (4) C13, Rack, 1U, Network cardAutomatic Voltage Regulation (AVR)

High-density protection for networks: 1U only
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Brightlayer Software suite
1 USB port + 1 serial port
Advanced Battery Management (ABM+) technology to increase battery lifetime and improve life time prediction accuracy
Next-generation graphical LCD display
Hot swappable batteries
Remote reboot and runtime optimization thanks to 2 manageable outlet groups
Network card included

Product Details

Reference 5P650IRNG2

In stock 1 Item

Data sheet

Colour: Black / Silver
Garantija: 24
Category Code: UPW
Unit Box Height: 0.17
Unit Box Length: 0.585
Unit Box Width: 0.45
Vendor Homepage: https://www.eaton.com/ua/en-gb/skuPage.5P650IRNG2.html
Included Accessories: Rack-mounting kit Cable locking system USB cable (2) IEC-IEC cables Quickstart guide Safety instructions Network card
Dimensions: 361 x 43.2 x 438 mm
MODEL: 5P650IRNG2
Mounting Type (Rack 1U): Yes
Units per Shipping Box: 1
Product Net Weight: 8.68 kg
Unit Calculated Weight: 11.3 kg
Unit Calculated Volume: 0.04475 cubm
Output power capacity, W: 520 Watts
Output power capacity, VA: 650 VA
Typical runtime at full load: 1 min
Typical runtime at half load: 7 min
Wave form type: Sinewave
Topology: LineInteractive
Phase: 1phase
