Qoltec

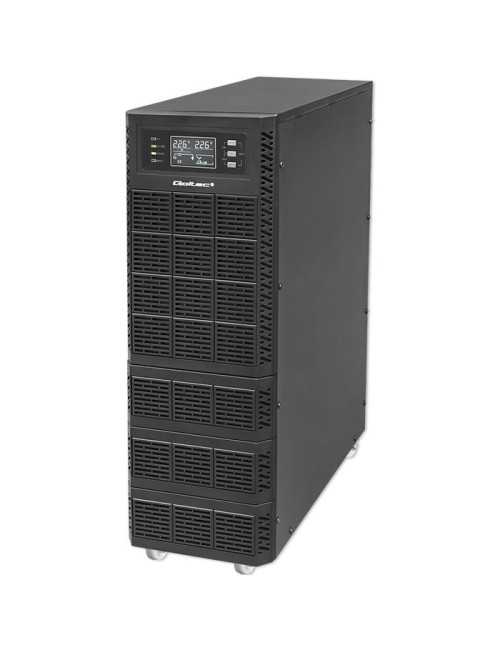

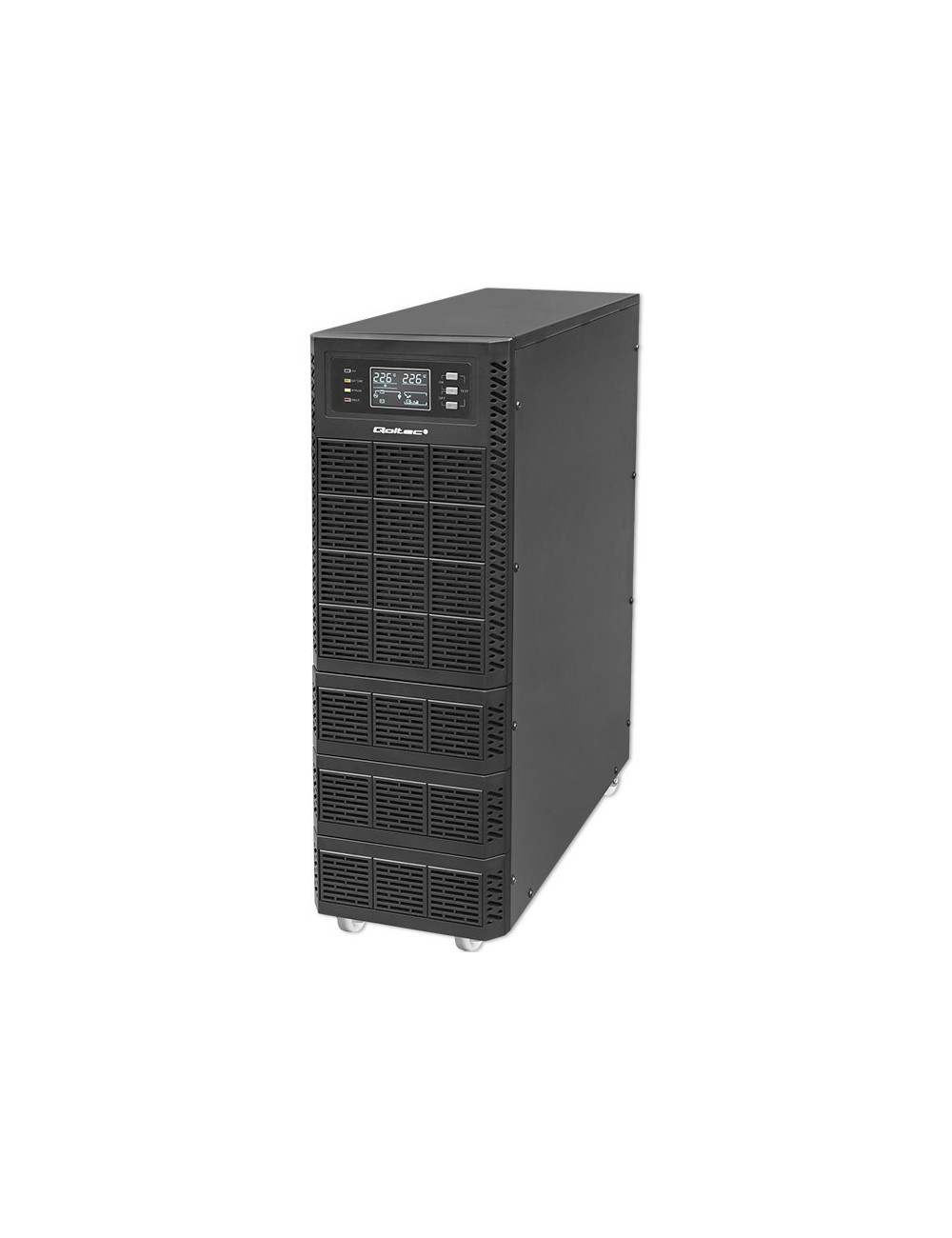

    Qoltec Uninterruptible Power Supply (UPS) | 6kVA | 6000W | Power Factor 1.0 | LCD | EPO | USB | Online

    €896.71
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    Qoltec
    WLONONWCROFAJ
    53 Items

    Data sheet

    Width
    455 mm
    Height
    612 mm
    Depth
    190 mm
    Weight
    50.6 kg
    Package height
    690 mm
    Package width
    600 mm
    Storage relative humidity (H-H)
    20 - 95%
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Storage temperature (T-T)
    -15 - 60 °C
    LED indicators
    Power
    Battery capacity
    7 Ah
    Battery recharge time
    6 h
    Output power
    6000 W
    Input frequency
    50/60 Hz
    RJ-45 ports quantity
    2
    Input operation voltage (min)
    110 V
    Power protection features
    Under voltage
    Cold start
    Yes
    Output power capacity
    6 kVA
    Output operation voltage (max)
    220 V
    Waveform
    Pure sine
    Input operation voltage (max)
    300 V
    Battery voltage
    12 V
    Output operation voltage (min)
    240 V
    UPS topology
    Double-conversion (Online)
    Automatic Voltage Regulation (AVR)
    Yes
    Output frequency
    50 Hz
    Noise Level
    50 dB
    Product colour
    Black
    RS-232 interface
    Yes
    Power factor
    1

    Quick Compare

    Product
    		 Eaton USV 9SX700i 700VA/ 630W USB/RS232 Ever SINLINE RT 3000 Line-Interactive 3 kVA 2250 W 8 AC outlet(s) UPS AEG Protect C.1000 LCD+ USV 1000 VA UPS|EATON|920 Watts|230 VA|Wave form type Sinewave|LineInteractive|Rack 1U|5P1150IRG2 UPS|EATON|920 Watts|230 VA|Wave form type Sinewave|LineInteractive|Rack 1U|5P1150IRG2
    Availability
    Price
    €884.72
    €900.42
    €906.28
    €906.43
    Description
    		 920 Watts | 230 VA | Wave form type Sinewave | Topology LineInteractive | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | Colour Black / Silver
    Colour
    		 Black / Silver
    Width
    		 160 mm 440 mm
    Height
    		 252 mm 132 mm
    Depth
    		 357 mm 460 mm
    Weight
    		 11.5 kg 28 kg
    Package height
    		 247 mm
    Package width
    		 547 mm
    Number of batteries supported
    		 4
    Cables included
    		 Input power cable
    Storage relative humidity (H-H)
    		 20 - 95%
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 20 - 80%
    Storage temperature (T-T)
    		 0 - 45 °C
    Form factor
    		 Mini tower Rackmount/Tower
    USB port
    		 Yes
    LED indicators
    		 Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Battery capacity
    		 9 Ah
    Battery recharge time
    		 4 h
    Cooling type
    		 Active
    Output power
    		 630 W 2250 W
    Input frequency
    		 40/70 Hz 50 Hz
    USB 2.0 ports quantity
    		 1 1
    Display type
    		 LCD LCD
    Ethernet LAN (RJ-45) ports
    		 1
    Garantija
    		 24
    Category Code
    		 UPW
    Unit Box Height
    		 0.185
    Unit Box Length
    		 0.59
    Unit Box Width
    		 0.54
    Vendor Homepage
    		 www.eaton.com/lv/lv-lv/skuPage.5P1150IRG2.html
    Input operation voltage (min)
    		 120 V 178 V
    Power protection features
    		 Overload
    Cold start
    		 Yes
    AC outlets quantity
    		 6 AC outlet(s) 8 AC outlet(s)
    Output power capacity
    		 0.7 kVA 3 kVA
    Output operation voltage (max)
    		 240 V 253 V
    Waveform
    		 Pure sine Sine
    AC outlet types
    		 C13 coupler C13 coupler
    Input operation voltage (max)
    		 276 V 281 V
    Battery voltage
    		 12 V
    Output operation voltage (min)
    		 200 V 195 V
    UPS topology
    		 Double-conversion (Online) Line-Interactive
    Typical backup time at full load
    		 3 min
    Automatic Voltage Regulation (AVR)
    		 Yes
    Automatic battery test
    		 Yes
    Typical backup time at half load
    		 14 min 7 min
    Number of phases
    		 1
    Surge protection
    		 Yes
    Nominal input voltage
    		 230 V
    Nominal output voltage
    		 230 V
    RS-232 ports
    		 1
    Operating altitude
    		 0 - 1000 m
    International Protection (IP) code
    		 IP20
    MODEL
    		 5P Gen2
    Quick installation guide
    		 Yes
    Output frequency
    		 50/60 Hz
    Mounting Type (Rack 1U)
    		 Yes
    Noise Level
    		 40 dB
    Maximum current
    		 16 A
    Power plug
    		 C14 coupler C20 coupler
    Product colour
    		 Black Black
    Harmonized System (HS) code
    		 85078000
    Safety
    		 IEC/EN 62040-1, UL 1778, CSA 22.2
    Serial interface
    		 Yes
    ECO mode
    		 No
    Hot-swap battery
    		 Yes
    Power factor
    		 0.9
    Emergency Power Off (EPO)
    		 Yes
    Number of input phases
    		 1 1
    Number of output phases
    		 1 1
    Input connection type
    		 IEC C14
    Management card included
    		 No
    Rubber feet
    		 Yes
    Units per Shipping Box
    		 1
    Product Net Weight
    		 14.9 kg
    Unit Calculated Weight
    		 19.2 kg
    Unit Calculated Volume
    		 0.058941 cubm
    Output power capacity, W
    		 920 Watts
    Output power capacity, VA
    		 230 VA
    Wave form type
    		 Sinewave
    Topology
    		 LineInteractive
    Input ports
    		 Single, IEC320 C14
    Output power connector type
    		 IEC 320 C13
    Communication ports (USB)
    		 1
    Communication ports (RS232)
    		 1
