POWER WALKER

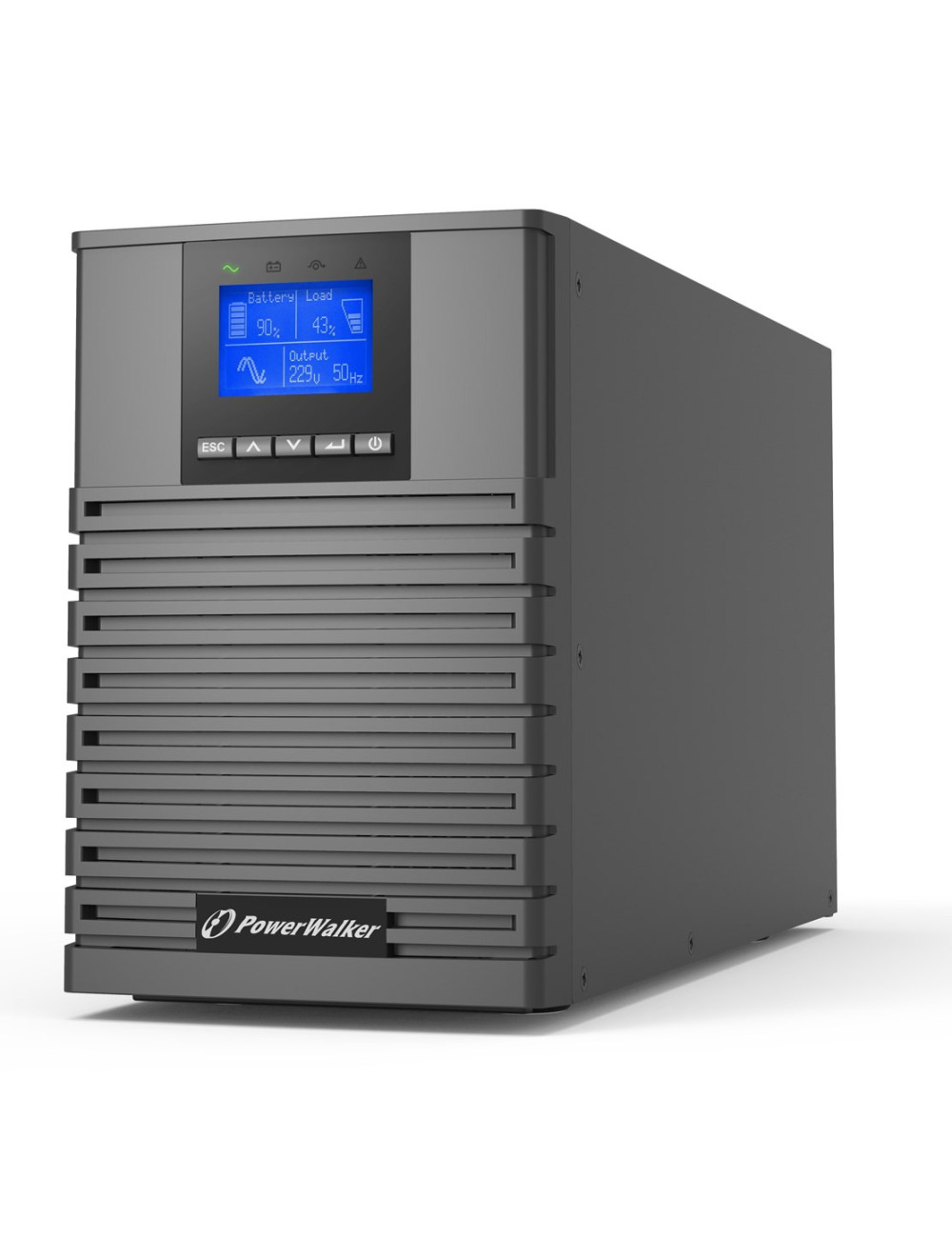

    PowerWalker VFI 1500 ICT IoT Double-conversion (Online) 1.5 kVA 1500 W 4 AC outlet(s)

    €406.57
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    POWER WALKER
    WLONONWCRFRFI
    3 Items

    Data sheet

    Width
    145 mm
    Height
    220 mm
    Depth
    404 mm
    Weight
    14.3 kg
    Package depth
    240 mm
    Package height
    339 mm
    Package width
    495 mm
    Package weight
    15.7 kg
    Number of batteries supported
    3
    Operating temperature (T-T)
    0 - 45 °C
    Operating relative humidity (H-H)
    0 - 95%
    Form factor
    Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery capacity
    9 Ah
    Battery recharge time
    3 h
    Cooling type
    Active
    Output power
    1500 W
    Input frequency
    40/70 Hz
    Response time
    0 ms
    Display type
    LCD
    Input operation voltage (min)
    160 V
    Power protection features
    Overload
    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    1.5 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Pure sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Battery voltage
    12 V
    Output operation voltage (min)
    200 V
    UPS topology
    Double-conversion (Online)
    Output voltage regulation
    1%
    Serial interface type
    RS-232
    Noise Level
    45 dB
    Serial ports quantity
    1
    Power plug
    C14 coupler
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Serial interface
    Yes
    ECO mode
    Yes
    Charging current
    1.5 A
    Output voltage Total Harmonic Distortion (THD)
    1%
    Crest factor
    3:1
    Emergency Power Off (EPO)
    Yes
    Output power factor
    1
    Emergency Power Off (EPO) connector
    Yes
    Input power factor
    0.99
    Built-in fan
    Yes
    Number of input phases
    1
    Number of output phases
    1
    Efficiency (On-line mode)
    89%
    Input current Total Harmonic Distortion (THD)
    5%
    Warnings
    Keep away from sources of fire and water.
