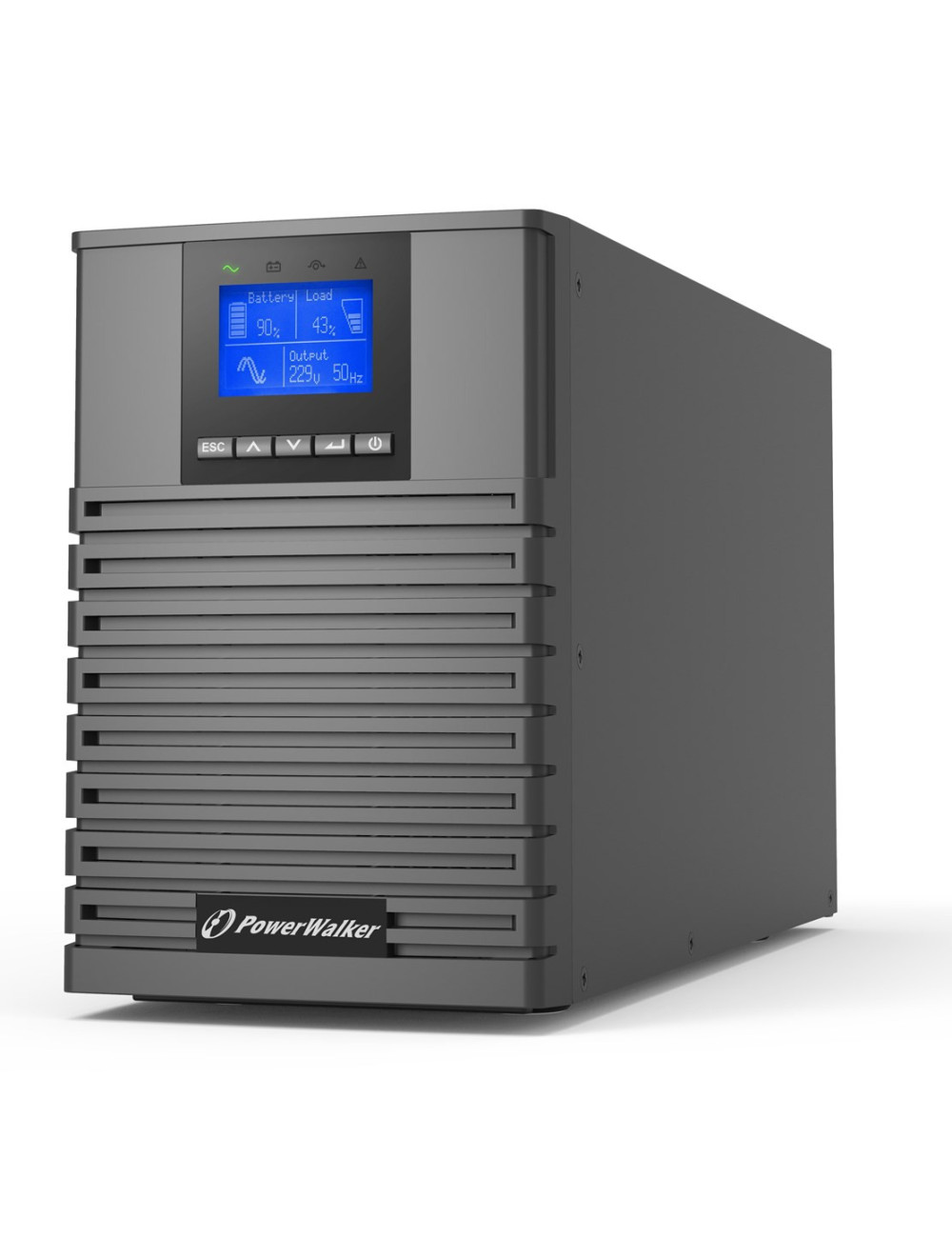

PowerWalker VFI 1500 ICT IoT Double-conversion (Online) 1.5 kVA 1500 W 4 AC outlet(s)

Prekė detaliau

Charakteristikos

Width

145 mm

Height

220 mm

Depth

404 mm

Weight

14.3 kg

Package depth

240 mm

Package height

339 mm

Package width

495 mm

Package weight

15.7 kg

Number of batteries supported

3

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Tower

USB port

Yes

LED indicators

Yes

Battery capacity

9 Ah

Battery recharge time

3 h

Cooling type

Active

Output power

1500 W

Input frequency

40/70 Hz

Response time

0 ms

Display type

LCD

Input operation voltage (min)

160 V

Power protection features

Overload

AC outlets quantity

4 AC outlet(s)

Output power capacity

1.5 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Output voltage regulation

1%

Serial interface type

RS-232

Noise Level

45 dB

Serial ports quantity

1

Power plug

C14 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

ECO mode

Yes

Charging current

1.5 A

Output voltage Total Harmonic Distortion (THD)

1%

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Output power factor

1

Emergency Power Off (EPO) connector

Yes

Input power factor

0.99

Built-in fan

Yes

Number of input phases

1

Number of output phases

1

Efficiency (On-line mode)

89%

Input current Total Harmonic Distortion (THD)

5%

Warnings

Use the appliance in well-ventilated areas to avoid overheating.
