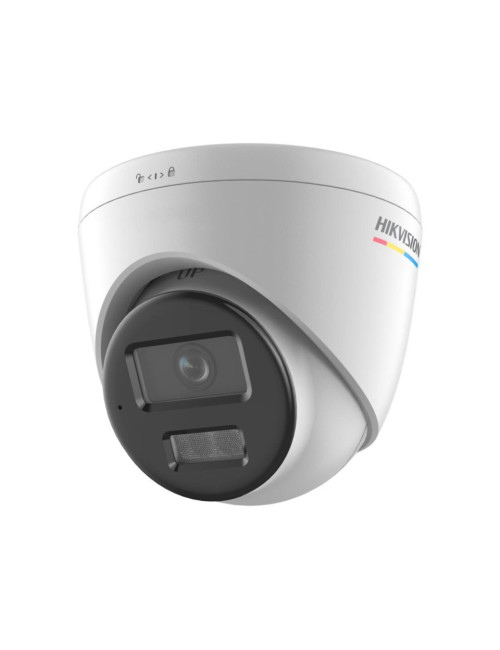

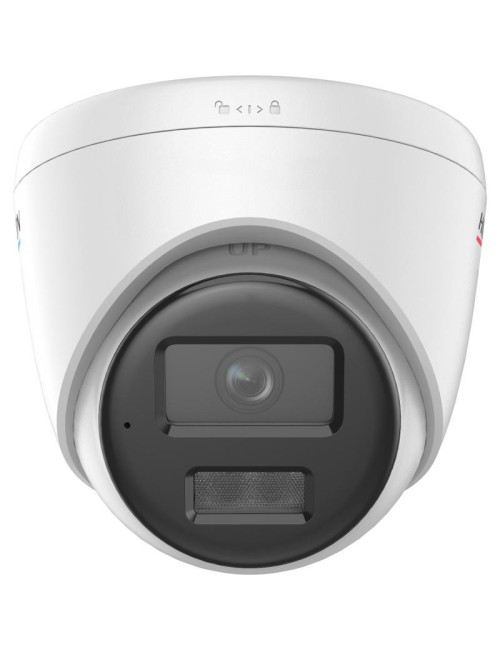

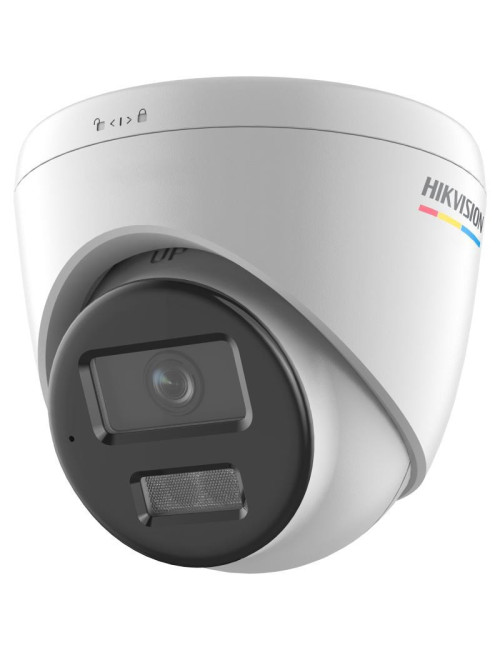

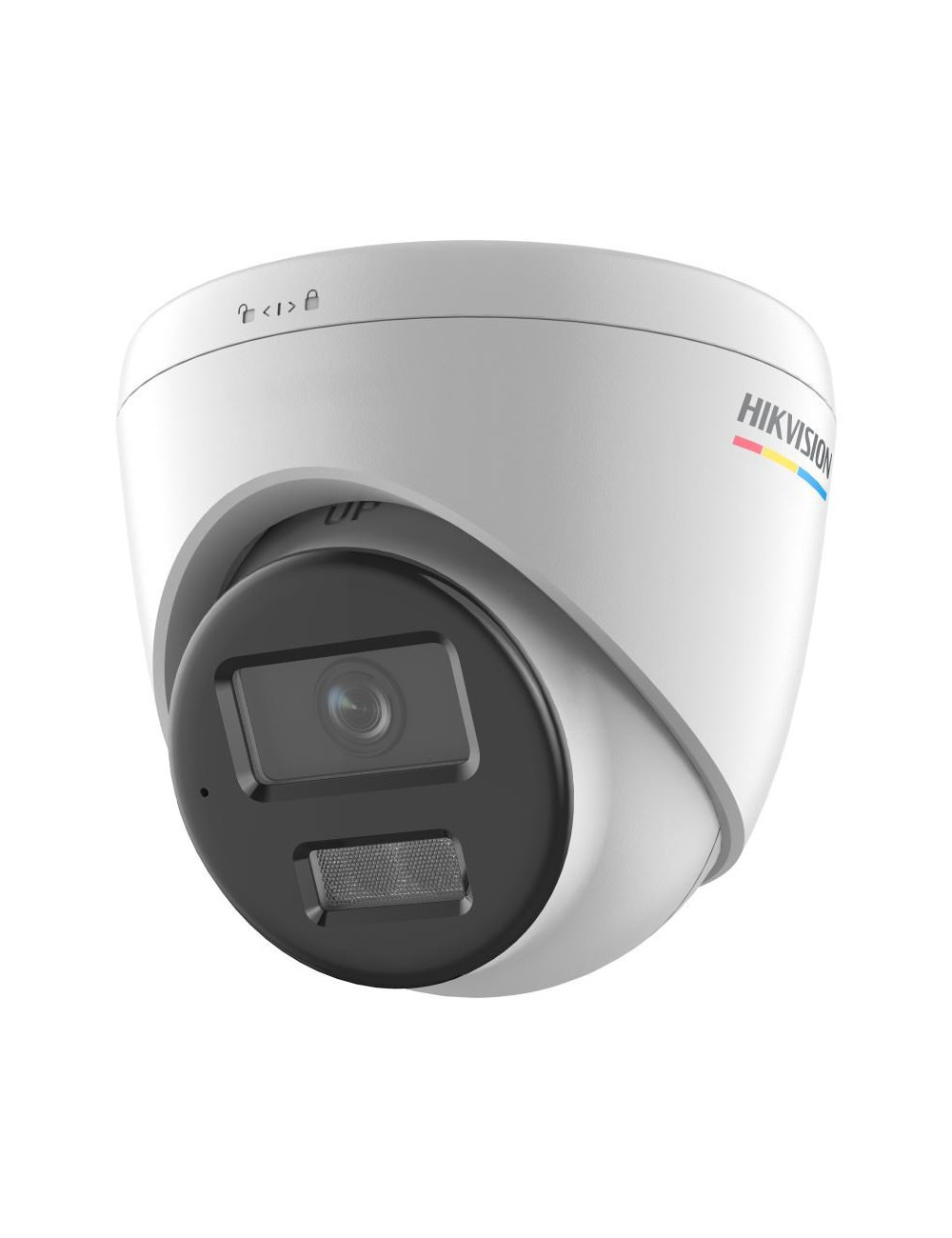

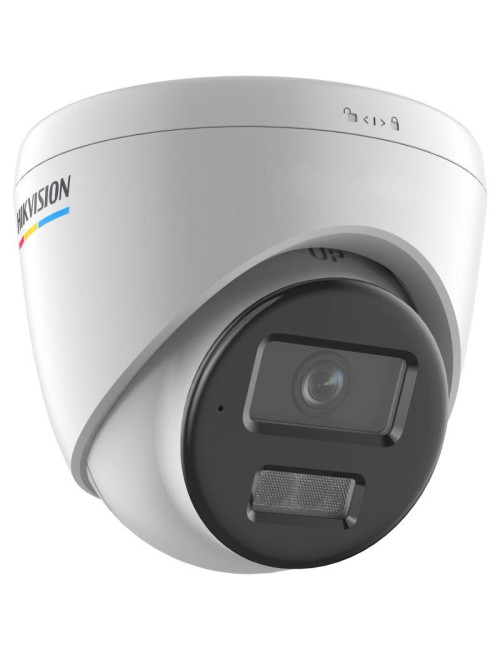

IP CAMERA: HIKVISION DS-2CD1347G2H-LIU(2.8mm)

Product Details

Reference WLONONWCRAYO1

In stock 16 Items

Data sheet

Type

IP security camera

Height

93 mm

Connectivity technology

Wired

Weight

420 g

Package depth

141 mm

Package height

150 mm

Package width

150 mm

Package weight

656 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Manual

Yes

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling

Form factor

Turret

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Protection features

Waterproof

Sensor type

CMOS

Wi-Fi

No

Audio formats supported

AAC-LC

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

6 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

DC-in jack

Yes

Housing material

Metal

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080)

Diameter

11 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported video modes

360p

Video formats supported

H.264

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Supported network protocols

IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Password protection

Yes

Languages support

English

Frame Rate

25 fps

Product colour

White

Tilt angle range

0 - 75°

Sustainability compliance

Yes

Fixed focal length

2.8 mm

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

114°

Video compression formats

H.265+

Angle of rotation

360°

DC output current

0.5 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

52°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

96°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

7.5 W

Image quality adjustment

Sharpness

Lens mount interface

M12

Digest authentication

Yes

Password reset via email

Yes

Iris

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Detect distance

63 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Client interoperability

iVMS-4200, Hik-Connect

Bit rate range

16 - 160 Kbit/s

Compliance certificates

WEEE

Number of Privacy masking areas

4

Sample rates

8 - 16 kHz

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes
