Short description:

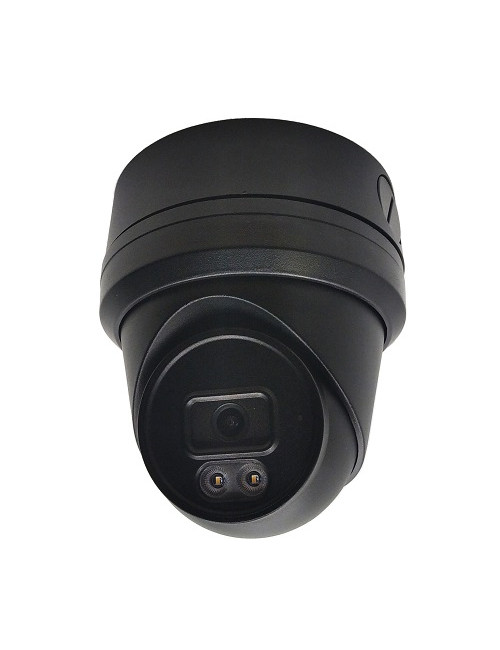

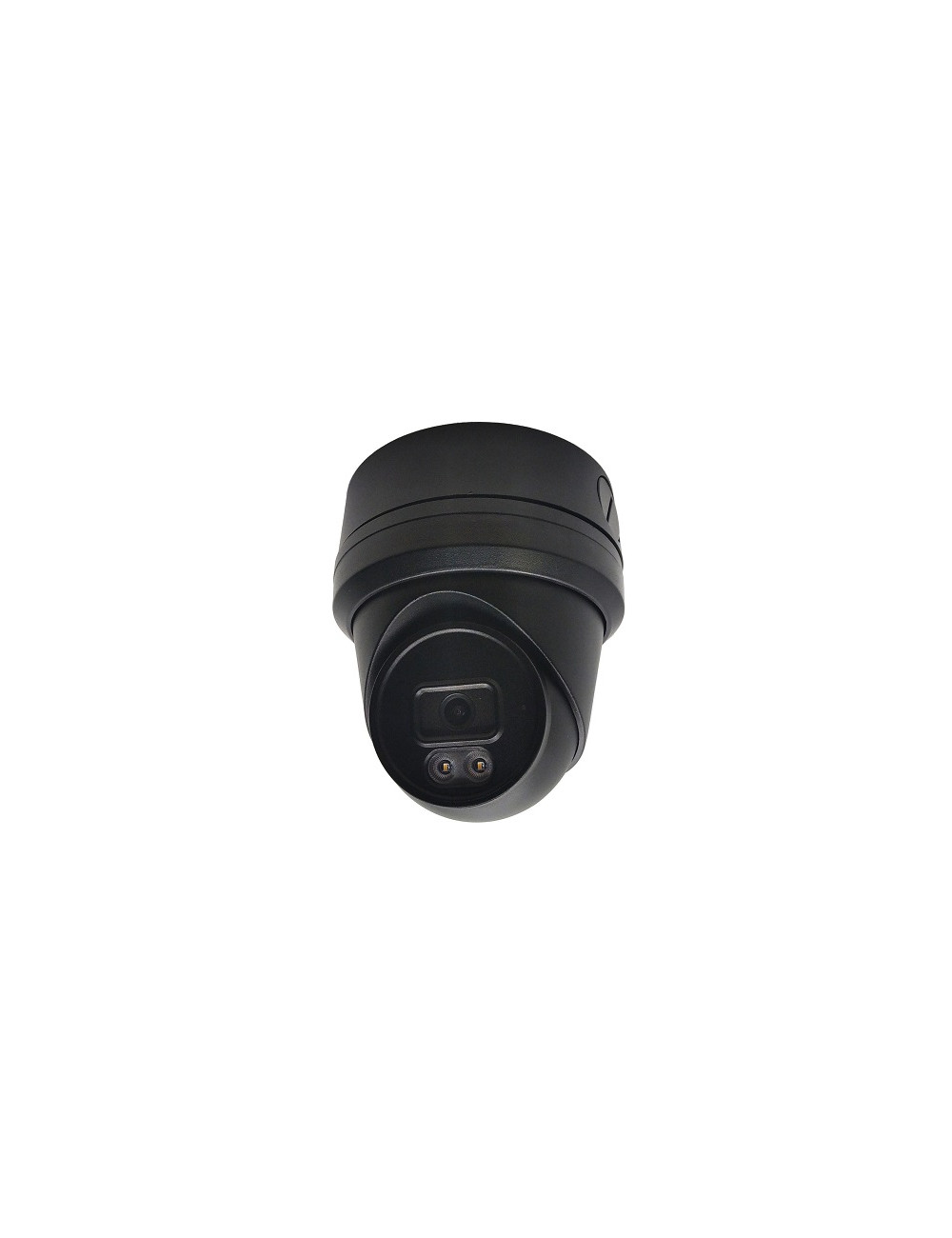

IP camera FULL-COLOR dome 6MP, 1/2.8" inch SONY CMOS sensor, LED+IR dual light up to 25-30m, 6MP(3072 × 2048) 1~25fps, fixed lens: 2.8mm F1.6 angle of view 106.9°, H.265/H.264, AWB, AGC, BLC, IR-CUT, Digital WDR, 2D/3D-DNR: Noise reduction technology, built-in microphone, SD memory slot max. 512GB, PoE, IP66 water-resistant, suitable for outdoor and indoor conditions, lightning protection 4000V, supports ONVIF 17.06 and RTSP standards. Compatible with Dahua and Hikvision NVRs. Complete with mounting base for cable hiding. Model: HDW3649M-IL, color black.
Technical specifications:
• 6MP FULL-COLOR dome IP camera with dual IR+LED light.
• 1/2.8" inch SONY IMX335 CMOS sensor.
• 2.8mm fixed lens F1.6 (angle of view of the lens 106.9° horizontal, 56.9° vertical).
• Audio compression: G.711-u/ G.711-a/ AAC.
• Video compression: H.265, H.264.
• Built-in microphone.
• Scan system: progressive.
• 2 pcs. IR LEDs IR distance 25-30m; + 2pcs. warm light LED distance 25-30m.
• Compatible with Dahua, Hikvision and Uniview NVRs.
• Effective pixels 3072 (H) × 2048 (V).
• Video resolution: 6MP(3072x2048) / 5MP(2592x1944) / 4MP / 3MP / 1080P / 720P.
• Compression Rate: Main stream: 6MP(3072x2048) @(1-25 fps); 5MP(2592x1944) @(1-25fps); 4MP/3MP/1080P/720P @(1-25fps). Substream: D1/VGA/360P/CIF @(1–25 fps).
• Video bitrates: 32Kbps - 8Mbps, VBR/CBR.
• Min. illumination: 0.01 Lux@F1.2 (AGC on).
• 2D-DNA / 3D-DNA: noise reduction technology.
• Electronic shutter: 1/10 s–1/10,000 s.
• White balance: Auto / outdoor / indoor AWB / AGC / BLC / D-WDR.
• D/N Day/Night function: Auto / Color / B/W / Timing.
• Video format: PAL.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Network protocols: HTTP/ RTSP/ FTP/ NFS/ SMTP/ DHCP/ NTP etc., ONVIF 17.06.
• Remote control via APP; supported systems Android, iOS, CMS.
• Unlimited number of users (possibility to grant different rights to each user).
• Remote control and live monitoring via Ethernet (WEB): IE, Edge, Chrome, Firefox, Safari.
• P2P iCloud technology.
• Free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be recorded on the computer.
• Internal memory: SD card slot 512GB.
• Features: human body/vehicle detection, motion detection, privacy masking.
• Reset button.
• Operating temperature: -30°C~+60°C, humidity: 10-90% RH.
• Safety class: IP66 suitable for outdoor and indoor.
• Lightning protection 4000V.
• Power supply: DC 12V, PoE 48V (802.3af).
• Power consumption: <8W.
• Dimensions: 127 mm x 104.7 mm.
• Warranty: 24 months.
• Mounting base (for cable hiding) is included.
IP camera FULL-COLOR dome 6MP, 1/2.8" inch SONY CMOS sensor, LED+IR dual light up to 25-30m, 6MP(3072 × 2048) 1~25fps, fixed lens: 2.8mm F1.6 angle of view 106.9°, H.265/H.264, AWB, AGC, BLC, IR-CUT, Digital WDR, 2D/3D-DNR: Noise reduction technology, built-in microphone, SD memory slot max. 512GB, PoE, IP66 water-resistant, suitable for outdoor and indoor conditions, lightning protection 4000V, supports ONVIF 17.06 and RTSP standards. Compatible with Dahua and Hikvision NVRs. Complete with mounting base for cable hiding. Model: HDW3649M-IL, color black.
Technical specifications:
• 6MP FULL-COLOR dome IP camera with dual IR+LED light.
• 1/2.8" inch SONY IMX335 CMOS sensor.
• 2.8mm fixed lens F1.6 (angle of view of the lens 106.9° horizontal, 56.9° vertical).
• Audio compression: G.711-u/ G.711-a/ AAC.
• Video compression: H.265, H.264.
• Built-in microphone.
• Scan system: progressive.
• 2 pcs. IR LEDs IR distance 25-30m; + 2pcs. warm light LED distance 25-30m.
• Compatible with Dahua, Hikvision and Uniview NVRs.
• Effective pixels 3072 (H) × 2048 (V).
• Video resolution: 6MP(3072x2048) / 5MP(2592x1944) / 4MP / 3MP / 1080P / 720P.
• Compression Rate: Main stream: 6MP(3072x2048) @(1-25 fps); 5MP(2592x1944) @(1-25fps); 4MP/3MP/1080P/720P @(1-25fps). Substream: D1/VGA/360P/CIF @(1–25 fps).
• Video bitrates: 32Kbps - 8Mbps, VBR/CBR.
• Min. illumination: 0.01 Lux@F1.2 (AGC on).
• 2D-DNA / 3D-DNA: noise reduction technology.
• Electronic shutter: 1/10 s–1/10,000 s.
• White balance: Auto / outdoor / indoor AWB / AGC / BLC / D-WDR.
• D/N Day/Night function: Auto / Color / B/W / Timing.
• Video format: PAL.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Network protocols: HTTP/ RTSP/ FTP/ NFS/ SMTP/ DHCP/ NTP etc., ONVIF 17.06.
• Remote control via APP; supported systems Android, iOS, CMS.
• Unlimited number of users (possibility to grant different rights to each user).
• Remote control and live monitoring via Ethernet (WEB): IE, Edge, Chrome, Firefox, Safari.
• P2P iCloud technology.
• Free program that allows the user to monitor and view recordings of cameras from different objects, the program allows the image to be recorded on the computer.
• Internal memory: SD card slot 512GB.
• Features: human body/vehicle detection, motion detection, privacy masking.
• Reset button.
• Operating temperature: -30°C~+60°C, humidity: 10-90% RH.
• Safety class: IP66 suitable for outdoor and indoor.
• Lightning protection 4000V.
• Power supply: DC 12V, PoE 48V (802.3af).
• Power consumption: <8W.
• Dimensions: 127 mm x 104.7 mm.
• Warranty: 24 months.
• Mounting base (for cable hiding) is included.
