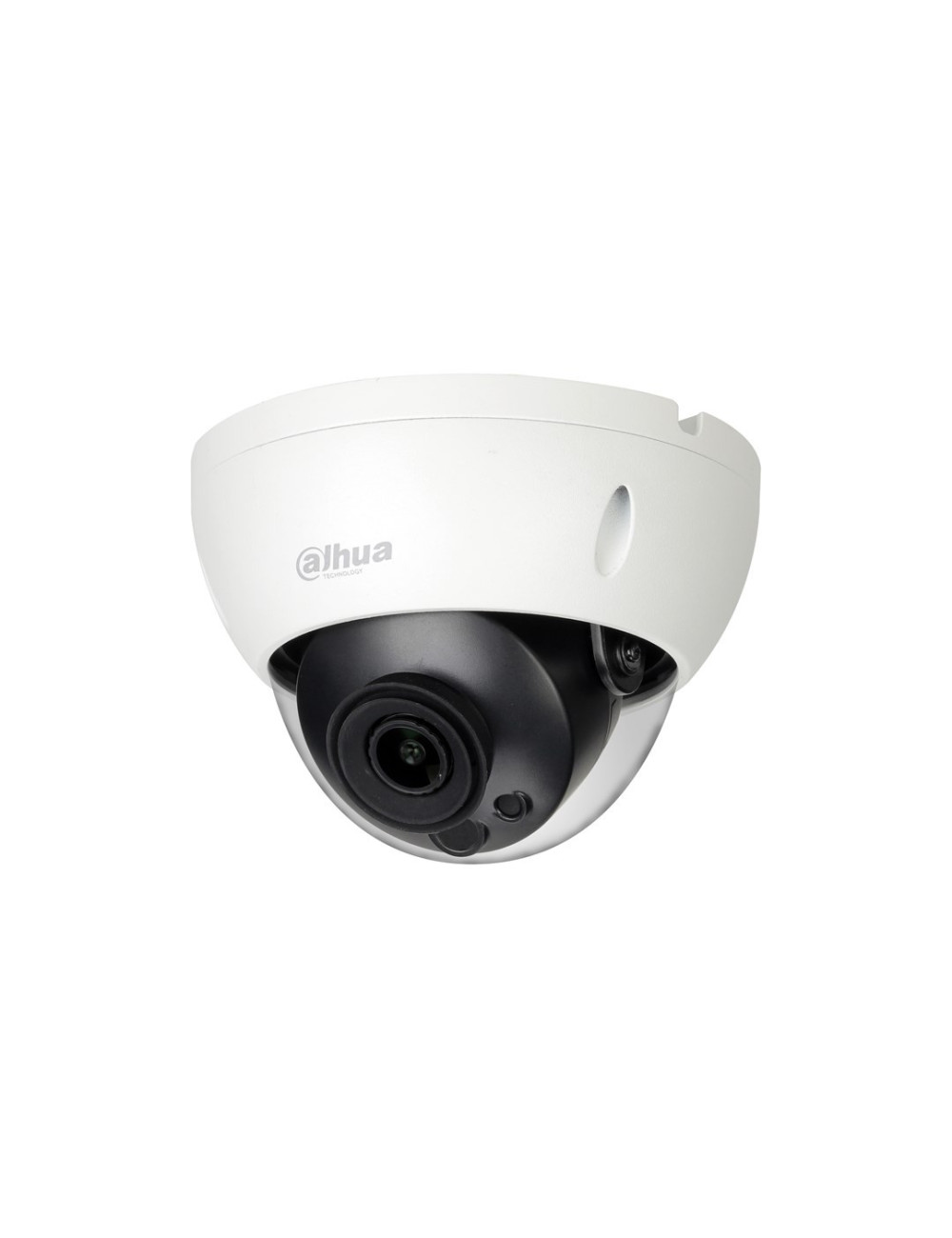

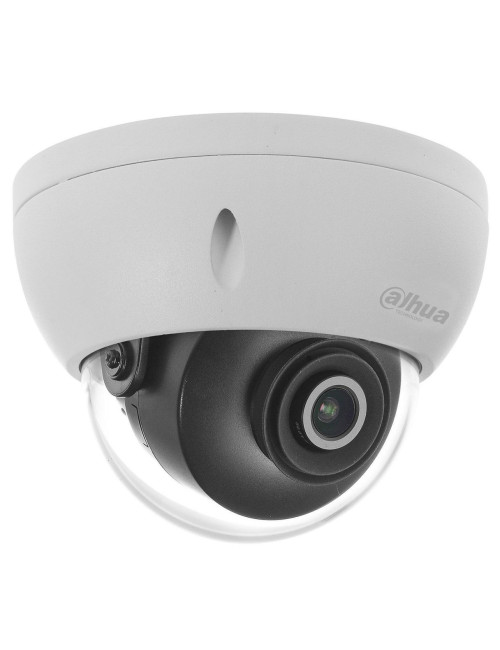

IP CAMERA DAHUA IPC-HDBW5249R-ASE-NI-0360B

Product Details

Reference WLONONWCRIZXR

In stock 6 Items

Data sheet

Plug and Play

Yes

Type

IP security camera

Height

88.9 mm

Connectivity technology

Wired

Weight

453 g

Power source type

DC, PoE

Manual

Yes

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps– 8192 Kbps

Noise reduction

Yes

Mobile operating systems supported

Android

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

AAC

Power consumption (typical)

3.8 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720

Diameter

12.2 cm

International Protection (IP) code

IP67

Auto focus

Yes

Ethernet interface type

Fast Ethernet

Supported video modes

720p

Number of Users

20 user(s)

Web-based management

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

3.6 mm

Web browser

Yes

Face recognition

Yes

RAM capacity

512 MB

Voice codecs

G.711a

Night vision

No

Total megapixels

2 MP

Motion sensor

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

White balance

Natural

Minimum illumination

0.001 lx

Pan range

0 - 355°

Video compression formats

H.264H

Angle of rotation

355°

Aperture

F1.0

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Number of lenses

1

Privacy protection

Yes

Built-in HDD

No

Camera shutter type

Electronic

Lens viewing angle, vertical

47°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

88°

Number of sensors

1

Wide Dynamic Range (WDR)

120 dB

Progressive scan

Yes

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Fog proof

Yes

People counting function

Yes

Auto flip

Yes

ROM capacity

128 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Flip & mirror

Yes

IK code

IK10

Management software

Smart PSS, DSS, DMSS

Closest focusing distance

1.7 m

Detect distance

55.2 m

Recognize distance

11 m

Identify distance

5.5 m

Video intelligence analytic

Yes

Watching the distance

22.1 m
