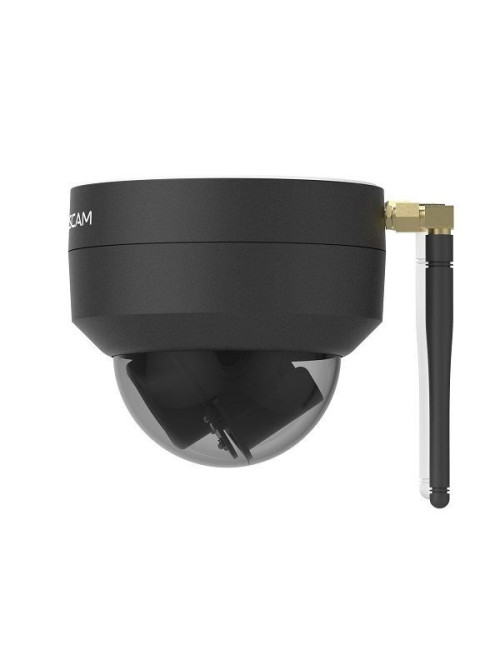

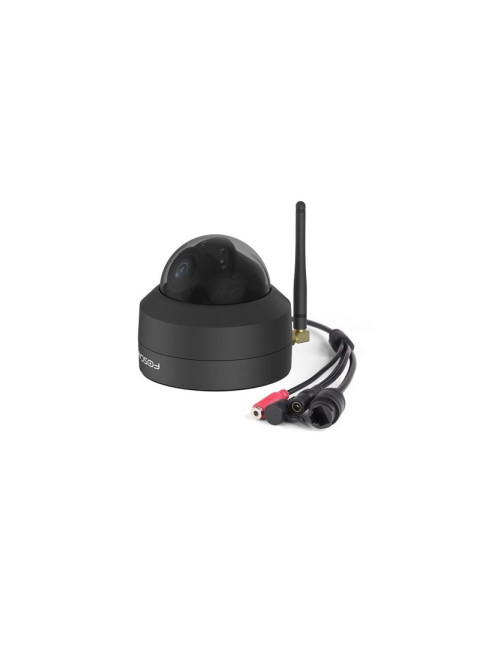

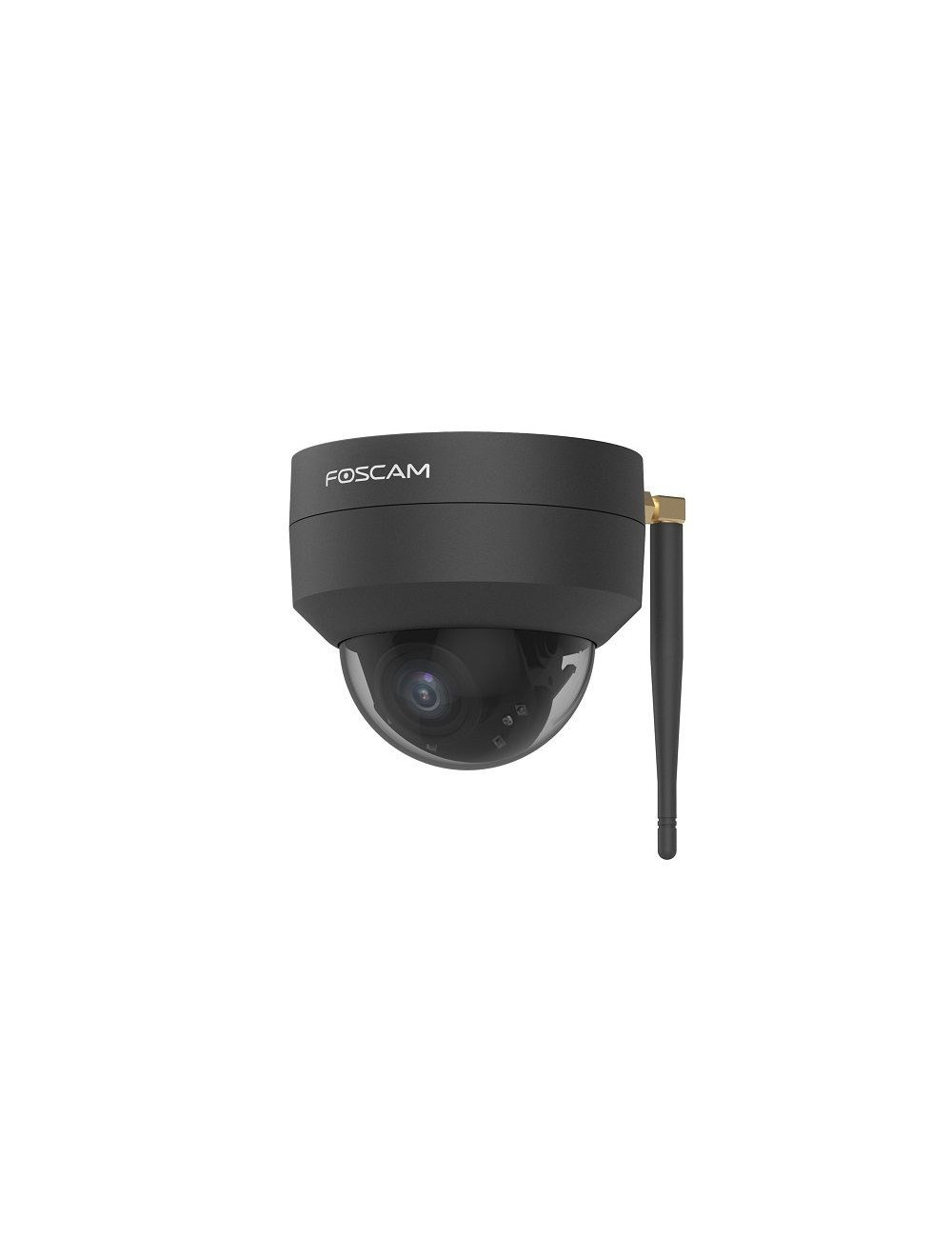

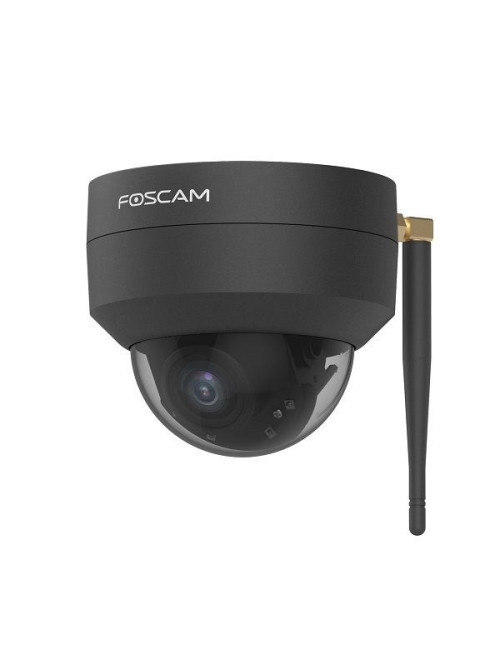

Foscam D4Z Bulb IP security camera Indoor & outdoor 2304 x 1536 pixels Ceiling

Product Details

Data sheet

Type

IP security camera

Width

108 mm

Height

102 mm

Depth

108 mm

Connectivity technology

Wired & Wireless

Weight

518 g

Power source type

DC

Storage relative humidity (H-H)

0 - 90%

Operating temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

20 - 85%

Storage temperature (T-T)

-20 - 50 °C

Mounting type

Ceiling

Form factor

Bulb

Sensor type

CMOS

Wi-Fi

Yes

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

128 GB

Power consumption (typical)

20 W

Maximum resolution

2304 x 1536 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.11g

Security algorithms

WPA2

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

Zoom capability

Yes

International Protection (IP) code

IP66

Optical Zoom

4x

Web-based management

Yes

Supported network protocols

IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, RTSP, ONVIF

Reset button

Yes

Frame Rate

20 fps

Product colour

Black

Tilt angle range

0 - 85°

Focal length range

12 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Motion sensor

Yes

PTZ control

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0 lx

Pan range

0 - 350°

Video compression formats

H.264

DC output current

2 A

DC output voltage

12

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

20 m

Number of lenses

1

Built-in HDD

No

Lens viewing angle, vertical

40 - 130°

Maximum aperture number

2.8

Lens viewing angle, horizontal

32 - 100°

Wide Dynamic Range (WDR)

Yes

Video streaming

Yes

Weatherproof

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Human detection

Number of illumination LEDs

2

IK code

IK10

Audio input channels

2.0 channels

Minimum aperture number

1.4

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
