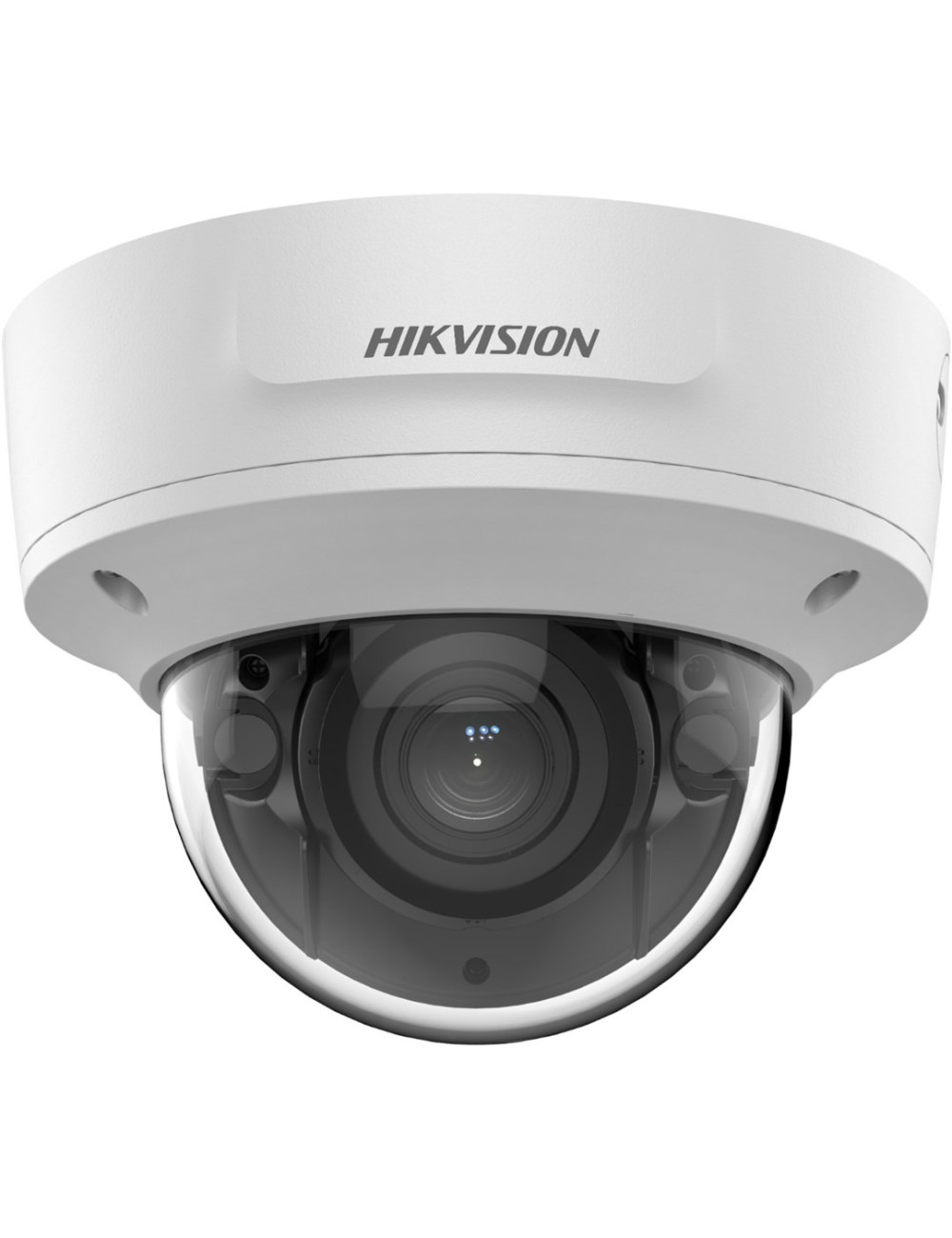

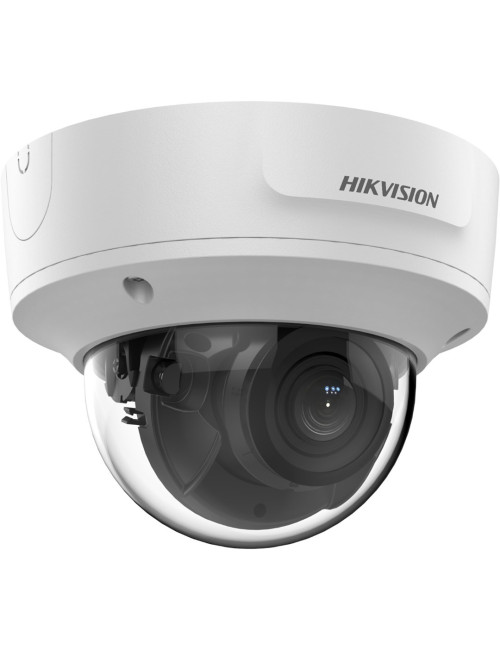

KAMERA IP HIKVISION DS-2CD2723G2-IZS (2.8-12mm)

Product Details

Reference CIPHIKKAM0783

In stock 5 Items

Data sheet

Type

IP security camera

Height

111.6 mm

Connectivity technology

Wired

Weight

880 g

Package depth

174 mm

Package height

173 mm

Package width

244 mm

Package weight

1.42 kg

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Power consumption (max)

10.5 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1 channels

Housing material

Plastic

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080)

Diameter

15.3 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Focal length range

2.8-12 mm

Web browser

Yes

Voice codecs

PCM

LED type

IR

Night vision

Yes

Total megapixels

2 MP

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Pan range

0 - 355°

Video compression formats

M-JPEG

Angle of rotation

355°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

12.5 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Brightness

IK code

IK10

Identify distance (wide)

13.8 m

Recognize distance (wide)

27.5 m

Audio input channels

1 channels

Observe distance (wide)

54.7 m

Detect distance (wide)

137.9 m

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
