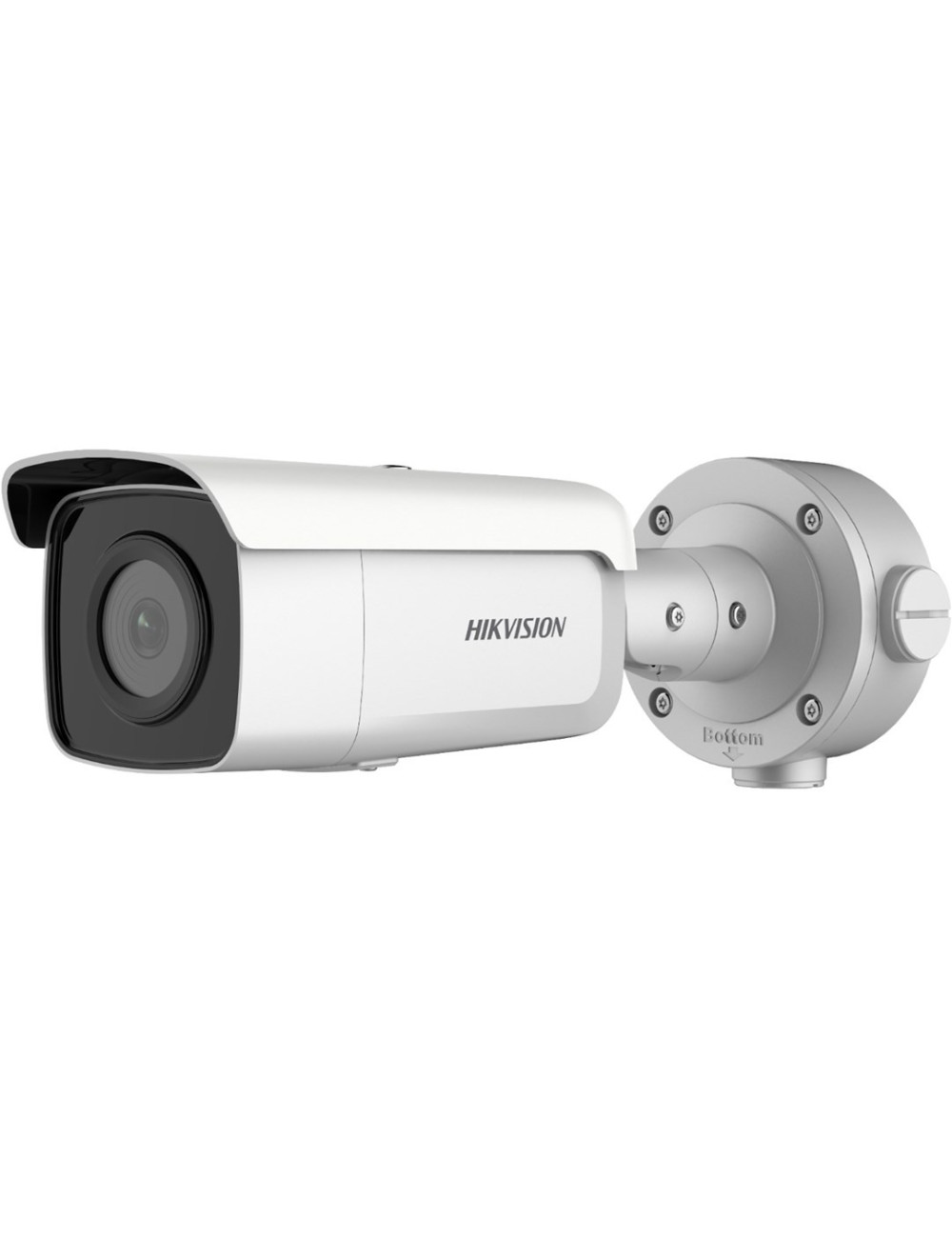

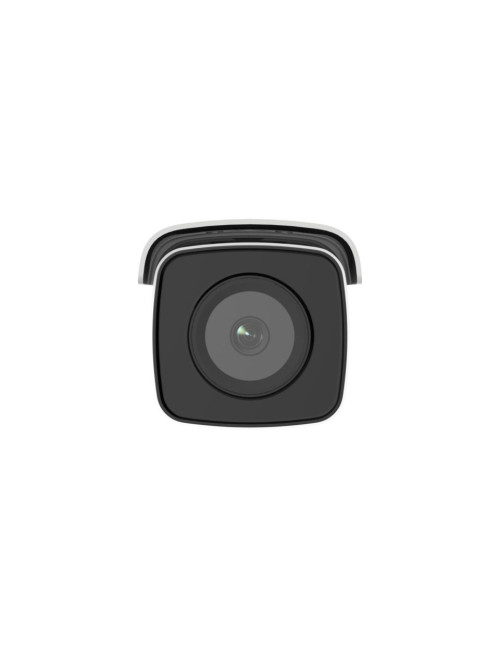

DS-2CD3T86G2-4IS(4mm) IP Tube Camera

Product Details

Reference WLONONWCRGHBB

In stock 7 Items

Data sheet

Type

IP security camera

Width

324.6 mm

Height

90.4 mm

Depth

93.3 mm

Connectivity technology

Wired

Weight

1.1 kg

Package depth

156 mm

Package height

155 mm

Package width

386 mm

Package weight

1.61 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Audio formats supported

MP3

Power consumption (max)

13 W

Maximum resolution

3840 x 2160 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported graphics resolutions

3840 x 2160

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

4 mm

Web browser

Yes

Voice codecs

G.722.1

LED type

IR

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Minimum illumination

0 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

102°

Video compression formats

H.264

Angle of rotation

360°

DC output current

1.05 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

90 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

47°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

87°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Scene change

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

14 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection

Image quality adjustment

Saturation

Identify distance (wide)

10 m

Recognize distance (wide)

21 m

Audio input channels

1.0 channels

Observe distance (wide)

42 m

Detect distance (wide)

107 m

Compliance certificates

REACH

Warnings

Avoid direct contact with water to prevent electrical damage.
