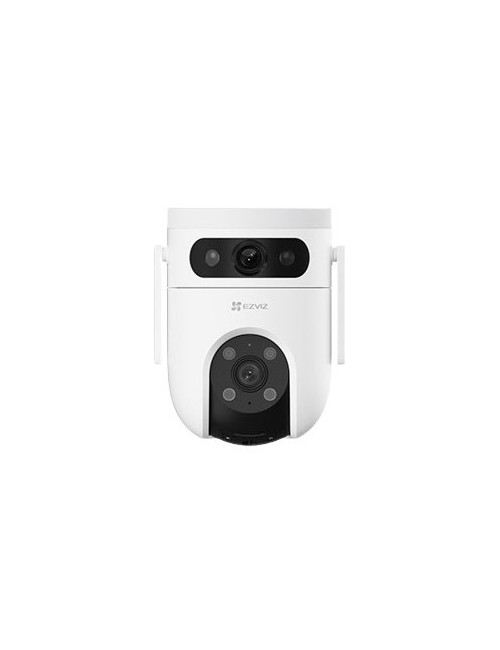

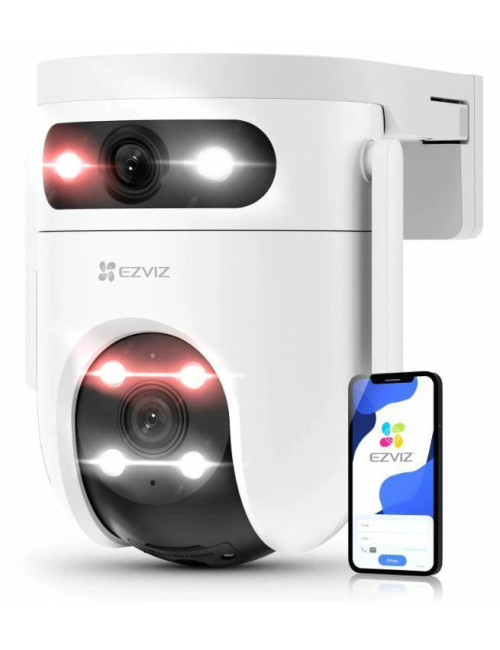

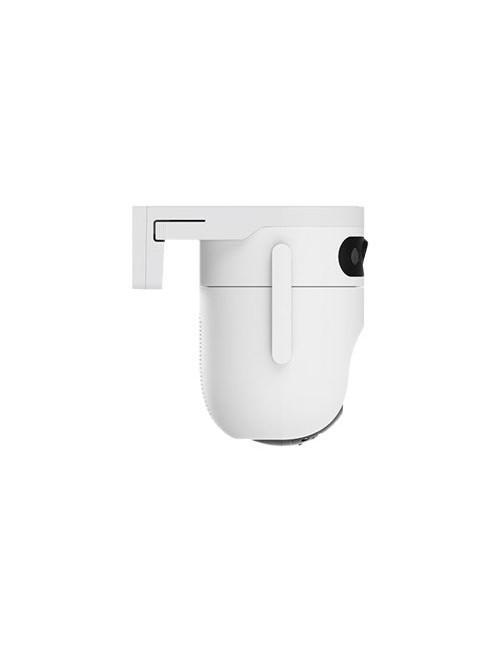

EZVIZ H9C 3MP+3MP 2K IP Camera

Product Details

Data sheet

Type

IP security camera

Package type

Box

Width

116 mm

Height

145 mm

Depth

142 mm

Connectivity technology

Wired & Wireless

Weight

668 g

Package depth

194 mm

Package height

150 mm

Package width

150 mm

Package weight

960 g

Power source type

DC

Operating temperature (T-T)

-30 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Mounting type

Ceiling/Wall/Pole

Form factor

Dome

Bluetooth

No

Sensor type

CMOS

Wi-Fi

Yes

Compatible memory cards

MicroSD (TransFlash)

Wi-Fi standards

802.11b

Maximum memory card size

512 GB

Power consumption (max)

12 W

Maximum resolution

2304 x 1296 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Password protection

Yes

Frame Rate

15 fps

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 80°

Screws included

Yes

LED type

IR

Night vision

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0.5 lx

Pan range

0 - 350°

Video compression formats

H.265

DC output current

1.5 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Number of lenses

2

Auto-tracking

Yes

Built-in HDD

No

Channel bandwidth

20 MHz

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Anti-flicker

Yes

Digital watermark

Yes

Weatherproof

Yes

Intelligent Video Surveillance (IVS) system features

Vehicle detection

Drilling template included

Yes

B/W night vision distance

30 m

Warnings

Avoid direct contact with water to prevent electrical damage.
