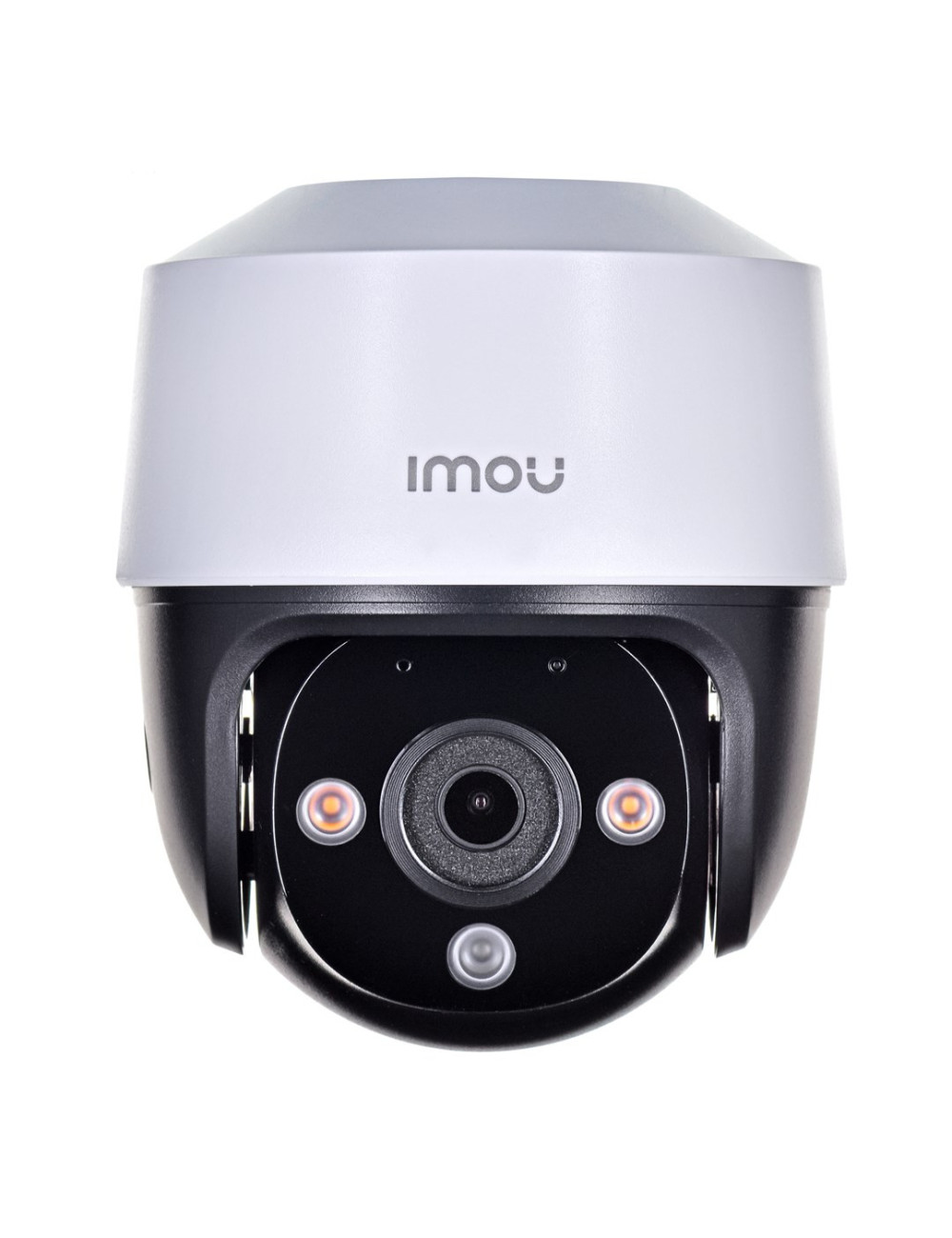

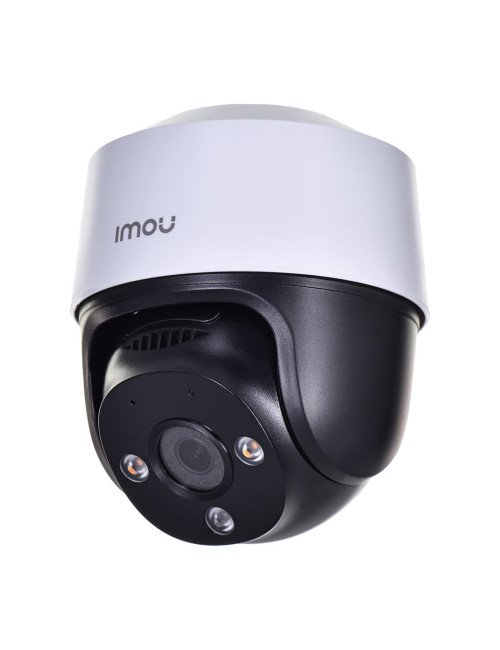

IP CAMERA DAHUA IMOU IPC-S41FAP

Product Details

Data sheet

Type

IP security camera

Width

136 mm

Height

144 mm

Depth

110 mm

Connectivity technology

Wired

Weight

390 g

Power source type

DC, PoE

Operating temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 50 °C

Mounting type

Ceiling

Form factor

Tube/dome

Built-in microphone

Yes

Bluetooth

No

Noise reduction

Yes

Mobile operating systems supported

iOS

Sensor type

CMOS

Wi-Fi

Yes

Power consumption (max)

6.2 W

Maximum resolution

2560 x 1440 pixels

Placement supported

External / Internal

Housing material

Metal, Plastic

Networking standards

IEEE 802.11b

Lens type

Fixed focal length lens

International Protection (IP) code

IP66

Digital zoom

16x

Ethernet interface type

100 Megabit Ethernet

Number of Users

20 user(s)

Web-based management

Yes

Frame Rate

25 / 30 fps

Product colour

White

Focal length range

3.6 mm

Web browser

Yes

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Video compression formats

H.265

DC output voltage

12

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Built-in HDD

No

Lens viewing angle, vertical

44°

Maximum aperture number

1

Lens viewing angle, horizontal

79°

Number of sensors

1

Progressive scan

Yes

Video streaming

Yes

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto/Manual

Number of illumination LEDs

2

Horizontal rotation angle

0 - 355°

Vertical rotation angle

0 - 90°

Diagonal angle of view (max)

94°

Warnings

Avoid direct contact with water to prevent electrical damage.
