DAHUA

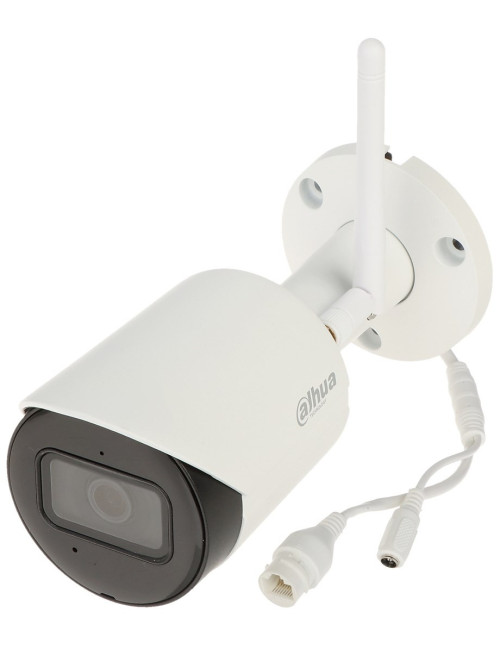

DAHUA IP CAMERA IPC-HFW1230DS-SAW-0280B

€69.68

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCR0124

In stock 9 Items

Data sheet

Type: IP security camera
Width: 70 mm
Height: 128.6 mm
Depth: 166.2 mm
Connectivity technology: Wired & Wireless
Weight: 477.9 g
Power source type: DC
Operating temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Mounting type: Wall/ceiling
Form factor: Tube/dome
Built-in microphone: Yes
Bluetooth: No
Mobile operating systems supported: Android
Sensor type: HD CMOS
Wi-Fi: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Signal-to-Noise Ratio (SNR): 56 dB
Power consumption (max): 4.1 W
Power consumption (typical): 2 W
Maximum resolution: 1920 x 1080 pixels
Placement supported: Outdoor
Housing material: Metal, Plastic
Networking standards: IEEE 802.11b
Lens type: Fixed focal length lens
Wi-Fi band: Single-band (2.4 GHz)
International Protection (IP) code: IP67
Ethernet interface type: 10 Megabit Ethernet
Motion Detection: Yes
Web-based management: Yes
Maximum range: 80 m
Frame Rate: 25 / 30 fps
Product colour: White
Focal length range: 2.8 mm
Web browser: Yes
Number of memory card slots: 1
RAM capacity: 64 MB
LED type: IR
Night vision: Yes
Total megapixels: 2 MP
4G LTE: No
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Minimum illumination: 0.025 lx
Video compression formats: H.265
DC output voltage: 12
Number of cameras: 1
Night vision distance: 30 m
Number of lenses: 1
Lens viewing angle, vertical: 53°
Maximum aperture number: 2
Lens viewing angle, horizontal: 100°
Number of sensors: 1
Wide Dynamic Range (WDR): DWDR
Viewing angle, diagonal: 120°
Progressive scan: Yes
Video streaming: Yes
Alarm input/output: No
ROM capacity: 16 MB
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual
Number of illumination LEDs: 1
Motion detection: Yes
People detection: Yes
Two-way talk: N
People detection: Yes
Built-in loudspeaker: No
Horizontal rotation angle: 0 - 360°
Vertical rotation angle: 0 - 90°
Closest focusing distance: 0.6 m
Aperture type: Permanent
Warnings: The product contains electronic components; do not dispose of with the normal household waste.

Quick Compare

Product	Tenda TC3T24C Camera 4 mm White	Tenda TC3T24C Camera 2.8 mm White	KAMERA IP TC-C320N 1CNB-28 Analog Killer - 1080p 2.8 mm TIANDY	Xiaomi BW300 Box IP security camera Outdoor 2304 x 1296 pixels Ceiling/wall
Availability
Price	€57.68	€57.68	€57.68	€57.81
Description
Type	Sensor camera	Sensor camera		IP security camera
Width	80 mm	80 mm
Height	80 mm	80 mm
Depth	76 mm	76 mm
Connectivity technology	Wired	Wired		Wired & Wireless
Weight	307 g	307 g
Frequency band				2.4 GHz
Power source type	Power socket	Power socket		Battery
Cables included				USB
Manual	Yes	Yes		Yes
Operating temperature (T-T)	-40 - 60 °C	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95%	10 - 95%
Mounting type	Desk/Ceiling	Desk/Ceiling		Ceiling/wall
Form factor	Dome	Dome		Box
USB port				Yes
Built-in microphone	Yes	Yes		Yes
Bluetooth	No	No
USB powered	No	No
AC adapter included	Yes	Yes
Quick start guide	Yes	Yes
Battery capacity				4900 mAh
Protection features				Water resistant
Sensor type	CMOS	CMOS
Wi-Fi	No	No		Yes
Wi-Fi standards				802.11g
Audio system	Mono	Mono		2-way
Maximum resolution	2560 x 1440 pixels	2560 x 1440 pixels		2304 x 1296 pixels
Built-in speaker(s)	No	No		Yes
Placement supported	Outdoor	Outdoor		Outdoor
Ethernet LAN (RJ-45) ports	1	1
Remotely operated				Yes
Ethernet LAN	Yes	Yes
Supported graphics resolutions				2304 x 1296
International Protection (IP) code				IP67
Rechargeable battery				Yes
Ethernet interface type	100 Gigabit Ethernet	10 Megabit Ethernet
Video formats supported	H.264	H.265
Frame Rate	30 fps	30 fps
Mounting kit				Yes
Product colour	White	White		White
Tilt angle range	0 - 78°	0 - 78°
Sustainability compliance	Yes	Yes
Fixed focal length	4 mm	2.8 mm
Video recording				Yes
Virtual assistant				Amazon Alexa & Google Assistant
Screws included	Yes	Yes		Yes
LED type				IR
Night vision	Yes	Yes		Yes
Total megapixels				3 MP
Motion sensor				Yes
Field of view (FOV) angle				130°
Pan range	0 - 360°	0 - 360°
Lens viewing angle, diagonal	94.9°	97,3°
Video compression formats	H.264	H.264
DC output current	1 A	1 A
DC output voltage	12V	12V
Video motion detection	Yes	Yes
Number of cameras	1	1		1
Night vision distance	30 m	30 m
Number of lenses	1	1
Detection distance				7 m
Day/night mode	Yes	Yes		Yes
Infrared (IR) cut-off filter	Yes	Yes
Remote viewing				Yes
Built-in HDD	No	No		No
Lens viewing angle, vertical	43.3°	46,2°
Digital Wide Dynamic Range (DWDR)	Yes	Yes
Maximum aperture number	1.6	1.6		1.6
Lens viewing angle, horizontal	79.1°	82.91°
Number of sensors	1	1
Alert notification type				Push notification
Wide Dynamic Range (WDR)	Yes	Yes
Progressive scan	Yes	Yes
Video streaming	Yes	Yes
Weatherproof				Yes
Intelligent Video Surveillance (IVS) system features	Human detection	Human detection
Live view				Yes
Cloud-managed				Yes
Onvif standard	Yes	Yes
Works with the Google Assistant				Yes
Works with Amazon Alexa				Yes
Built-in light	Yes	Yes
Human and vehicle targets classification				Yes
Drilling template included	Yes	Yes
Compliance certificates	RoHS	UKCA
Warnings	The product contains electronic components; do not dispose of with the normal household waste.	Avoid direct contact with water to prevent electrical damage.		Avoid direct contact with water to prevent electrical damage.
