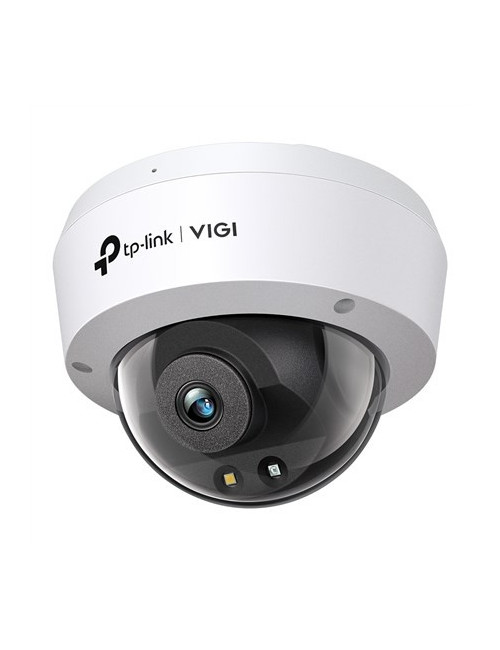

TP-LINK VIGI C240(2.8mm) Camera

Product Details

Reference WLONONWCRALUA

In stock 32 Items

Data sheet

Type

IP security camera

Width

115 mm

Height

86 mm

Depth

115 mm

Connectivity technology

Wired

Package depth

193 mm

Package height

120 mm

Package width

153 mm

Package weight

460 g

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

64 Kbps - 4 Mbps

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Power consumption (max)

5.4 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

2304 x 1296

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Web-based management

Yes

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 85°

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0.005 lx

Pan range

0 - 360°

Lens viewing angle, diagonal

113°

Video compression formats

H.265+

Angle of rotation

360°

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Built-in HDD

No

Lens viewing angle, vertical

51.7°

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Lens diameter

2.8 mm

Lens viewing angle, horizontal

95.7°

Infra-red wavelength

850 nm

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

1

HTTPS encryption

Yes

Image quality adjustment

Brightness

IK code

IK10

Digest authentication

Yes

Number of simultaneous live view channels

3 channels

Basic event

Motion Detection, Camera Tampering Detection, Exception

Management software

VIGI App, VIGI Security Manager, VIGI NVR

Compliance certificates

CE

Warnings

Avoid direct contact with water to prevent electrical damage.
