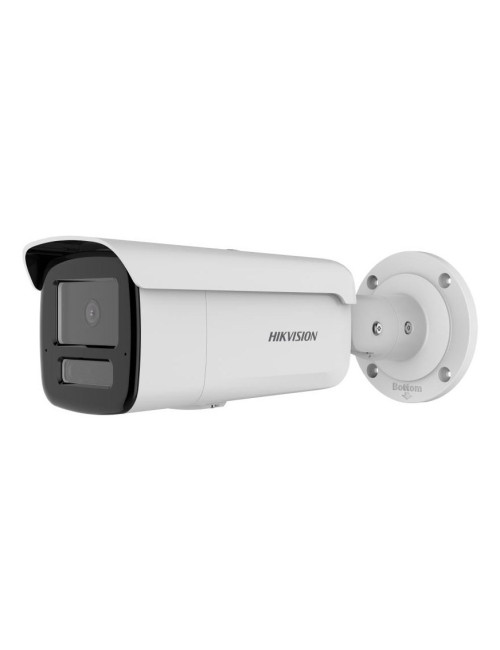

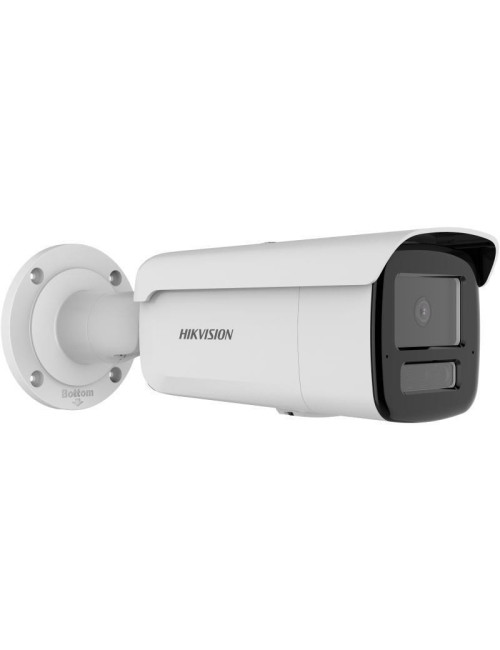

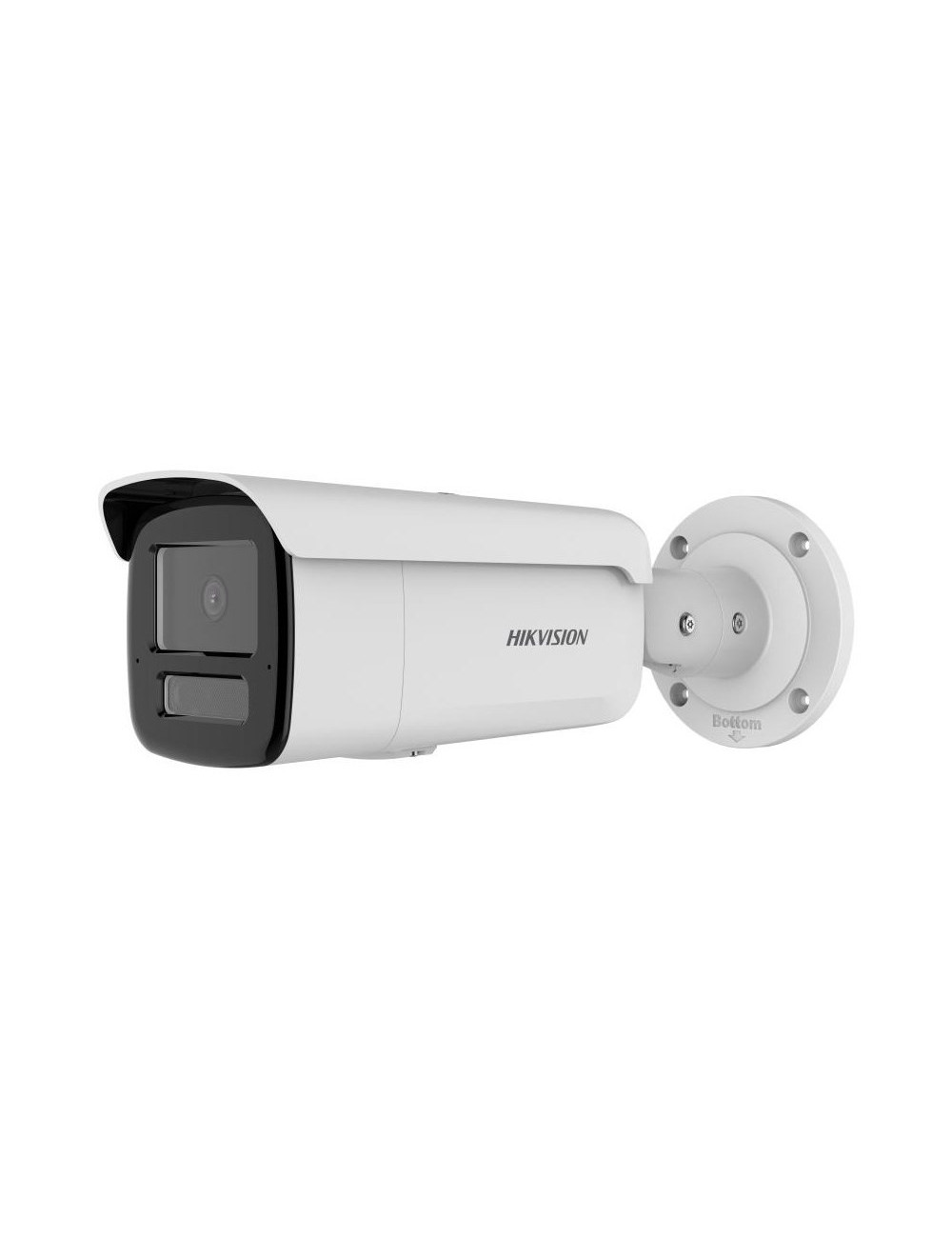

HIKVISION IP CAMERA DS-2CD2T43G2-4LI(4mm)

Product Details

Reference WLONONWCRDCZY

In stock 28 Items

Data sheet

Type

IP security camera

Width

93.1 mm

Height

88.7 mm

Connectivity technology

Wired

Weight

1.11 kg

Package depth

156 mm

Package height

155 mm

Package width

386 mm

Package weight

1.64 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Bluetooth

No

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Protection features

Waterproof

Length

286.7 mm

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

512 GB

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Housing material

Metal

Networking standards

IEEE 802.3af

Security algorithms

HTTPS

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Browser supported

IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 90°

Fixed focal length

4 mm

Web browser

Yes

Video recording

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

100°

Video compression formats

H.265

Angle of rotation

360°

DC output current

0.83 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

80 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

45°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

84°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

11 W

HTTPS encryption

Yes

Behavior analysis

Line crossing detection

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Detect distance

78 m

Observe distance

31 m

Recognize distance

15 m

Identify distance

7 m

Pixel counter

Yes

Human and vehicle targets classification

Yes

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Compliance certificates

Federal Communications Commission (FCC)

Number of Privacy masking areas

8

Automatic Network Replenishment (ANR)

Yes

Network access storage (NAS)

Yes

Warnings

Avoid direct contact with water to prevent electrical damage.

Audit log

Yes

Flash log

Yes
