POWER WALKER

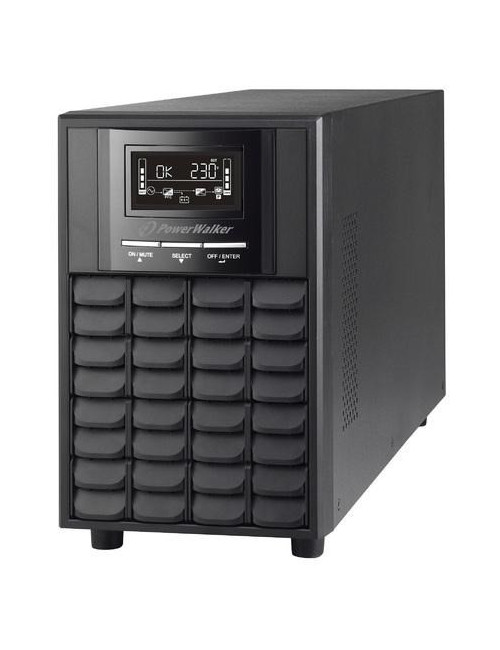

    PowerWalker VI 2000 CW FR uninterruptible power supply (UPS) Line-Interactive 2 kVA 1400 W

    €398.43
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    POWER WALKER
    WLONONWCRFRK8
    6 Items

    Data sheet

    Width
    145 mm
    Height
    220 mm
    Depth
    455 mm
    Weight
    18.1 kg
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    20 - 90%
    Output power
    1400 W

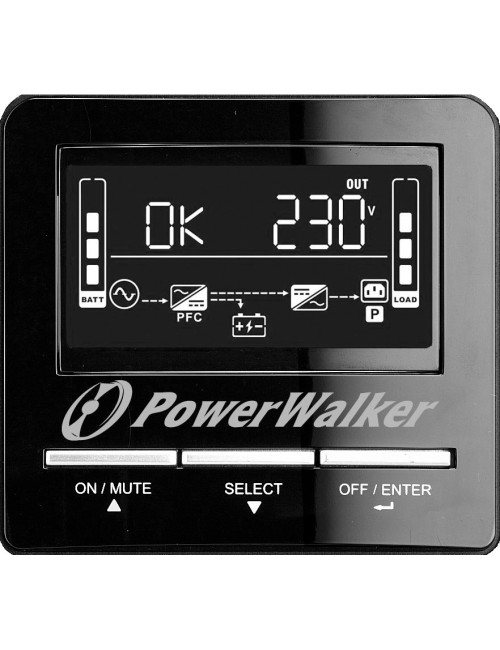

    Display type
    LCD
    Input operation voltage (min)
    162 V
    Output power capacity
    2 kVA
    Input operation voltage (max)
    290 V
    UPS topology
    Line-Interactive

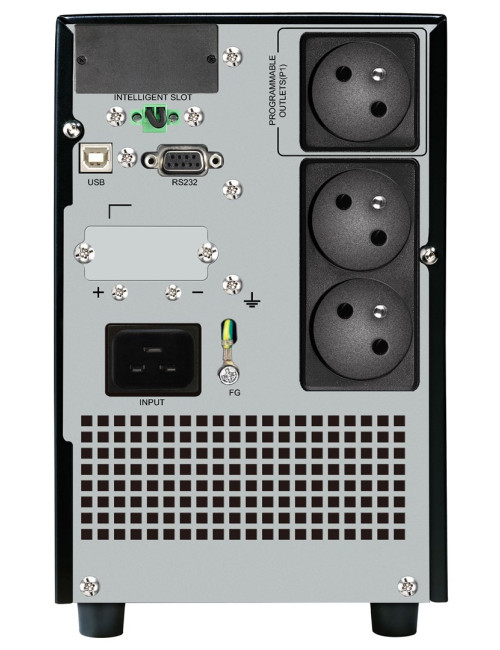

    RS-232 ports
    1
    Noise Level
    45 dB
    Harmonized System (HS) code
    85078000
    Power factor
    0.7
    Emergency Power Off (EPO) connector
    Yes
    Built-in fan
    Yes

    Quick Compare

    Product
    		 PowerWalker VI 1000RT LCD uninterruptible power supply (UPS) 1 kVA 900 W 8 AC outlet(s) PowerWalker VFI 1000 CG PF1 Double-conversion (Online) 1 kVA 1000 W 4 AC outlet(s) PowerWalker VFI 2000 TGS Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s) Eaton UPS Ellipse PRO 1600 DIN | Eaton Eaton UPS Ellipse PRO 1600 DIN | Eaton
    Availability
    Price
    €386.86
    €387.76
    €391.82
    €393.63
    Description
    		 Eaton UPS Ellipse PRO 1600 DIN | Eaton
    Warranty
    		 36 month(s)
    Net weight
    		 11.30 kg
    Gross weight
    		 11.80 kg
    WEEE tax
    		 Yes
    Packing quantity
    		 1.00 pc(s)
    Volume (m3)
    		 0.01 m
    Tare weight (kg)
    		 0.50 kg
    Gross depth (mm)
    		 280.00 mm
    Gross width (mm)
    		 90.00 mm
    Gross height (mm)
    		 400.00 mm
    WEE classification
    		 CL109:5:2017-04-01
    Paper/Pasteboard
    		 400.00 g
    Embeeded battery
    		 Yes
    Package type
    		 Box
    TI weight (kg)
    		 9.00 kg
    Width
    		 438 mm 145 mm 102 mm
    Height
    		 86.5 mm 221 mm 328 mm
    Depth
    		 436 mm 397 mm 390 mm
    Plastic (No PET)
    		 100.00 g
    Composition of battery
    		 CL127:KT:2016-12-09
    Classification of battery
    		 CL126:NE:2016-12-09
    Type of battery
    		 Accumulator
    Weight
    		 17.8 kg 13 kg 6 kg
    Package depth
    		 472 mm 488 mm
    Package height
    		 325 mm 456 mm
    Package width
    		 230 mm 194 mm
    Package weight
    		 15 kg 7 kg
    Number of batteries supported
    		 3
    Battery type
    		 12V / 7Ah
    Cables included
    		 Input power cable, Output power cable, USB cable Input power cable, USB cable
    Manual
    		 Yes Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 20 - 80% 20 - 95% 0 - 95%
    Form factor
    		 Rackmount Tower Tower
    USB port
    		 Yes
    LED indicators
    		 Yes
    Battery capacity
    		 7 Ah
    Palette Qty
    		 85 pc(s)
    Battery recharge time
    		 4 h 3 h
    Cooling type
    		 Active Active
    Output power
    		 900 W 1000 W 1800 W
    Input frequency
    		 50/60 Hz 40/70 Hz 40/70 Hz
    USB 2.0 ports quantity
    		 1 1
    Display type
    		 LCD LCD LCD
    Ethernet LAN (RJ-45) ports
    		 1
    Number of battery cells
    		 3
    Efficiency
    		 89% 90%
    Input operation voltage (min)
    		 154 V 110 V 176 V
    Power protection features
    		 Short circuit
    AC outlets quantity
    		 8 AC outlet(s) 4 AC outlet(s) 6 AC outlet(s)
    Output power capacity
    		 1 kVA 1 kVA 2 kVA
    Output operation voltage (max)
    		 240 V 240 V 240 V
    AC outlet types
    		 IEC 309 516C6 C13 coupler C13 coupler
    Input operation voltage (max)
    		 288 V 300 V 300 V
    Battery voltage
    		 12 V 12 V
    Output operation voltage (min)
    		 220 V 200 V 220 V
    UPS topology
    		 Double-conversion (Online) Double-conversion (Online)
    Modem (RJ-11) ports
    		 2
    Typical backup time at full load
    		 4.5 min
    Warranty card
    		 Yes
    Typical backup time at half load
    		 12.9 min
    Surge protection
    		 Yes
    Output frequency regulation
    		 -0.05 - 0.05 Hz
    Output voltage regulation
    		 1% -2 - 2%
    RS-232 ports
    		 1
    Serial interface type
    		 RS-232
    Noise Level
    		 50 dB 50 dB
    Serial ports quantity
    		 1
    Surge energy rating
    		 430 J
    Power plug
    		 C14 coupler C20 coupler
    Product colour
    		 Black Black Black
    Harmonized System (HS) code
    		 85078000 85078000 85078000
    Serial interface
    		 Yes
    Charging current
    		 6 A
    Output voltage Total Harmonic Distortion (THD)
    		 3% 2%
    Producer
    		 Eaton
    Overload protection
    		 Yes
    Power factor
    		 0.99
    Surge protection features
    		 Modem
    Crest factor
    		 3:1 3:1
    Emergency Power Off (EPO)
    		 Yes Yes
    Resource CD
    		 Yes Yes
    Output power factor
    		 0.9
    Emergency Power Off (EPO) connector
    		 Yes Yes
    Input current Total Harmonic Distortion (THD)
    		 1.6% 5%
