POWER WALKER

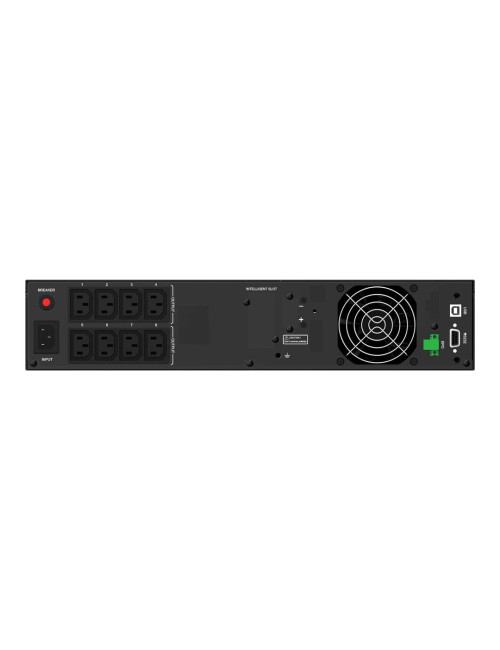

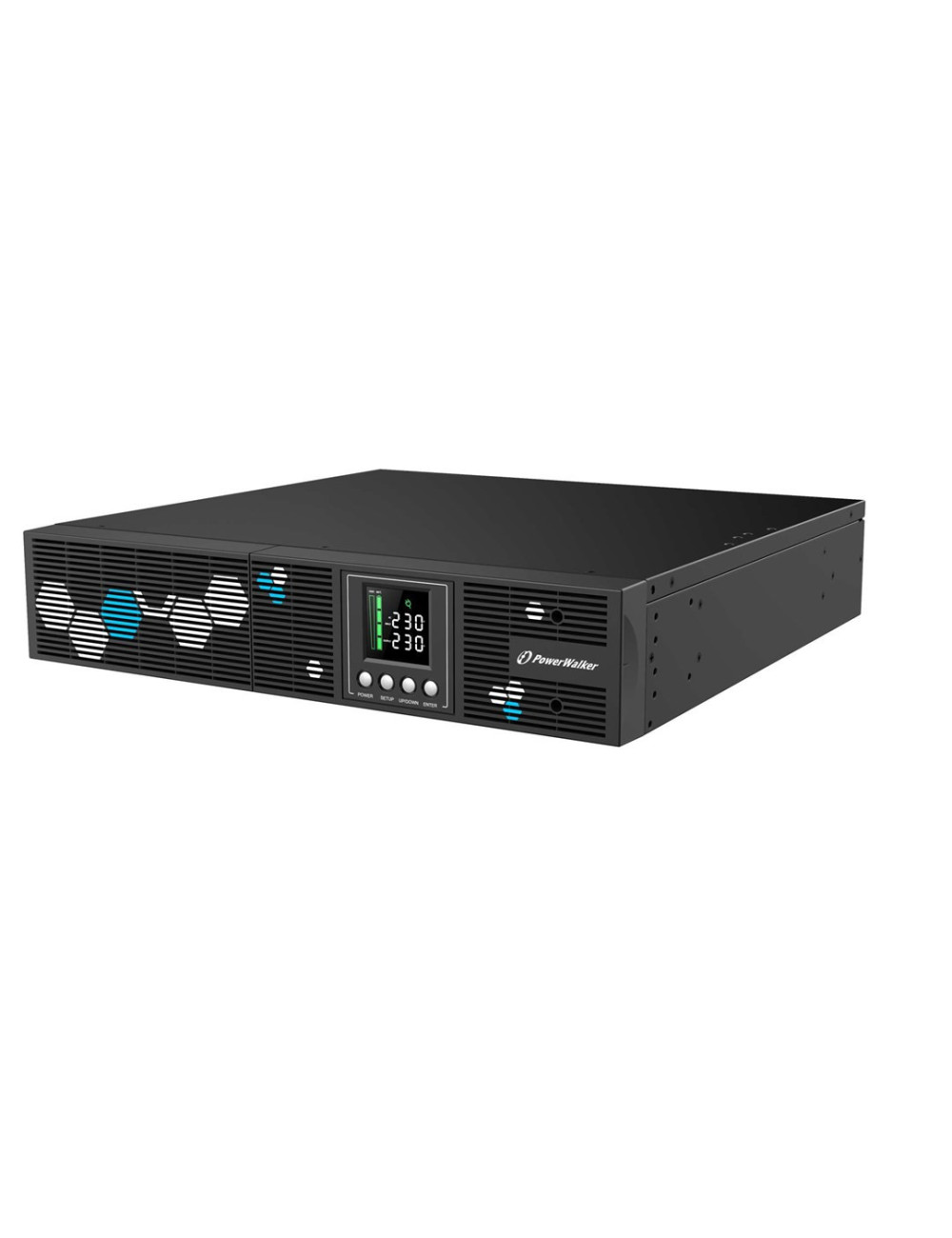

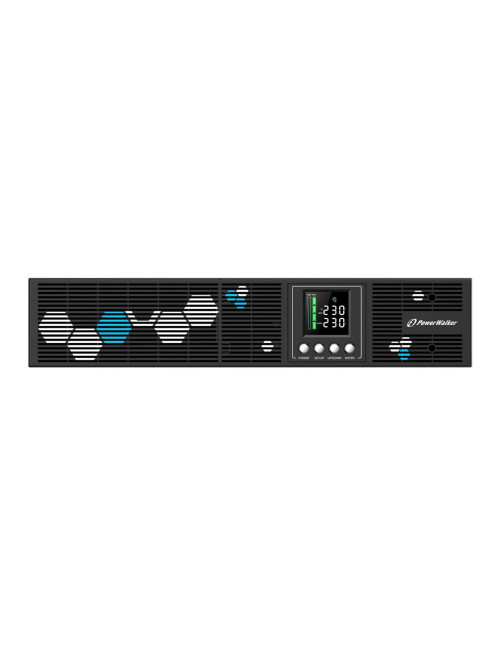

    PowerWalker VI 1000 RLP Line-Interactive 1 kVA 900 W 8 AC outlet(s)

    €397.78
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    POWER WALKER
    WLONONWCRFRNW
    6 Items

    Data sheet

    Width
    438 mm
    Height
    88 mm
    Depth
    430 mm
    Weight
    16 kg
    Package depth
    550 mm
    Package height
    231 mm
    Package width
    556 mm
    Package weight
    18 kg
    Number of batteries supported
    2
    Power source type
    AC
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    5 - 90%
    Form factor

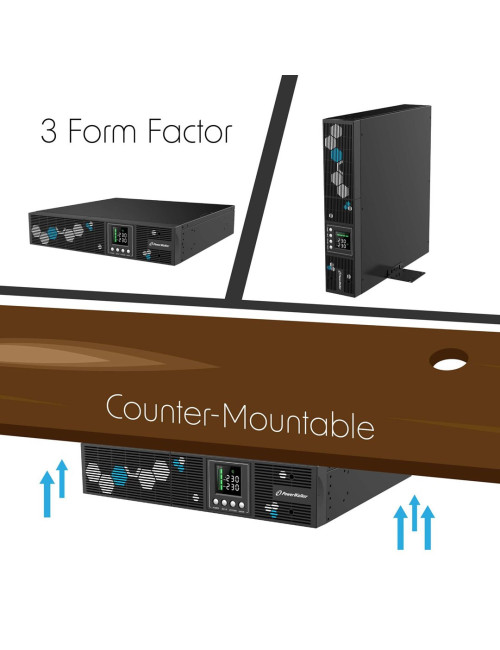

    Rackmount/Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery capacity
    9 Ah
    Battery recharge time
    4 h
    Output power
    900 W
    Input frequency
    45/65 Hz
    Response time
    6 ms
    Display type
    LCD
    Input operation voltage (min)
    165 V
    Power protection features
    Overload
    Cold start
    Yes
    AC outlets quantity
    8 AC outlet(s)
    Output power capacity
    1 kVA
    Waveform
    Pure sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    290 V
    Battery voltage
    12 V
    UPS topology
    Line-Interactive
    Typical backup time at full load
    2 min
    Off-mode charging
    Yes
    Automatic Voltage Regulation (AVR)
    Yes
    Typical backup time at half load
    8 min
    Nominal output voltage
    230 V
    Output voltage regulation
    10%
    RS-232 ports
    1
    International Protection (IP) code
    IP20
    Noise Level
    40 dB
    Power plug
    C14 coupler
    Product colour
    Black
    USB port type
    USB Type-B
    Charging current
    6 A
    Output voltage Total Harmonic Distortion (THD)
    3%
    SmartSlot
    Yes
    Emergency Power Off (EPO)
    Yes
    Rack capacity
    2U
    Output power factor
    0.9
    Built-in fan
    Yes
    Number of input phases
    1
    Number of output phases
    1
    Efficiency (On-line mode)
    98.8%
    Efficiency (ECO mode)
    82.3%
