APC

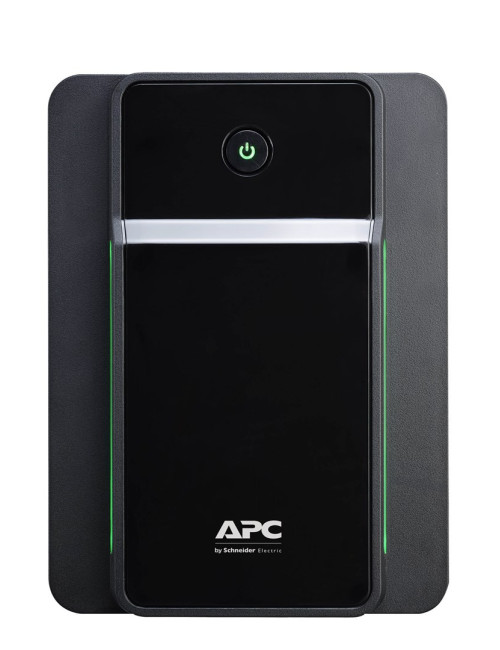

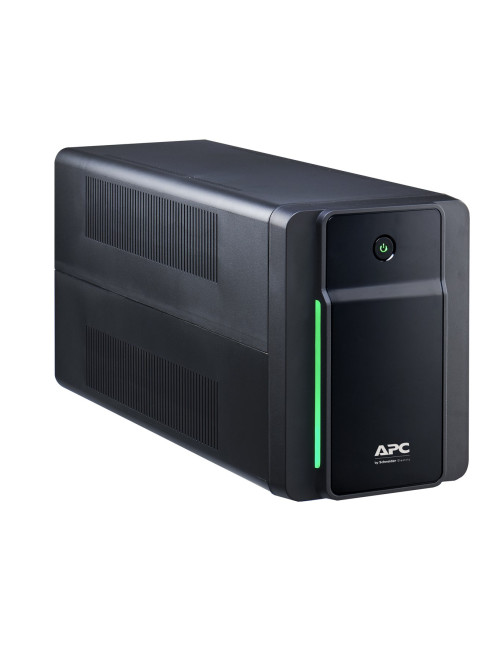

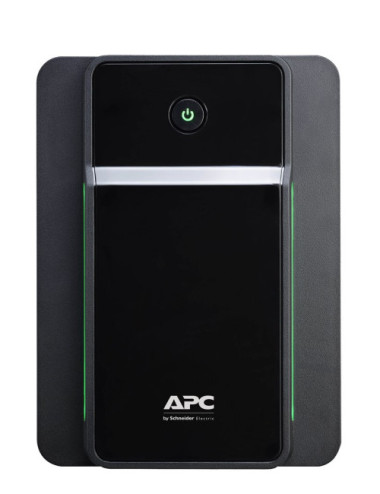

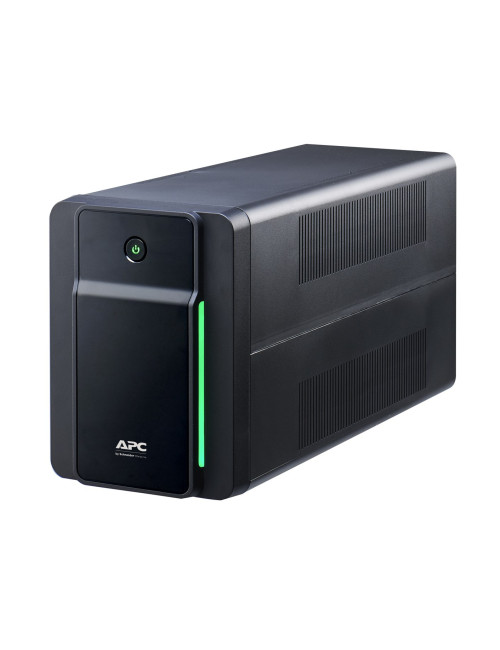

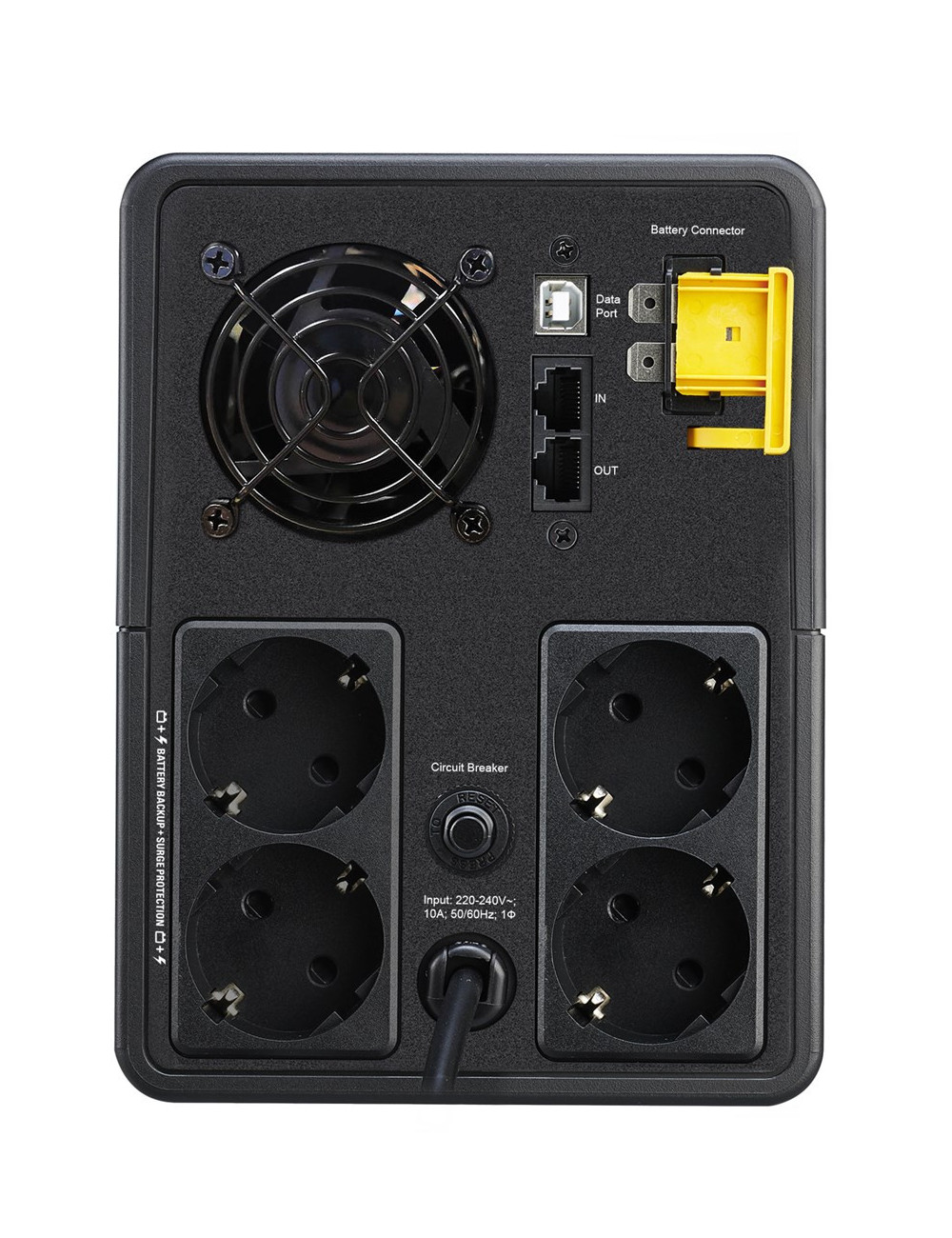

    APC BX2200MI-GR uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1200 W 4 AC outlet(s)

    €312.72
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    ZSIAPCUPS0199
    11 Items

    Data sheet

    Cable length
    1.2 m
    Width
    140 mm
    Height
    190 mm
    Depth
    390 mm
    Weight
    12.3 kg
    Package height
    297 mm
    Package width
    235 mm
    Cables included
    Input power cable
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 40 °C
    Form factor
    Compact
    USB port
    Yes
    LED indicators
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    2 year(s)
    Battery recharge time
    8 h
    Output power
    1200 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Response time
    6 ms
    Input operation voltage (min)
    140 V
    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    2.2 kVA
    Output operation voltage (max)
    230 V
    Waveform
    Sine

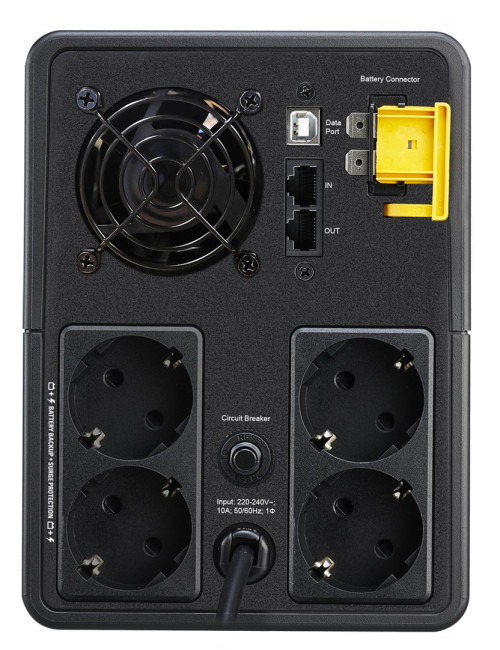

    AC outlet types
    Type F
    Input operation voltage (max)
    300 V
    Audible alarm(s)
    Yes
    Output operation voltage (min)
    230 V
    UPS topology
    Line-Interactive

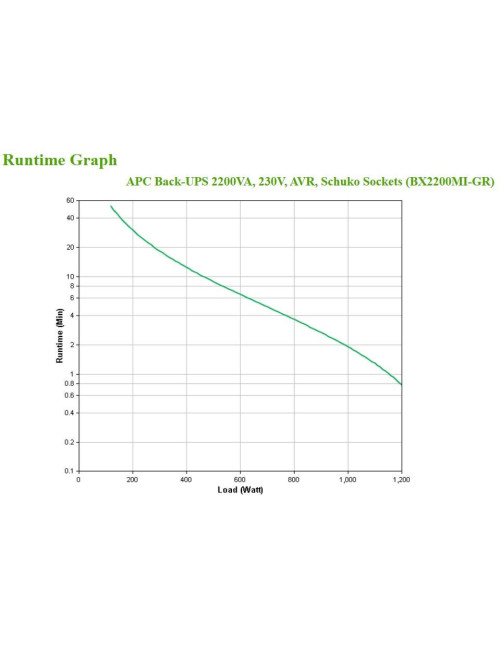

    Typical backup time at full load
    1 min

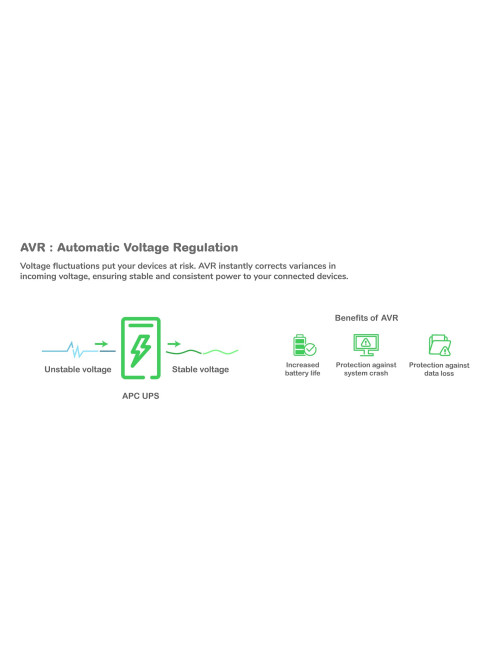

    Automatic Voltage Regulation (AVR)
    Yes
    Typical backup time at half load
    8.5 min
    Surge protection
    Yes
    Output frequency regulation
    0.5 Hz
    Output voltage regulation
    10%
    Operating altitude
    0 - 3000 m
    International Protection (IP) code
    IP20
    Output frequency
    50/60 Hz
    Noise Level
    40 dB
    Surge energy rating
    273 J
    Power plug
    Type F
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    USB port type
    USB Type-B
    Compliance certificates
    RoHS
    Audible alarm modes
    Low battery alarm
    Input power factor
    0.54
