Armac

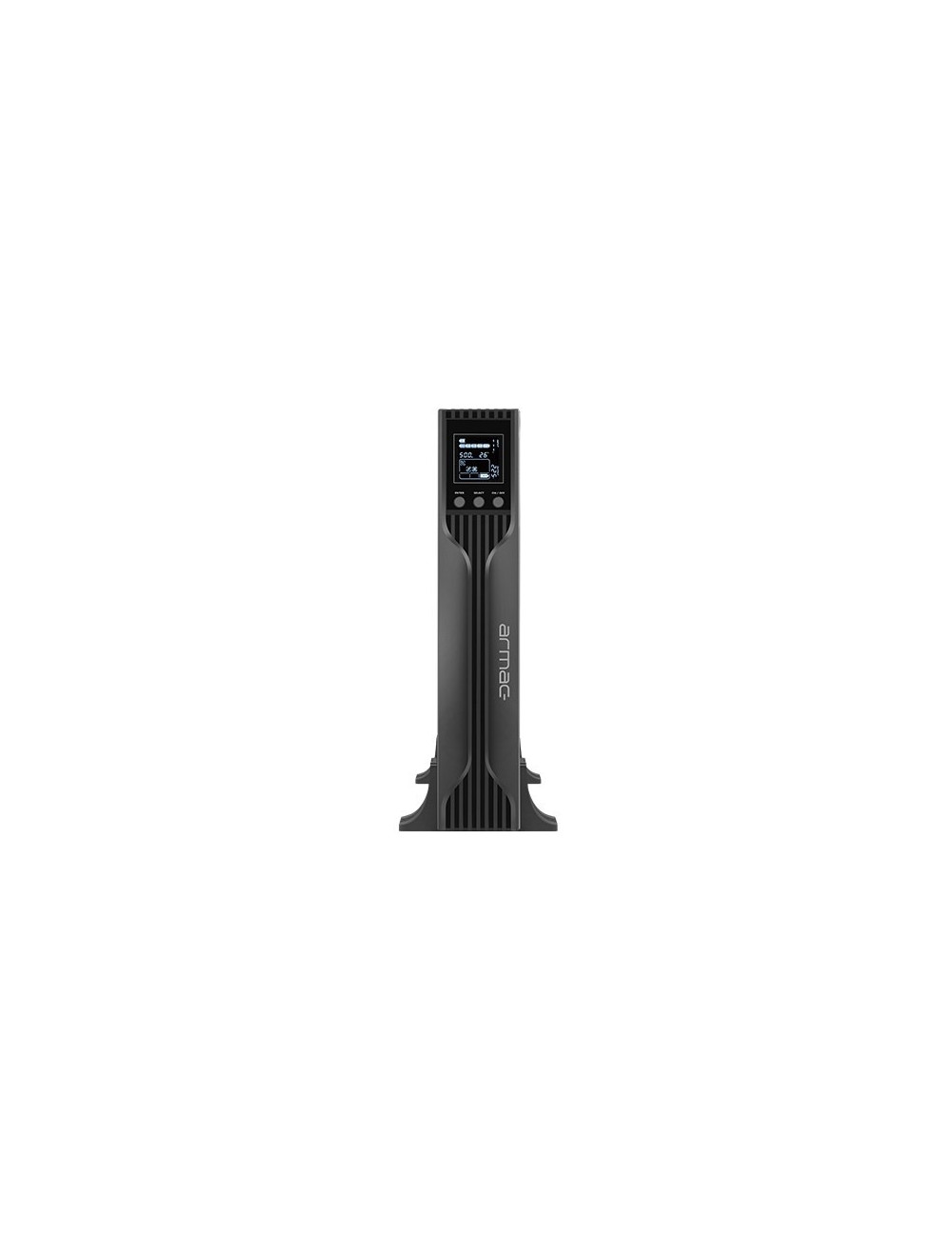

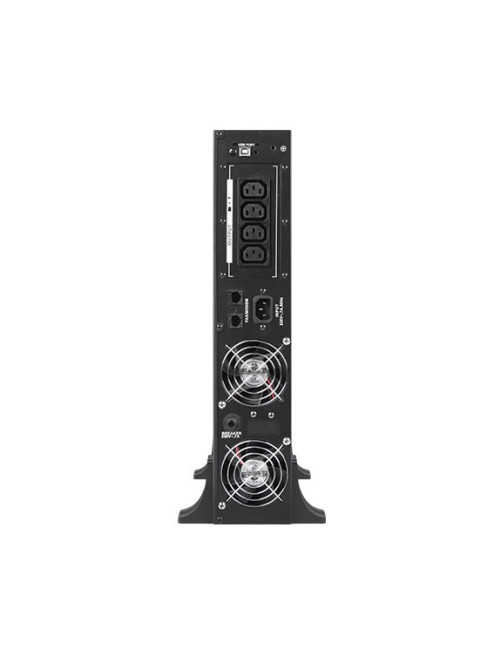

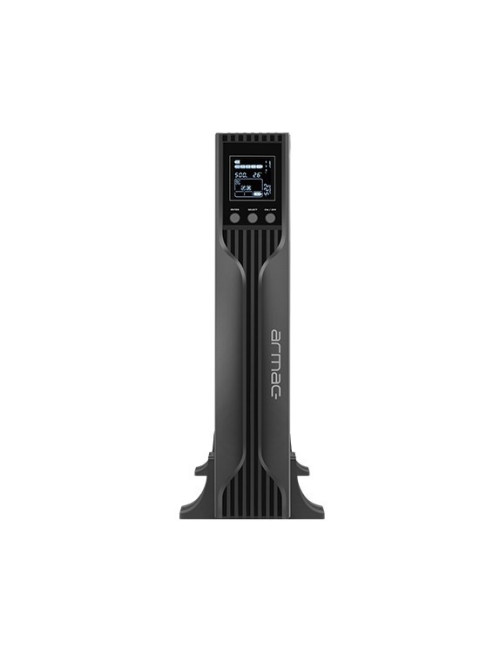

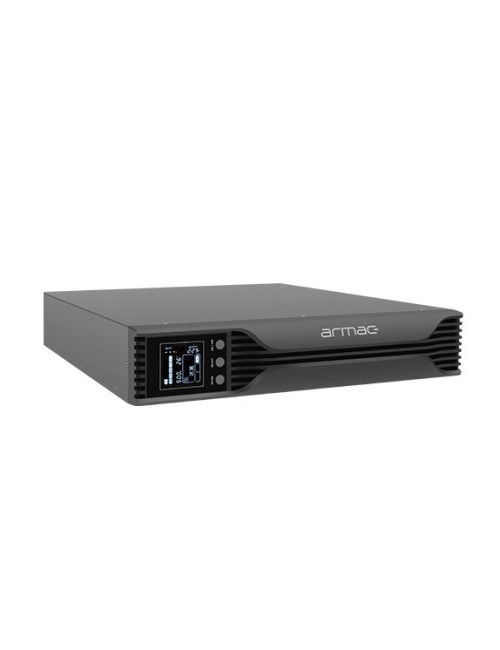

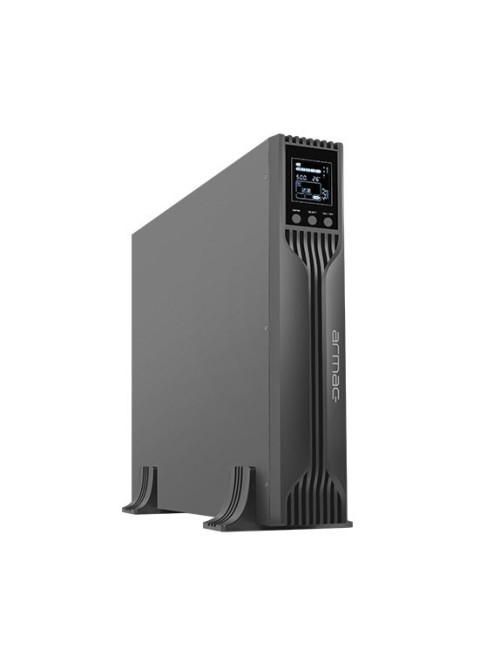

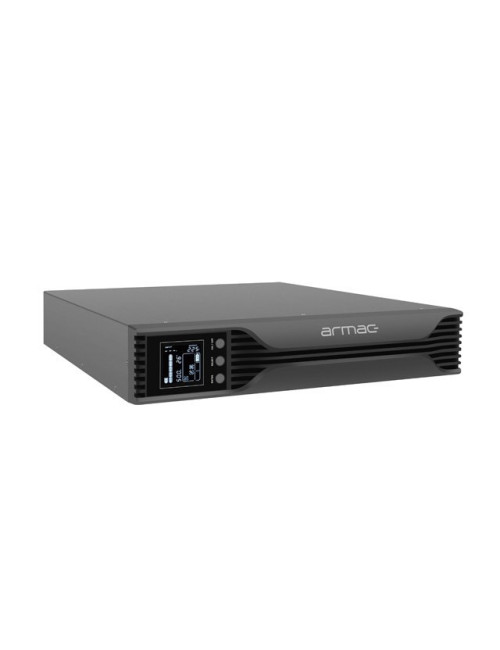

    Emergency power supply Armac UPS RACK LINE-INTERACTIVE R/1000I/PSW

    €257.75
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRCKH8
    3 Items

    Data sheet

    Width
    440 mm
    Height
    88 mm
    Depth
    440 mm
    Weight
    11.8 kg
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    20 - 95%
    Form factor
    Rackmount/Tower
    USB port
    Yes
    Battery capacity
    9 Ah
    Output power
    800 W
    Input frequency
    40 - 70 Hz
    Display type
    LCD
    Ethernet LAN (RJ-45) ports
    2
    Input operation voltage (min)
    145 V
    Power protection features
    Under voltage
    AC outlets quantity
    4 AC outlet(s)
    Output power capacity
    1 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Battery voltage
    12 V
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive
    Output frequency
    50 Hz
    Power plug
    C13 coupler
    Product colour
    Black
    Battery weight
    2.35 kg
    Emergency Power Off (EPO)
    Yes
    Emergency Power Off (EPO) connector
    Yes
    Number of output phases
    4

    Quick Compare

    Product
    		 UPS|EATON|840 Watts|1300 VA|Offline|Phase 1phase|3P1300UD UPS|EATON|840 Watts|1300 VA|Offline|Phase 1phase|3P1300UD Eaton Ellipse PRO 850 FR uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 510 W 4 AC outlet(s) Eaton 5SC500i 0.5 kVA 350 W 4 AC outlet(s) Qoltec 52285 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 2 AC outlet(s)
    Availability
    Price
    €246.06
    €248.26
    €250.76
    €251.31
    Description
    		 840 Watts | 1300 VA | Typical runtime at full load 1.25 min | Typical runtime at half load 8.5 min | Topology Offline | Phase 1phase | Output power connector type Schuko CEE 7 | Included Accessories Input cableUSB cableQuick startSafety instructions | Colour Black
    Colour
    		 Black
    Width
    		 82 mm 150 mm 385 mm
    Height
    		 260 mm 210 mm 88 mm
    Depth
    		 285 mm 240 mm 438 mm
    Weight
    		 7.3 kg 6.6 kg 10 kg
    Package depth
    		 470 mm
    Package height
    		 180 mm
    Package width
    		 550 mm
    Package weight
    		 11 kg
    Number of batteries supported
    		 2
    Operating temperature (T-T)
    		 0 - 35 °C 0 - 40 °C
    Storage temperature (T-T)
    		 -15 - 40 °C -15 - 60 °C
    Form factor
    		 Tower Tower Rackmount
    USB port
    		 Yes
    LED indicators
    		 Yes Yes Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Battery capacity
    		 7 Ah
    Control type
    		 Buttons
    Cooling type
    		 Active
    Output power
    		 510 W 350 W 1000 W
    Input frequency
    		 50/60 Hz 50 Hz
    USB 2.0 ports quantity
    		 1 1
    Display type
    		 LCD LCD LCD
    Ethernet LAN (RJ-45) ports
    		 1
    Garantija
    		 24
    Category Code
    		 UPW
    Unit Box Height
    		 0.38
    Unit Box Length
    		 0.36
    Unit Box Width
    		 0.14
    Vendor Homepage
    		 https://www.eaton.com/ua/en-gb/skuPage.3P1300UD.html
    Included Accessories
    		 Input cable USB cable Quick start Safety instructions
    Dimensions
    		 312 x 305 x 81 mm
    Efficiency
    		 97%
    Input operation voltage (min)
    		 150 V 184 V 110 V
    Power protection features
    		 Overload Overload
    Cold start
    		 Yes
    AC outlets quantity
    		 4 AC outlet(s) 4 AC outlet(s) 2 AC outlet(s)
    Output power capacity
    		 0.85 kVA 0.5 kVA 1 kVA
    Output operation voltage (max)
    		 240 V 240 V 230 V
    Waveform
    		 Sine Pure sine
    AC outlet types
    		 Type E C13 coupler Type F
    Input operation voltage (max)
    		 285 V 276 V 300 V
    Audible alarm(s)
    		 Yes
    Battery voltage
    		 24 V
    Output operation voltage (min)
    		 220 V 220 V
    UPS topology
    		 Line-Interactive Double-conversion (Online)
    Modem (RJ-11) ports
    		 1
    Typical backup time at full load
    		 5 min
    Automatic battery test
    		 Yes
    Typical backup time at half load
    		 9 min 13 min
    Surge protection
    		 Yes
    Nominal input voltage
    		 230 V
    Output frequency regulation
    		 0.05 Hz
    Output voltage regulation
    		 5%
    RS-232 ports
    		 1 1
    Operating altitude
    		 0 - 3000 m
    Serial interface type
    		 RS-232
    MODEL
    		 3P1300UD
    Output frequency
    		 50 Hz 50/60 Hz
    Noise Level
    		 40 dB 50 dB
    Power plug
    		 C14 coupler C14 coupler
    Product colour
    		 Black Black Black
    Harmonized System (HS) code
    		 85078000 85078000
    Safety
    		 IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE IEC 62040-1, CB Report (TUV)
    Serial interface
    		 Yes
    Hot-swap battery
    		 No
    Surge protection features
    		 Network
    Emergency Power Off (EPO)
    		 Yes
    Rack capacity
    		 2U
    Built-in fan
    		 Yes
    Mounting Type (Stand-alone rack)
    		 Yes
    Units per Shipping Box
    		 1
    Product Net Weight
    		 7 kg
    Unit Calculated Weight
    		 8.05 kg
    Unit Calculated Volume
    		 0.01915 cubm
    Output power capacity, W
    		 840 Watts
    Output power capacity, VA
    		 1300 VA
    Typical runtime at full load
    		 1.25 min
    Typical runtime at half load
    		 8.5 min
    Topology
    		 Offline
    Phase
    		 1phase
    Output power connector type
    		 Schuko CEE 7
    LED Displays (Battery charge/Line voltage)
    		 Yes
    LED Displays (Load)
    		 Yes
