APC

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 0.45 kVA 280 W 4 AC outlet(s)

€426.90

Tax included

Product Details
Quick Compare

Product Details

Reference ZSIAPCUPS0178

In stock 10 Items

Data sheet

Width: 432 mm
Height: 44 mm
Depth: 383 mm
Weight: 10.2 kg
Package height: 164 mm
Package width: 476 mm
Cables included: RS-232
Storage relative humidity (H-H): 0 - 95%
Manual: Yes
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -15 - 45 °C
Form factor: Rackmount/Tower
LED indicators: Battery replacement
Battery technology: Sealed Lead Acid (VRLA)
Battery life (max): 5 year(s)
Battery capacity: 108 VAh
Battery recharge time: 5 h
Output power: 280 W
Input frequency: 50/60 Hz
Input operation voltage (min): 151 V
AC outlets quantity: 4 AC outlet(s)
Output power capacity: 0.45 kVA
Waveform: Sine
Auto-restart: Yes
AC outlet types: C13 coupler
Input operation voltage (max): 302 V
Audible alarm(s): Yes
UPS topology: Line-Interactive

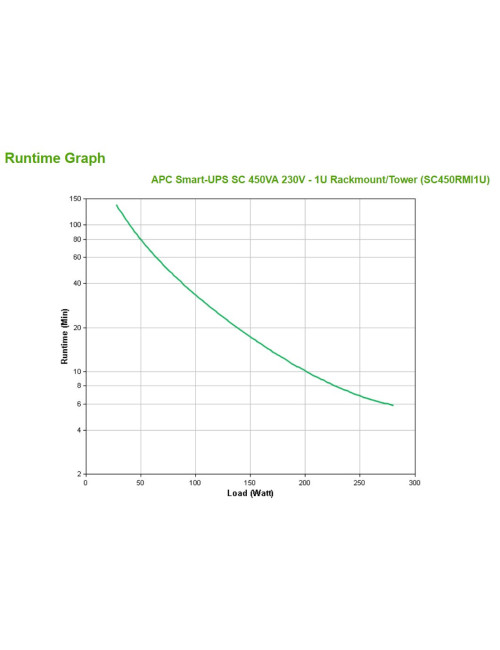

Typical backup time at full load: 5.9 min
Automatic Voltage Regulation (AVR): Yes
Automatic battery test: Yes
Typical backup time at half load: 19.4 min
Surge protection: Yes
Nominal output voltage: 230 V
Operating altitude: 0 - 3000 m
Serial interface type: RS-232
Noise Level: 38 dB
Serial ports quantity: 1
Surge energy rating: 320 J
Power plug: C14 coupler
Non-operating altitude: 0 - 15000 m
Product colour: Grey
Harmonized System (HS) code: 85078000
Serial interface: Yes
Hot-swap battery: Yes
Compliance certificates: RoHS
Total carbon footprint (kg of CO2e): 484.92
Audible alarm modes: Low battery alarm, Overload alarm
Hold time (max): 8 ms
Hold time (min): 4 ms
Surge protection features: Digital Subscriber Line (DSL)
Number of output IEC jumpers: 2
SmartSlot: No
Rack capacity: 1U
Rack mount kit: Yes
Management card included: No
Warnings: Use the appliance in well-ventilated areas to avoid overheating.
SmartConnect port: No
