EATON

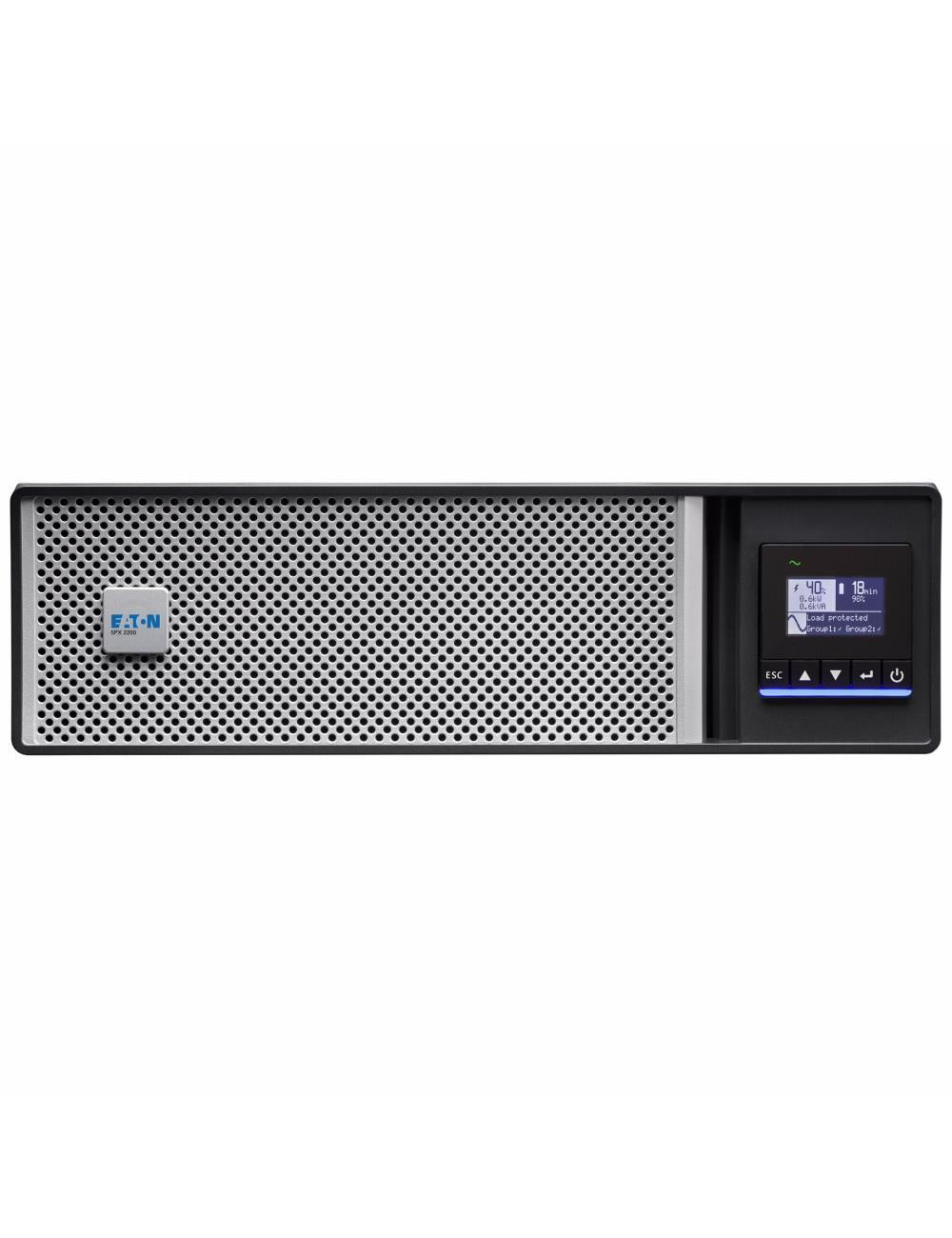

UPS|EATON|2200 Watts|2200 VA|Wave form type Sinewave|LineInteractive|Phase 1 phase|Rack 3U|5PX2200IRT3UG2

€1,339.82

Tax included

Quantity

Last items in stock

Add to favorites Add to compare

Exceptional efficiency, manageability and energy metering capabilities for IT managers

Performance and efficiency

- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

Management and Cybersecurity

- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.

Product Details

Reference 5PX2200IRT3UG2

In stock 1 Item

Data sheet

Garantija: 24
Category Code: UPW
Unit Box Height: 0.29
Unit Box Length: 0.77
Unit Box Width: 0.58
Vendor Homepage: https://www.eaton.com/
Units per Shipping Box: 1
Unit Calculated Weight: 34.9 kg
Unit Calculated Volume: 0.1295 cubm
Summary: Eaton 5PX2200IRT3UG2. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RS-232. Form factor: Rackmount/Tower, Product colour: Bl
Weight & dimensions (Weight): 27500 g
Logistics data (Harmonized System (HS) code): 85078000
Weight & dimensions (Width): 438 mm
Weight & dimensions (Depth): 483 mm
Weight & dimensions (Height): 129 mm
Design (Product colour): Black
Sustainability (Sustainability certificates): ENERGY STAR
Certificates (Certification): IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Design (Form factor): Rackmount/Tower
Sustainability (Sustainability compliance): Yes
Certificates (Compliance certificates): CE
Safety regulation & standards (Safety): IEC/EN 62040-1, UL1778, CSA22.2
Design (LED indicators): Yes
Ports & interfaces (USB port): Yes
Features (Input frequency): 47/70 Hz
Features (Input operation voltage (max)): 294 V
Features (Input operation voltage (min)): 160 V
Features (Noise level): 40 dB
Features (Output power): 2200 W
Features (Output power capacity): 2.2 kVA
Features (Power protection features): Overdischarge
Features (UPS topology): Line-Interactive
Ports & interfaces (AC outlet types): C13 coupler/C19 coupler
Battery (Automatic battery test): Yes
Design (Display type): LCD
Features (Waveform): Pure sine
Ports & interfaces (Power plug): C20 coupler
Ports & interfaces (Serial interface): Yes
Ports & interfaces (Serial interface type): RS-232
Ports & interfaces (Serial ports quantity): 1
Design (Rack capacity): 3U
Battery (Hot-swap battery): Yes
Packaging content (Management card included): No
Other features (Nominal output voltage): 230 V
Other features (Output connections): 8 x IEC C13 (10A) 2 x IEC C19 (16A)

Quick Compare

Product	APC Easy UPS On-Line SRV RM 3000VA 2700W 230V with Rail Kit	Eaton 5SC2200IRT uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
Availability
Price	€1,337.45	€1,343.98
Description
Width	438 mm	441 mm
Height	86 mm	86.2 mm
Depth	632 mm	552 mm
Weight	28.5 kg	26.5 kg
Package depth	794 mm
Package height	228 mm
Package width	570 mm
Package weight	32.5 kg
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-20 - 50 °C
Form factor		Rackmount/Tower
USB port	Yes	Yes
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Output power	2700 W	1980 W
Input frequency	40 - 70 Hz	45/65 Hz
Display type		LED
Input operation voltage (min)	110 V	184 V
Power protection features		Overdischarge
AC outlets quantity		9 AC outlet(s)
Output power capacity	3 kVA	2.2 kVA
Output operation voltage (max)		240 V
Waveform	Sine
AC outlet types	IEC 60320	C19 coupler
Input operation voltage (max)	285 V	276 V
Battery voltage	72 V
Output operation voltage (min)	230 V	220 V
UPS topology		Line-Interactive
Automatic battery test		Yes
Output frequency regulation		50/60 Hz
Operating altitude	0 - 3000 m
International Protection (IP) code	IP20
Serial interface type		RS-232
Output frequency	50/60 Hz
Noise Level	50 dB	45 dB
Serial ports quantity		1
Surge energy rating	945 J
Power plug	C20 coupler	C20 coupler
Product colour	Black	Black
Harmonized System (HS) code		85078000
Warranty period	2 year(s)
Serial interface		Yes
SmartSlot	Yes
Crest factor	3:1
Rack capacity	2U
Management card included	No
Warnings		Keep away from sources of fire and water.
SmartConnect port	No
