APC

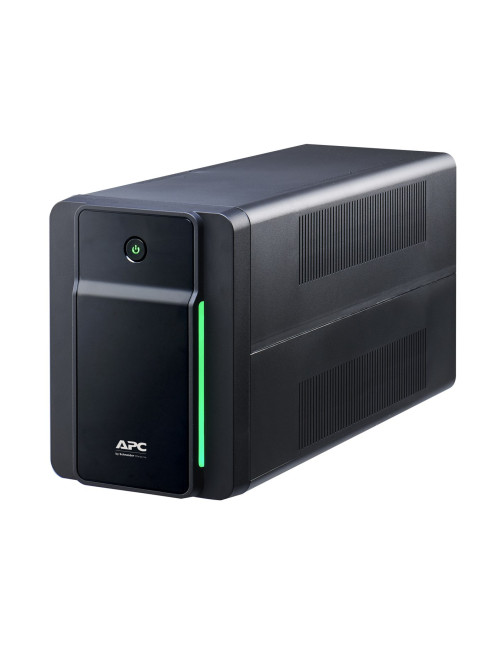

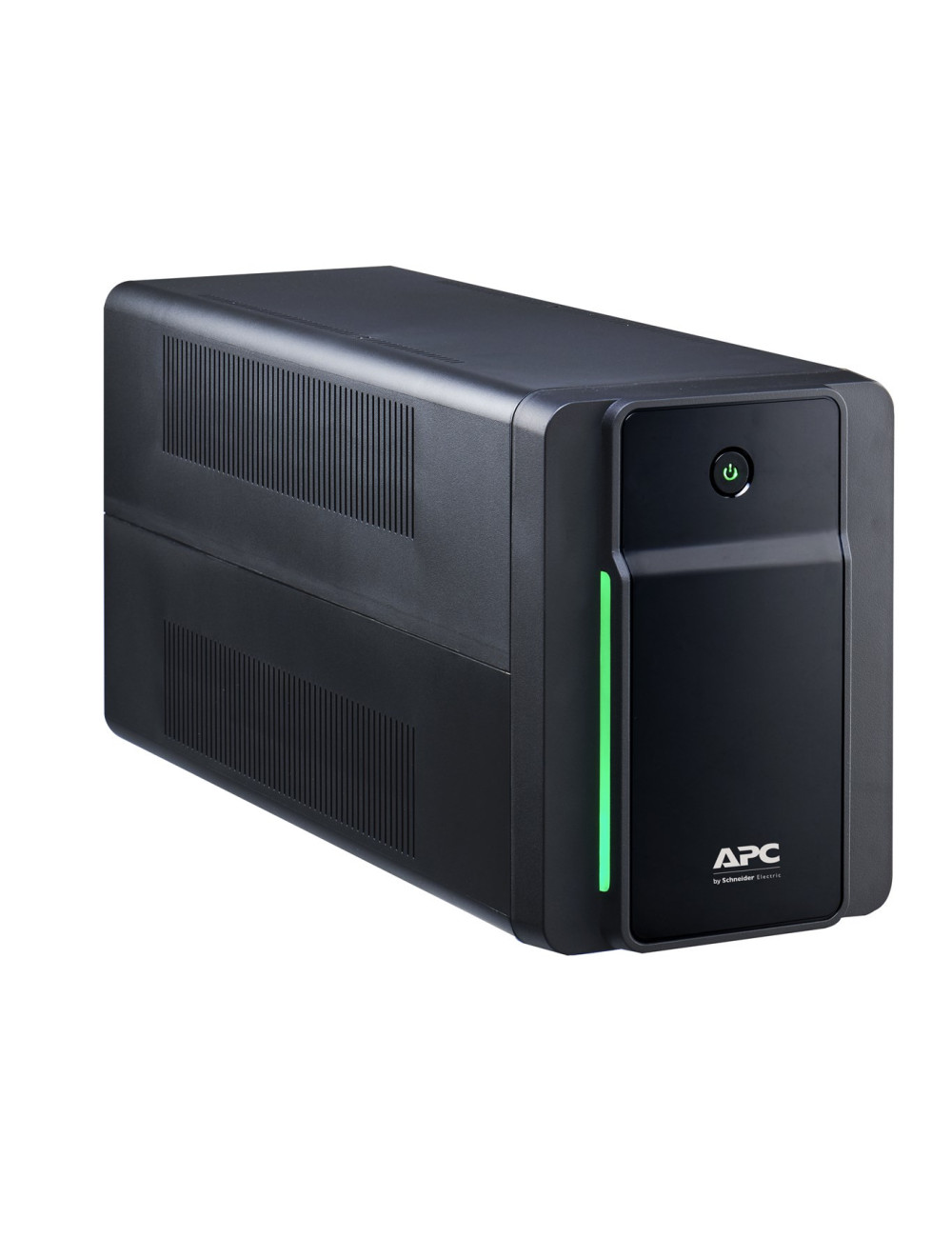

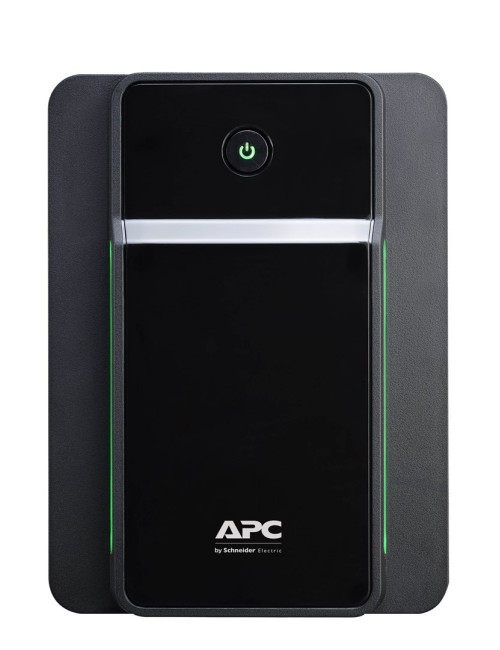

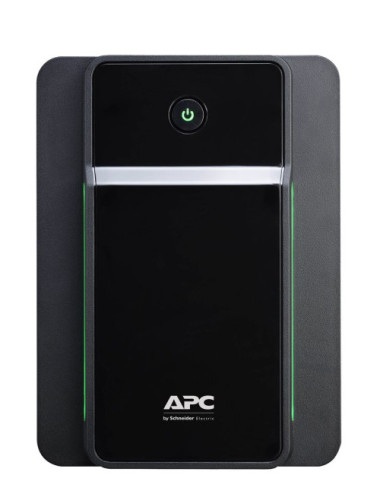

    APC Back-UPS, 1200VA, Tower, 230V, 6x IEC C13 outlets, AVR

    €184.52
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    WLONONWCRANGF
    3 Items

    Data sheet

    Cable length
    1.2 m
    Width
    140 mm
    Height
    190 mm
    Depth
    390 mm
    Weight
    7.6 kg
    Package depth
    495 mm
    Package height
    297 mm
    Package width
    235 mm
    Package weight
    8.6 kg
    Cables included
    Input power cable
    Manual
    Yes
    Operating temperature (T-T)
    0 - 40 °C
    Operating relative humidity (H-H)
    0 - 95%
    Storage temperature (T-T)
    -15 - 40 °C
    Form factor
    Compact
    USB port
    Yes
    LED indicators
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Battery life (max)
    2 year(s)
    Battery recharge time
    8 h
    Output power
    650 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Response time
    6 ms
    Ethernet LAN (RJ-45) ports
    2
    Input operation voltage (min)
    140 V

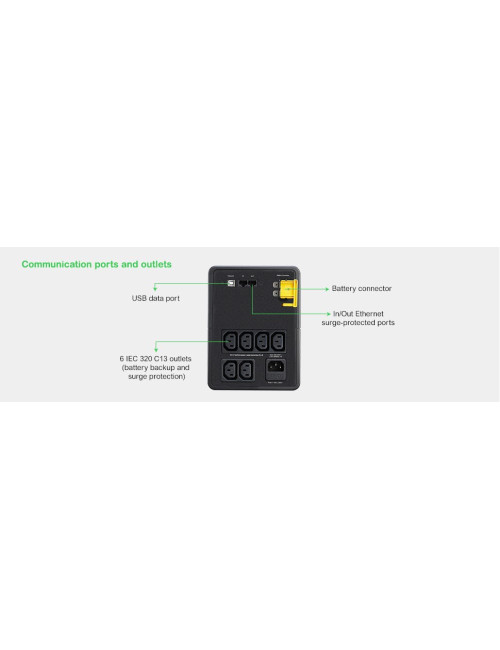

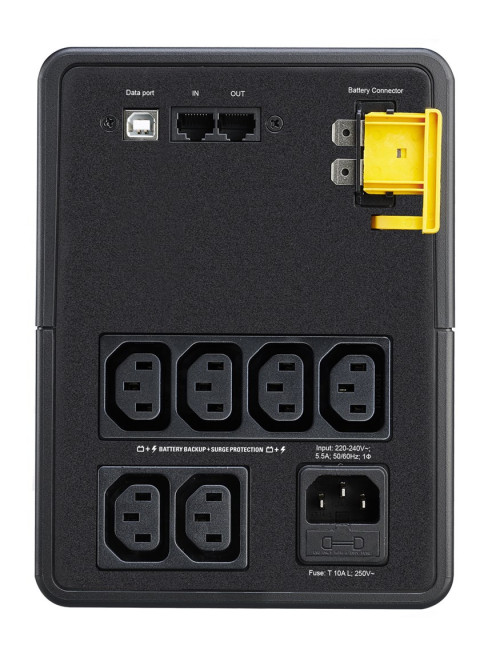

    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    1.2 kVA
    Output operation voltage (max)
    230 V
    Waveform
    Sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Audible alarm(s)
    Yes
    Output operation voltage (min)
    230 V
    UPS topology
    Line-Interactive

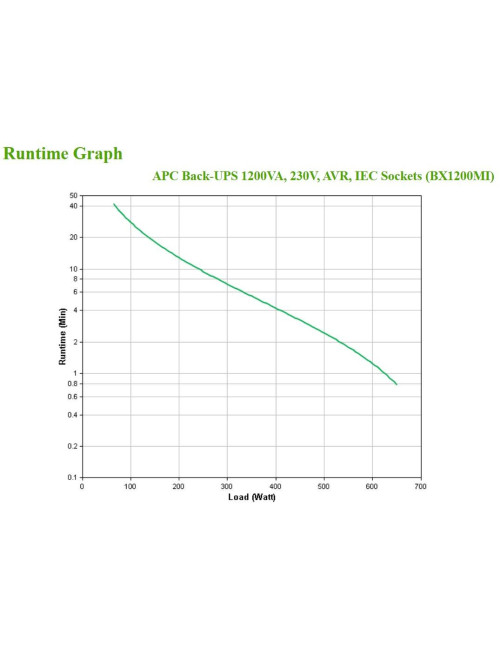

    Typical backup time at full load
    1 min

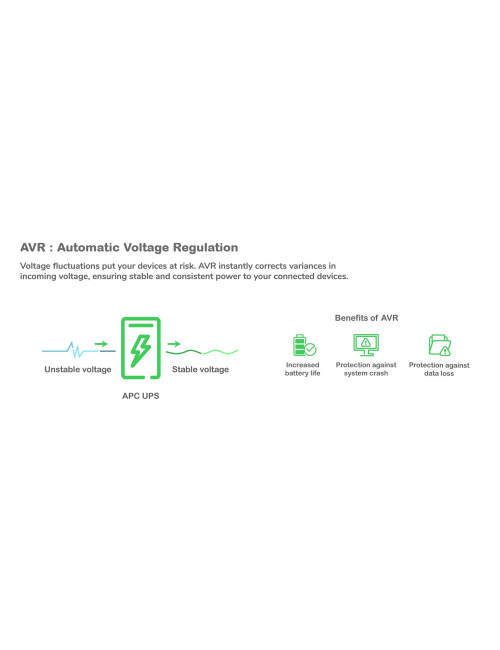

    Automatic Voltage Regulation (AVR)
    Yes
    Typical backup time at half load
    5 min
    Output frequency regulation
    0.5 Hz
    Output voltage regulation
    10%
    Operating altitude
    0 - 3000 m
    International Protection (IP) code
    IP20
    Output frequency
    50/60 Hz
    Noise Level
    40 dB
    Surge energy rating
    273 J
    Power plug
    C14 coupler
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    USB port type
    USB Type-B
    Compliance certificates
    RoHS
    Audible alarm modes
    Low battery alarm
    SmartSlot
    No
    Input power factor
    0.54
    Management card included
    No
    SmartConnect port
    No
