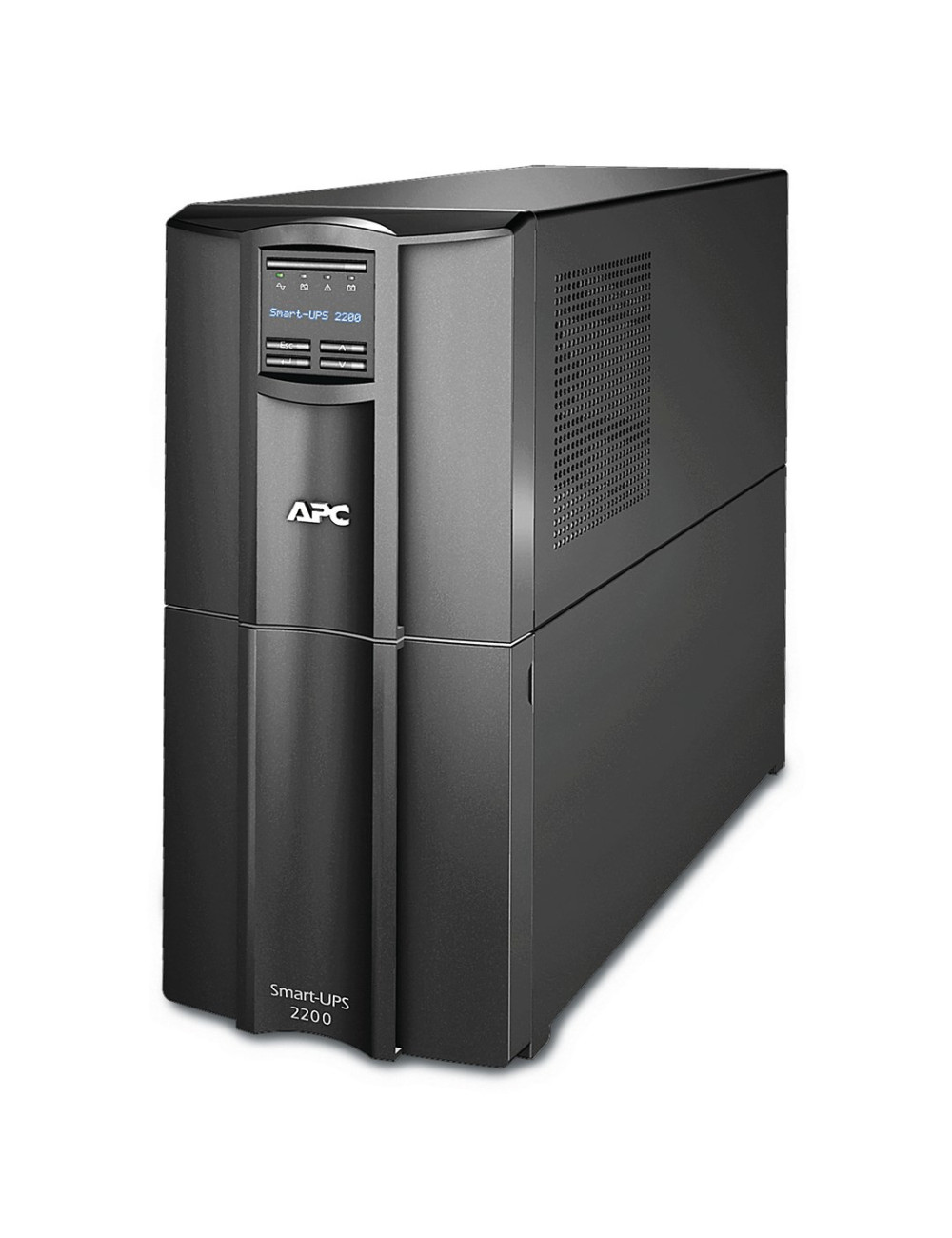

APC Smart-UPS SMT2200IC - UPS - 1980 W

Product Details

Reference WLONONWCROD08

In stock 2 Items

Data sheet

Width

197 mm

Height

435 mm

Depth

544 mm

Weight

48.8 kg

Package depth

762 mm

Package height

699 mm

Package width

381 mm

Package weight

61.9 kg

Cables included

RS-232, USB cable

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 45 °C

USB port

Yes

LED indicators

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

5 year(s)

Battery recharge time

3 h

Output power

1980 W

Input frequency

50/60 Hz

USB 2.0 ports quantity

1

Response time

6 ms

Display type

LCD

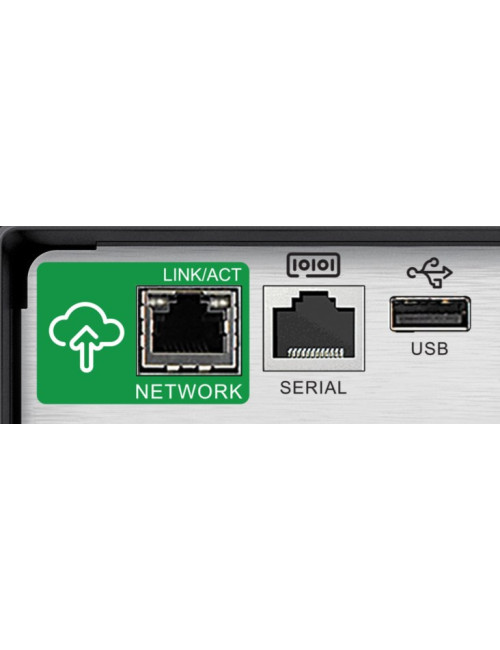

Ethernet LAN (RJ-45) ports

1

Input operation voltage (min)

151 V

Power protection features

Overload

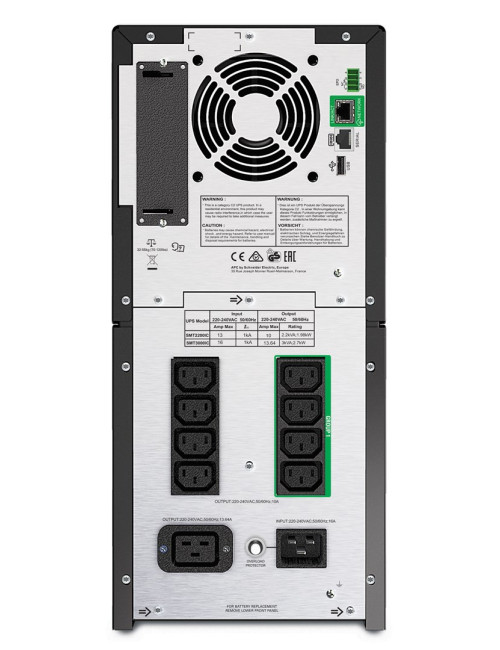

AC outlets quantity

9 AC outlet(s)

Output power capacity

2.2 kVA

Output operation voltage (max)

240 V

Waveform

Sine

Auto-restart

Yes

AC outlet types

IEC 60320

Input operation voltage (max)

302 V

Audible alarm(s)

Yes

Output operation voltage (min)

220 V

UPS topology

Line-Interactive

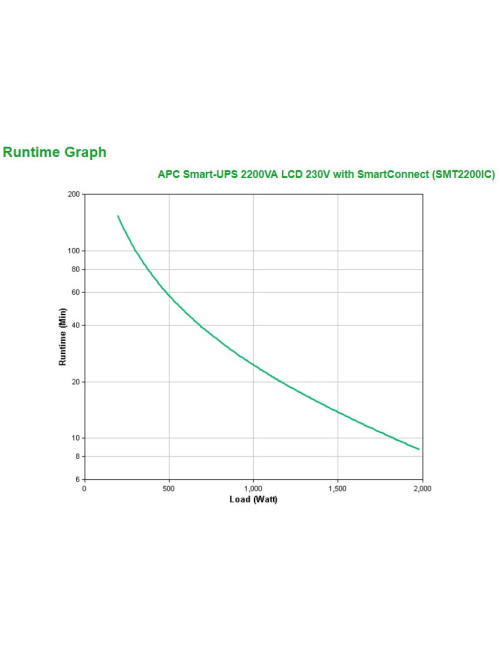

Typical backup time at full load

8.7 min

Typical backup time at half load

25 min

Operating altitude

0 - 3000 m

Noise Level

45 dB

Serial ports quantity

1

Surge energy rating

365 J

Non-operating altitude

0 - 15000 m

Product colour

Black

Harmonized System (HS) code

85078000

Sustainability certificates

Green Premium

Products per pallet

9 pc(s)

Software CD

Yes

Serial interface

Yes

USB port type

USB Type-A

Output voltage Total Harmonic Distortion (THD)

5%

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

3715.93

Audible alarm modes

Alarm when on battery, Low battery alarm, Battery replacement

SmartSlot

Yes

Emergency Power Off (EPO)

Yes
