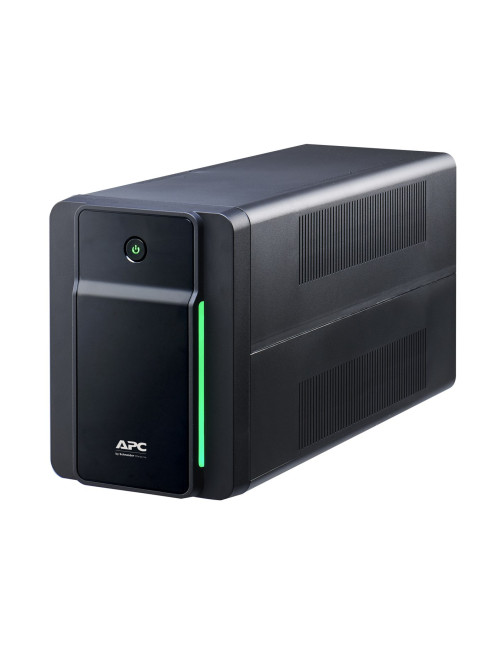

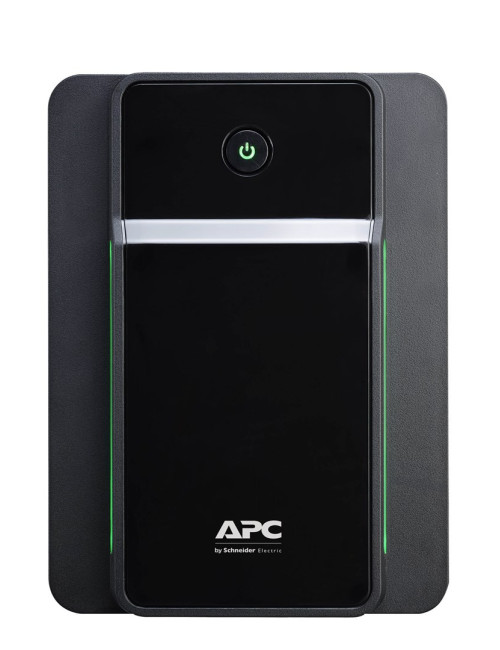

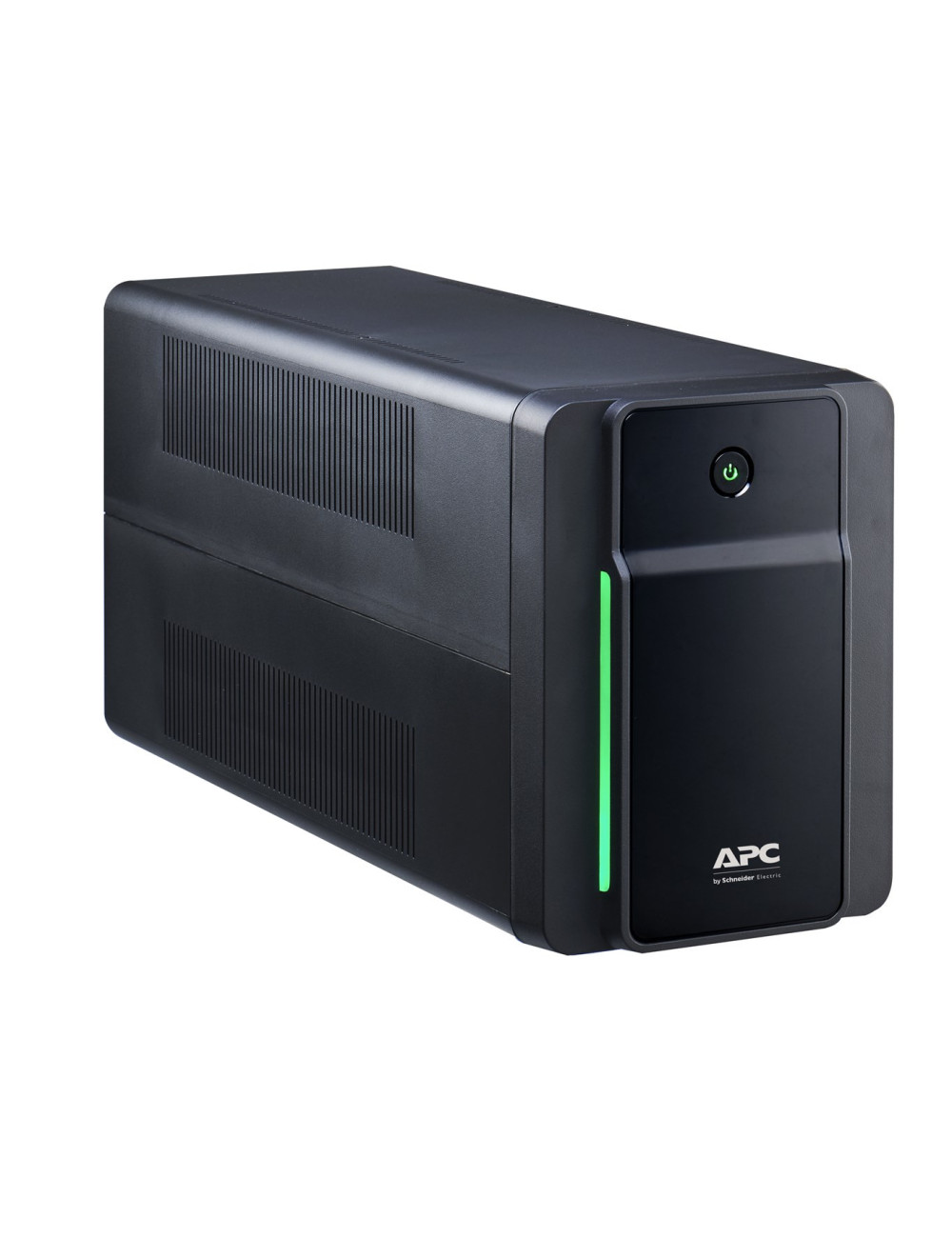

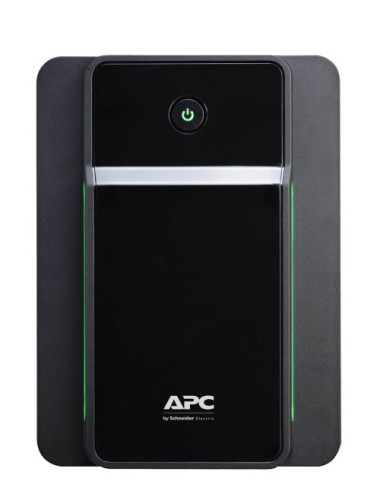

APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR

Product Details

Reference WLONONWCRAMJA

In stock 3 Items

Data sheet

Cable length

1.2 m

Width

140 mm

Height

190 mm

Depth

390 mm

Weight

10.3 kg

Package height

190 mm

Package width

390 mm

Cables included

Input power cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-15 - 40 °C

Form factor

Compact

USB port

Yes

LED indicators

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery life (max)

2 year(s)

Battery capacity

7 Ah

Battery recharge time

8 h

Output power

900 W

Input frequency

50/60 Hz

USB 2.0 ports quantity

1

Response time

6 ms

Ethernet LAN (RJ-45) ports

2

Input operation voltage (min)

140 V

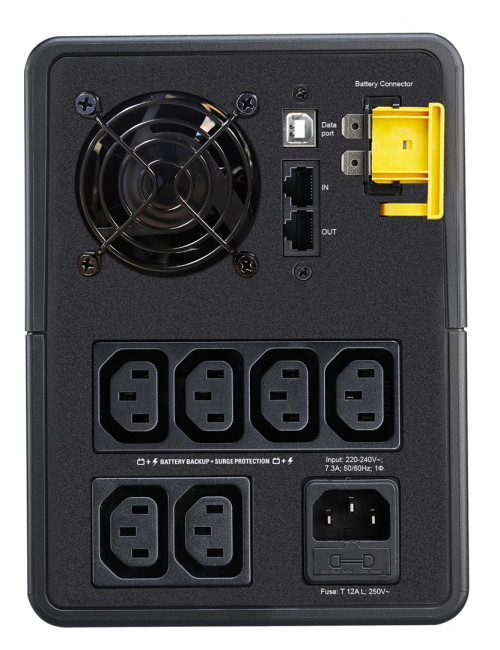

AC outlets quantity

6 AC outlet(s)

Output power capacity

1.6 kVA

Output operation voltage (max)

230 V

Waveform

Sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

24 V

Output operation voltage (min)

230 V

UPS topology

Line-Interactive

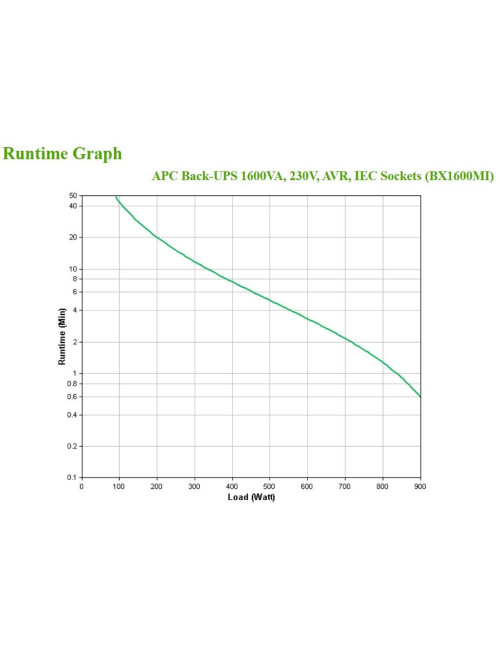

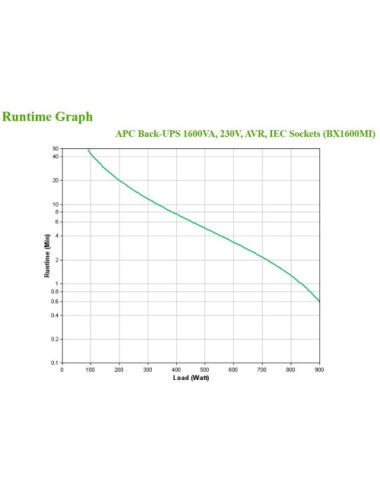

Typical backup time at full load

1 min

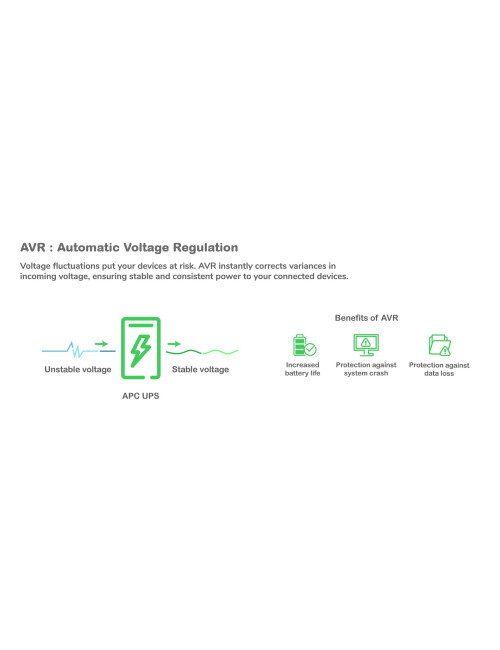

Automatic Voltage Regulation (AVR)

Yes

Typical backup time at half load

6.5 min

Output frequency regulation

0.5 Hz

Output voltage regulation

10%

Operating altitude

0 - 3000 m

International Protection (IP) code

IP20

Output frequency

50/60 Hz

Noise Level

40 dB

Surge energy rating

273 J

Power plug

C13 coupler

Product colour

Black

Harmonized System (HS) code

85078000

USB port type

USB Type-B

Compliance certificates

RoHS

Audible alarm modes

Low battery alarm

Input power factor

0.56

Built-in fan

Yes

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
