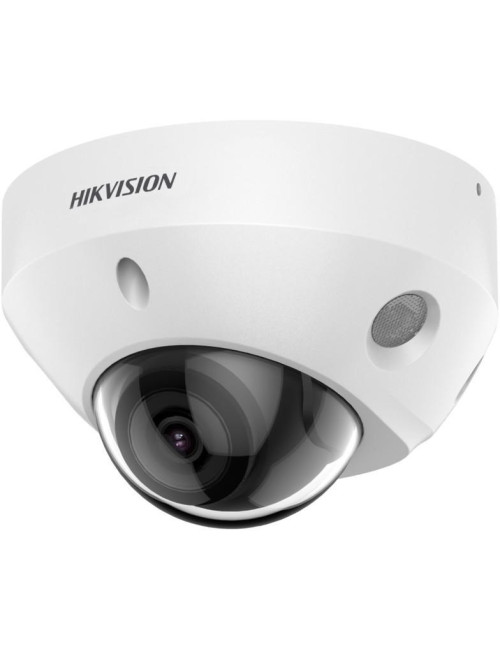

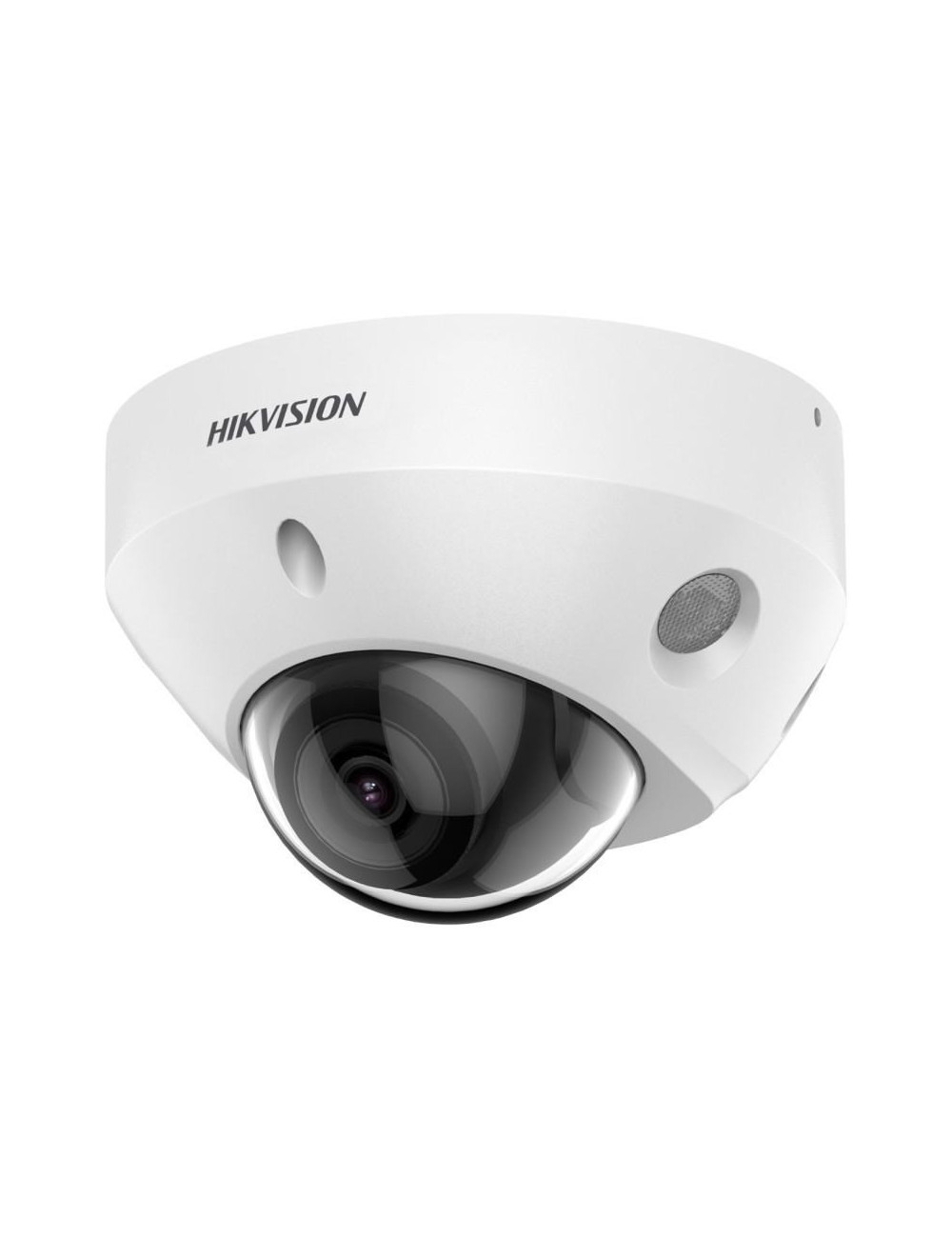

Hikvision Dome ColorVu IP DS-2CD2547G2-LS(2.8mm)(C) 4MP

Product Details

Reference WLONONWCRDZZ7

In stock 86 Items

Data sheet

Type

IP security camera

Height

72.6 mm

Connectivity technology

Wired

Weight

400 g

Package depth

134 mm

Package height

108 mm

Package width

134 mm

Package weight

635 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Sample rate

48 kHz

Bit rate

32 Kbps - 8 Mbps

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSDXC

Maximum memory card size

256 GB

Power consumption (max)

6.5 W

Maximum resolution

2688 x 1520 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1 channels

Housing material

Aluminium

Networking standards

IEEE 802.3af

Ethernet LAN

Yes

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Password protection

Yes

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

Voice codecs

G.722.1

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Pan range

-30 - 30°

Video compression formats

H.264+

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

61°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Lens viewing angle, horizontal

112°

Number of sensors

1

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Anti-flicker

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

8 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Saturation

IK code

IK08

Audio input channels

1 channels

Detect distance

58 m

Observe distance

23 m

Recognize distance

11 m

Identify distance

6 m
