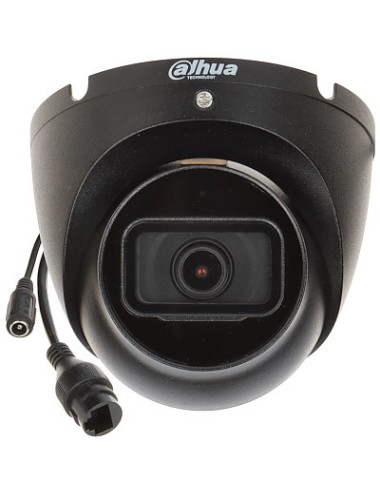

IP Network Camera 8MP HDW3842EM-S 2.8mm Black
    DAHUA TECHNOLOGY CO., LTD

    IP Network Camera 8MP HDW3842EM-S 2.8mm Black

    €231.87
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/1.8" CMOS

    Max. Resolution

    3840 (H) × 2160 (V)

    ROM

    128 MB

    RAM

    1 GB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.003 lux@F1.6 (Color, 30 IRE)

    0.0005 lux@F1.6 (B/W, 30 IRE)

    0 lux (Illuminator on)

    S/N Ratio

    > 56 dB

    Illumination Distance

    Up to 30 m (98.42 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    2 (IR LED)

    Angle Adjustment

    Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 111°; V: 59°; D: 131°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 1.8 m (5.91 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    84.5 m
    (277.23 ft)

    34.2 m
    (112.20 ft)

    17.1 m
    (56.10 ft)

    8.5 m
    (27.89 ft)





    Intelligence

    IVS (Perimeter Protection)

    Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

    AI SSA

    Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions

    Quick Pick

    With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+
    Smart H.264+

    AI Coding

    AI H.265
    AI H.264

    Video Frame Rate

    Main stream: 3840 × 2160 @ (1–25/30) fps
    Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
    Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

    Stream Capability

    3 streams

    Resolution

    8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
    1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 3 kbps–16384 kbps
    H.265: 3 kbps–16384 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    Scene Self-adaptation (SSA)

    Yes

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Defog

    Yes

    AFSA

    Yes

    Image Rotation

    0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in Mic

    Yes, built-in Mic

    Audio Compression

    G.711a; G.711Mu; PCM; G.726; G.723

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Network Protocol

    IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

    Cyber Security

    Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI

    User/Host

    20 (Total bandwidth: 64 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 256 G); NAS

    Browser

    IE:IE11
    Chrome
    Firefox

    Management Software

    SmartPSS Lite; DSS; DMSS

    Mobile Client

    IOS; Android

    Certification

    Certifications

    CE-LVD: EN62368-1;
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    Power

    Power Supply

    12 VDC/PoE (802.3af)

    Power Consumption

    Basic: 3.8 W (12 VDC); 4.8 W (PoE)
    Max. (WDR + IR intensity + Intelligence): 7.8 W (12 VDC); 9.1 W (PoE)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    ?95%

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    ?95%

    Protection

    IP67

    Structure

    Casing

    Metal

    Product Dimensions

    99.2 mm × ?106.0 mm (3.91" × ?4.17")

    Net Weight

    500 g (1.10 lb)

    Gross Weight

    770 g (1.70 lb)
