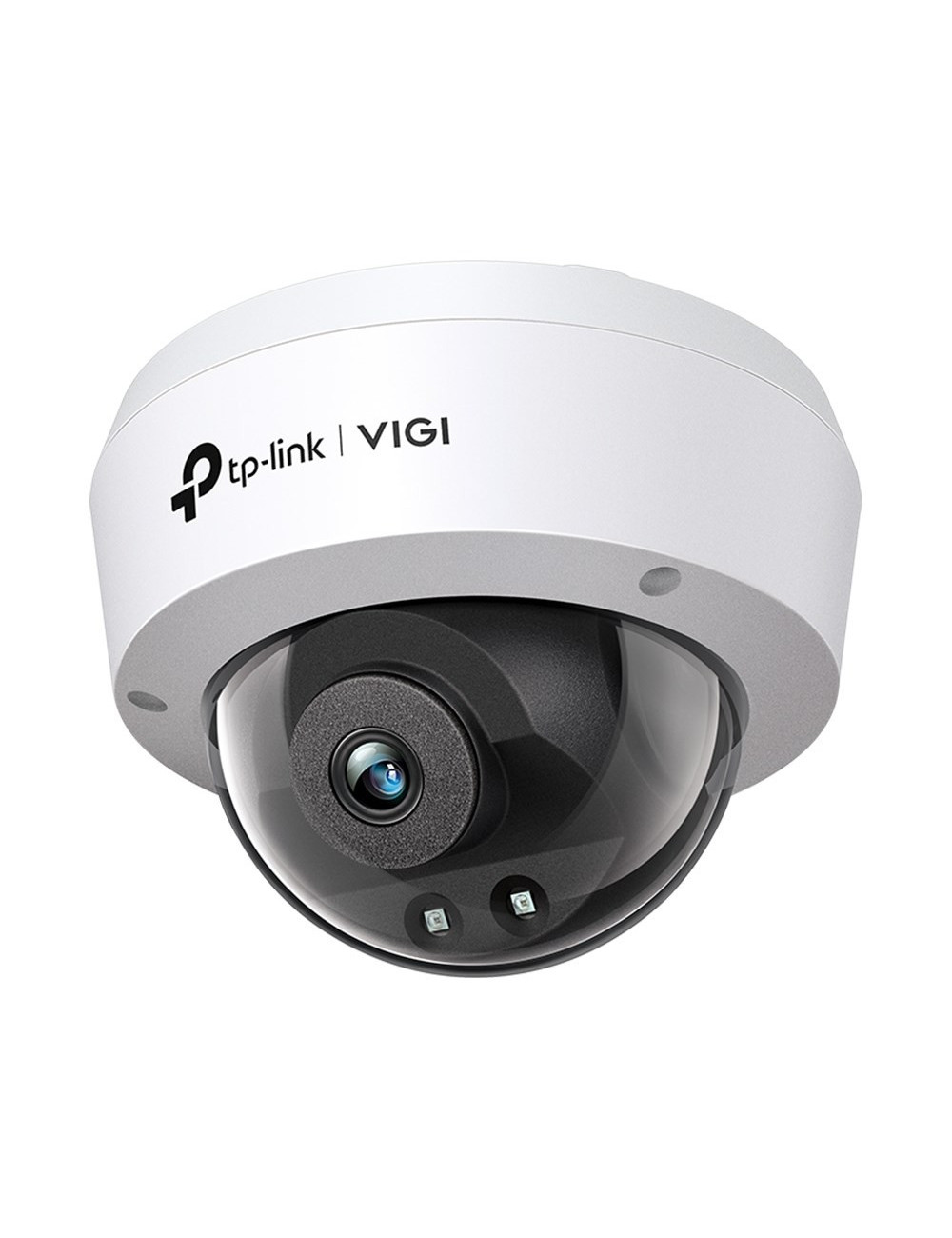

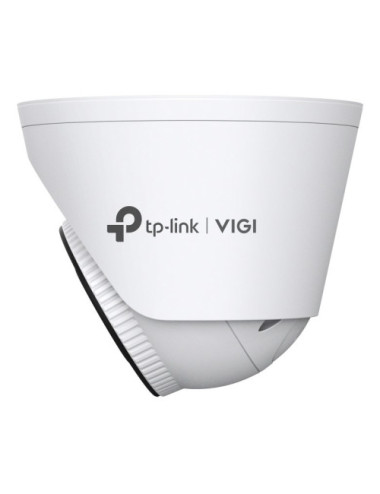

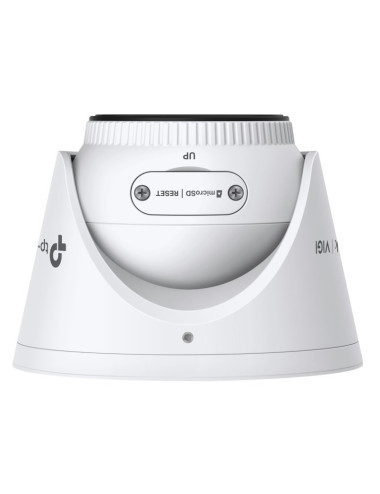

TP-Link VIGI 4MP IR Dome Network Camera

Product Details

Reference WLONONWCRCNWP

In stock 11 Items

Data sheet

Type

IP security camera

Width

115 mm

Height

86 mm

Depth

115 mm

Connectivity technology

Wired

Package depth

193 mm

Package height

120 mm

Package width

153 mm

Package weight

450 g

Power source type

PoE

Operating temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

64 Kbps - 4 Mbps

Sensor type

CMOS

Wi-Fi

No

Power consumption (max)

5 W

Maximum resolution

2560 x 1440 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Web-based management

Yes

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Password protection

Yes

Frame Rate

30 fps

Mounting kit

Yes

Product colour

Black

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0 lx

Lens viewing angle, diagonal

88.7°

Video compression formats

H.265

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Built-in HDD

No

Lens viewing angle, vertical

41.5°

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Lens diameter

4 mm

Lens viewing angle, horizontal

75.1°

Infra-red wavelength

850 nm

Mirror

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Crossing line

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Number of illumination LEDs

1

HTTPS encryption

Yes

Image quality adjustment

Sharpness

IK code

IK10

Digest authentication

Yes

Number of simultaneous live view channels

3 channels

Basic event

Motion Detection, Camera Tampering Detection, Exception

Management software

VIGI App, VIGI Security Manager, VIGI NVR

Compliance certificates

CE
