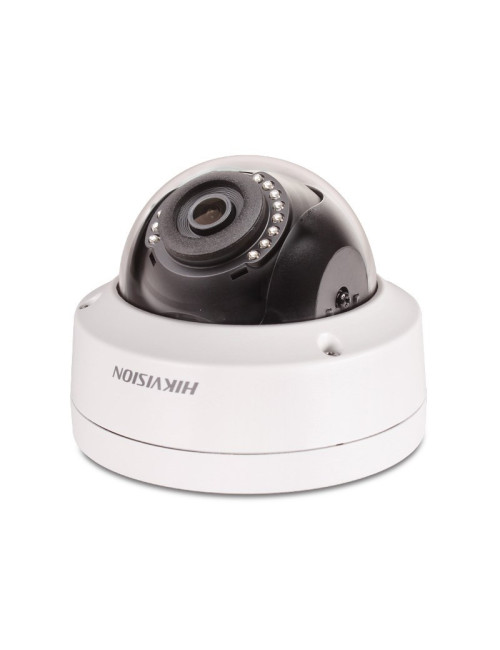

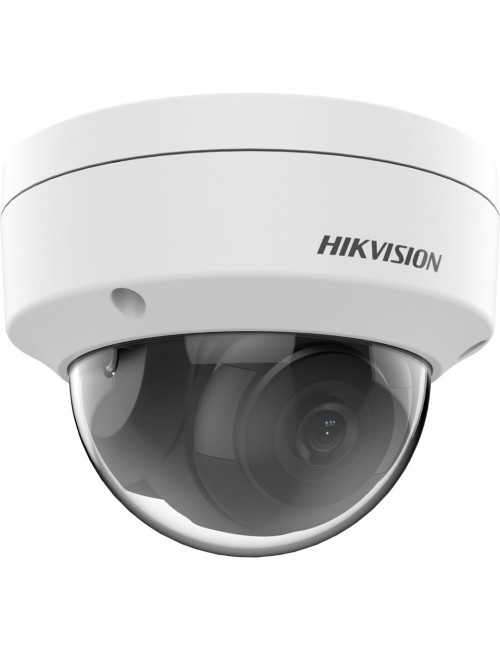

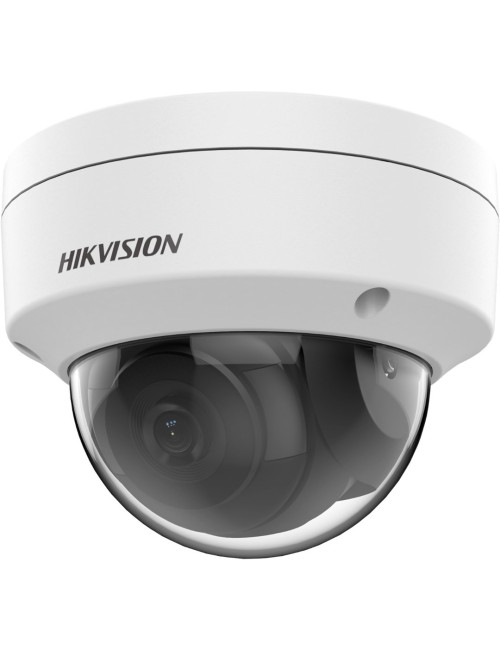

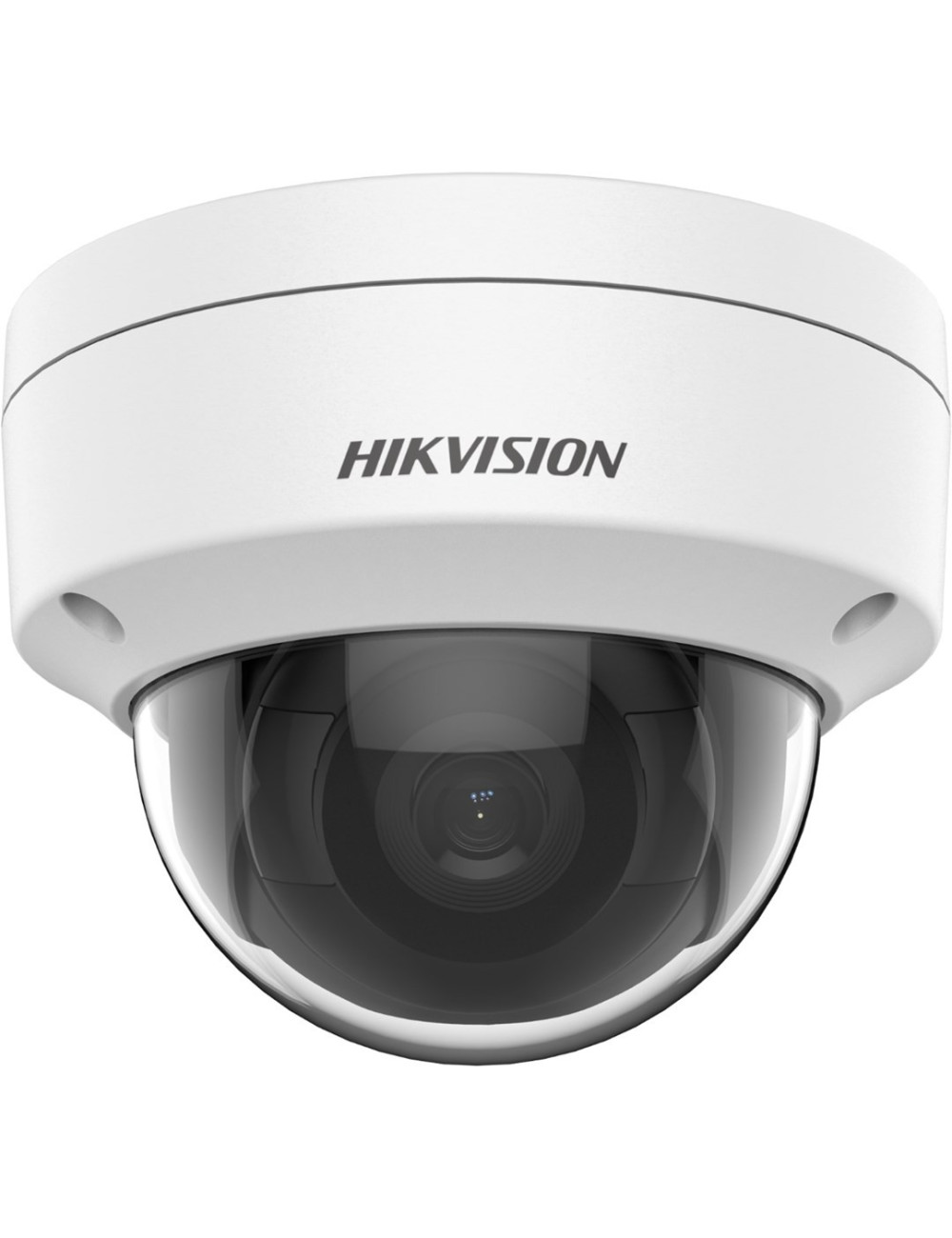

HIKVISION DS-2CD1121-I (F) (2.8MM) IP CAMERA

Product Details

Reference WLONONWCRAHZA

In stock 37 Items

Data sheet

Type

IP security camera

Height

82.4 mm

Connectivity technology

Wired

Weight

410 g

Package depth

134 mm

Package height

108 mm

Package width

134 mm

Package weight

610 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Form factor

Dome

Bluetooth

No

Noise reduction

Yes

Sensor type

CMOS

Wi-Fi

No

Power consumption (max)

5 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

Housing material

Plastic

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 960

Diameter

11 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Quality of Service (QoS) support

Yes

Password protection

Yes

Languages support

English

Frame Rate

30 fps

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

LED type

IR

Night vision

Yes

Total megapixels

2 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Pan range

0 - 355°

Video compression formats

H.264

DC output current

0.4 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

60°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

2

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Anti-flicker

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

IP address filtering

Yes

Gain control type

Auto

Privacy masking

Yes

Power consumption (Power over Ethernet (PoE))

6.5 W

Image quality adjustment

Saturation

IK code

IK10

Warnings

Avoid direct contact with water to prevent electrical damage.
