Product Details
Data sheet

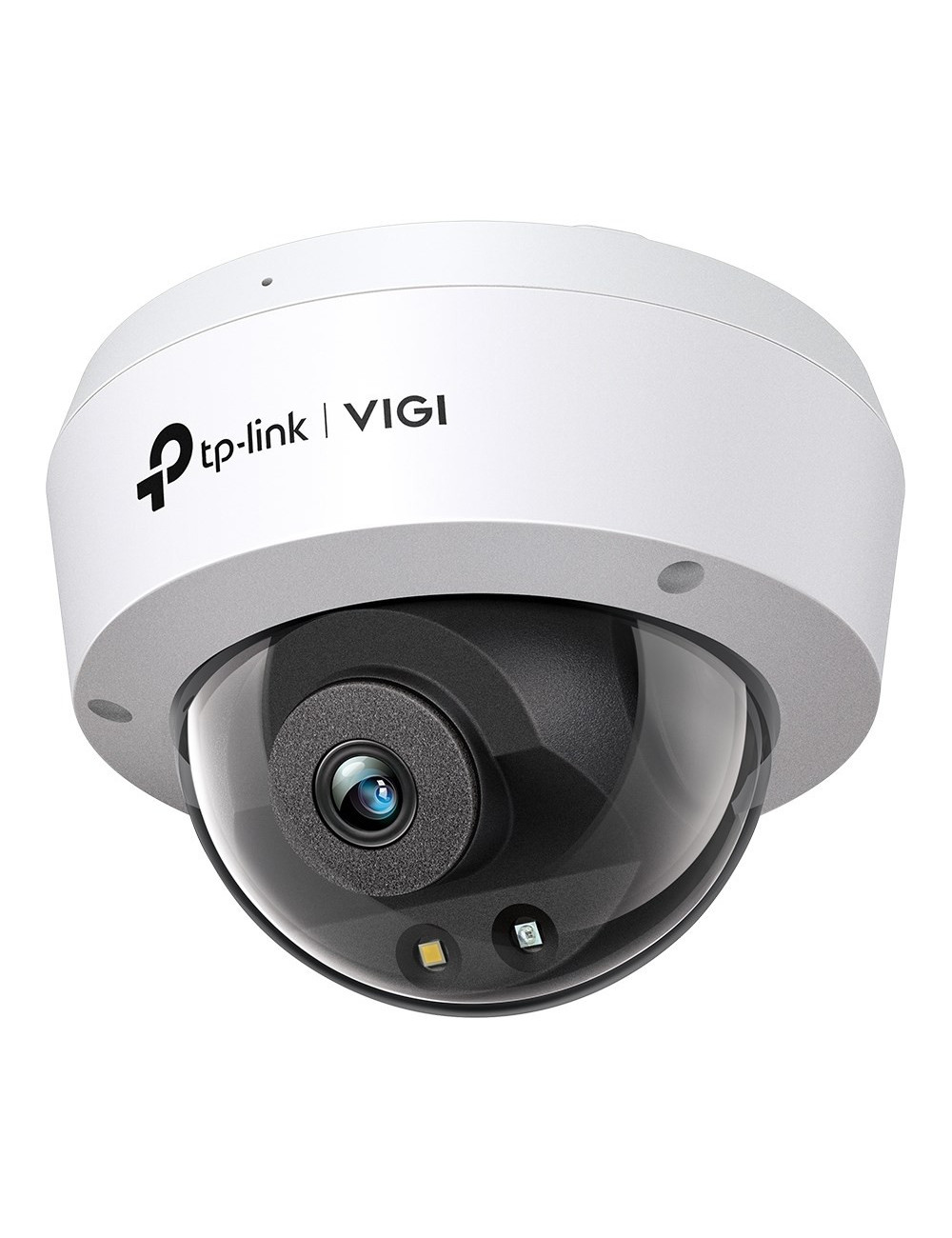

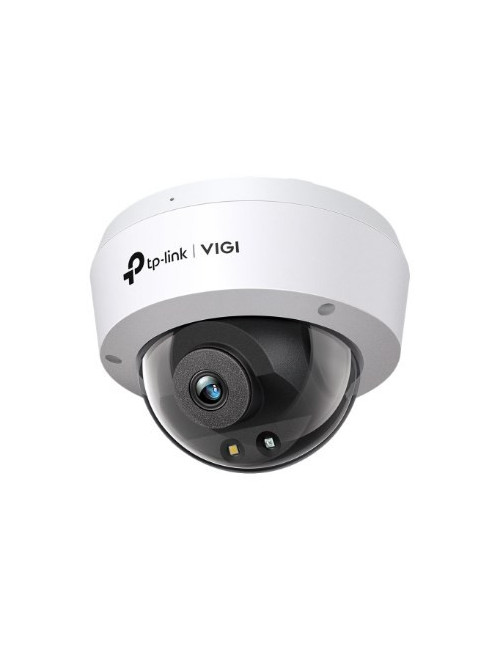

- Type
- IP security camera
- Width
- 115 mm
- Height
- 115 mm
- Depth
- 86 mm
- Connectivity technology
- Wired
- Power source type
- DC, PoE
- Operating temperature (T-T)
- -30 - 60 °C
- Mounting type
- Ceiling
- Form factor
- Dome
- Bit rate
- 64 Kbps to 4 Mbps
- Noise reduction
- Yes
- Protection features
- Waterproof
- Sensor type
- CMOS
- Maximum resolution
- 2304 x 1296 pixels
- Placement supported
- Indoor & outdoor
- Housing material
- Plastic
- Networking standards
- IEEE 802.3at
- Ethernet LAN
- Yes
- International Protection (IP) code
- IP67
- Ethernet interface type
- Fast Ethernet
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Password protection
- Yes
- Product colour
- White
- LED type
- IR
- Night vision
- Yes
- Total megapixels
- 3 MP
- Optical sensor size
- 25.4 / 2.8 mm (1 / 2.8")
- Minimum illumination
- 0.005 lx
- Pan range
- 0 - 360°
- Lens viewing angle, diagonal
- 106.9°
- Video compression formats
- H.265+
- DC output voltage
- 12
- Number of cameras
- 1
- Camera pan control
- Yes
- Night vision distance
- 30 m
- Number of lenses
- 1
- Day/night mode
- Yes
- Built-in HDD
- No
- Lens viewing angle, vertical
- 45.1°
- Noise reduction technology
- 3D noise reduction
- Smart IR
- Yes
- Maximum aperture number
- 1.6
- Lens diameter
- 4 mm
- Lens viewing angle, horizontal
- 89.1°
- Number of sensors
- 1
- Infra-red wavelength
- 850 nm
- Wide Dynamic Range (WDR)
- Yes
- Progressive scan
- Yes
- Mirror
- Yes
- Back Light Compensation (BLC)
- Yes
- Video streaming
- Yes
- Privacy masking
- Yes
- Highlight Compensation (HLC)
- Yes
- Image quality adjustment
- Brightness
- IK code
- IK10
- Digest authentication
- Yes
- Password reset via email
- Yes
- Digital Wide Dynamic Range (DWDR) (panoramic camera)
- Yes
- Basic event
- Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
- B/W night vision distance
- 30 m
Quick Compare
Product |
![]() |
![]() |
![]() |
![]() |
Availability |
|
|
|
|
Price |
€79.29
|
€79.87
|
€80.78
|
€81.84
|
Description |
||||
Mac operating systems supported |
Yes | Yes | ||
Type |
IP security camera | IP security camera | IP security camera | IP security camera |
Windows operating systems supported |
Yes | Yes | ||
Package type |
Box | |||
Width |
110 mm | 121.7 mm | 109.9 mm | |
Height |
186 mm | 100 mm | 257.5 mm | 100.9 mm |
Depth |
110 mm | 138.4 mm | 109.9 mm | |
Connectivity technology |
Wired & Wireless | Wired | Wired & Wireless | Wired |
Weight |
415 g | 380 g | 565 g | 330 g |
Frequency band |
2.4 GHz | |||
Power source type |
DC | PoE | DC | DC, PoE |
Cables included |
LAN (RJ-45) | |||
Storage relative humidity (H-H) |
0 - 90% | |||
Manual |
Yes | Yes | Yes | |
Operating temperature (T-T) |
-10 - 55 °C | -20 - 50 °C | -30 - 60 °C | -40 - 60 °C |
Operating relative humidity (H-H) |
10 - 90% | 10 - 80% | 0 - 95% | 0 - 95% |
Storage temperature (T-T) |
-20 - 60 °C | -30 - 70 °C | ||
Mounting type |
Wall | Wall | Ceiling/Pole | Ceiling/wall |
Form factor |
Bullet | Dome | Dome | Dome |
Built-in microphone |
Yes | Yes | Yes | Yes |
LED indicators |
Yes | |||
Bluetooth |
No | No | ||
Bit rate |
64 Kbps - 8192 Kbps | H.264: 32 - 4096Kbps; H.265: 12 - 4096Kbps | ||
Noise reduction |
Yes | Yes | ||
AC adapter included |
Yes | |||
Mobile operating systems supported |
Android | iOS | Android | Android |
Microphone in |
Yes | |||
Protection features |
Dust resistant | |||
Sensor type |
CMOS | CMOS | CMOS | HD CMOS |
Wi-Fi |
Yes | Yes | No | |
Internal memory |
128 MB | |||
Compatible memory cards |
MicroSD (TransFlash) | MicroSD (TransFlash) | MicroSD (TransFlash) | |
Wi-Fi standards |
802.11a | Wi-Fi 4 (802.11n) | ||
Maximum memory card size |
256 GB | 256 GB | 256 GB | |
Audio system |
2-way | 2-way | 2-way | |
Audio formats supported |
PCM | |||
Signal-to-Noise Ratio (SNR) |
56 dB | |||
Maximum operating distance |
120 m | |||
Power consumption (max) |
12 W | 5 W | 4.6 W | |
Power consumption (typical) |
5.32 W | 2 W | ||
Maximum resolution |
2560 x 1920 pixels | 3072 x 1728 pixels | 2560 x 1440 pixels | 2560 x 1440 pixels |
Built-in speaker(s) |
Yes | Yes | Yes | |
Placement supported |
Outdoor | Outdoor | Indoor & outdoor | Indoor & outdoor |
Card reader integrated |
Yes | Yes | Yes | |
Ethernet LAN (RJ-45) ports |
1 | 1 | 1 | 1 |
DC-in jack |
Yes | |||
Housing material |
Plastic | |||
Networking standards |
IEEE 802.11b | IEEE 802.3af | ||
Security algorithms |
WPA2-PSK | |||
Ethernet LAN |
Yes | Yes | Yes | Yes |
Supported graphics resolutions |
2560 x 1920 | 1280 x 720 (HD 720) | 704 x 576 | |
Zoom capability |
Yes | Yes | ||
Diameter |
6.7 cm | |||
International Protection (IP) code |
IP67 | IP66 | IP66 | IP67 |
Digital zoom |
6x | 16x | ||
Antenna type |
External | External | ||
Antennas quantity |
2 | 2 | ||
Ethernet interface type |
Fast Ethernet | Fast Ethernet | Fast Ethernet | Fast Ethernet |
Supported video modes |
1080p | 1080p | ||
Video formats supported |
H.264 | H.264 | ||
Colour Temperature |
4500 K | |||
Number of Users |
20 user(s) | |||
Supported network protocols |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | IP, TCP, UDP, SMTP, FTP, DHCP, RTSP | ONVIF | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
Reset button |
Yes | Yes | ||
Frame Rate |
20 fps | 25 fps | 30 fps | 30 fps |
Mounting kit |
Yes | |||
Product colour |
White | Black | White | White |
Tilt angle range |
0 - 90° | 0 - 78° | ||
Harmonized System (HS) code |
85258900 | |||
Sustainability certificates |
RoHS | |||
Focal length range |
2.8 mm | |||
Fixed focal length |
4 mm | 4 mm | 3.6 mm | |
Web browser |
Yes | |||
Video recording |
Yes | |||
Virtual assistant |
Google Assistant | Amazon Alexa & Google Assistant | ||
Screws included |
Yes | Yes | Yes | |
LED type |
IR | IR | IR | IR / White light LED |
Night vision |
Yes | Yes | Yes | Yes |
Total megapixels |
5 MP | 5 MP | 4 MP | 4 MP |
PTZ control |
Yes | |||
Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") | 25.4 / 2.7 mm (1 / 2.7") | 25.4 / 2.9 mm (1 / 2.9") | |
White balance |
Street lamp | |||
Pan range |
0 - 355° | 0 - 360° | ||
Lens viewing angle, diagonal |
94° | 107° | 111° | |
Video compression formats |
H.264 | H.265 | H.264H | |
DC output current |
1 A | 1 A | 1 A | |
DC output voltage |
12 | 12 | 12 | 12 |
Video motion detection |
Yes | Yes | Yes | |
Number of cameras |
1 | 1 | 1 | 1 |
Camera pan control |
Yes | |||
Camera tilt control |
Yes | |||
Night vision distance |
30 m | 20 m | 30 m | 30 m |
Number of lenses |
1 | 1 | 1 | |
Day/night mode |
Yes | Yes | Yes | |
Infrared (IR) cut-off filter |
Yes | |||
Built-in HDD |
No | No | ||
Camera shutter type |
Mechanical | |||
Lens viewing angle, vertical |
48° | 43.6° | 46° | 52° |
Noise reduction technology |
3D noise reduction | |||
Smart IR |
Yes | |||
Digital Wide Dynamic Range (DWDR) |
Yes | |||
Region of Interest (ROI) encoding |
Yes | |||
Maximum aperture number |
2 | 2.1 | 1.6 | |
Lens viewing angle, horizontal |
80° | 78° | 88° | 94° |
Number of sensors |
1 | 1 | 1 | |
Infra-red wavelength |
850 nm | |||
Built-in siren |
Yes | Yes | ||
Alert notification type |
Text alert message | |||
Wide Dynamic Range (WDR) |
Yes | 120 dB | ||
Progressive scan |
Yes | Yes | ||
Mirror |
Yes | |||
Back Light Compensation (BLC) |
Yes | |||
Video streaming |
Yes | Yes | ||
Weatherproof |
Yes | Yes | Yes | |
Active tampering alarm |
Yes | |||
Intelligent Video Surveillance (IVS) system features |
Human detection | Vehicle detection | ||
ROM capacity |
128 MB | |||
Camera shutter speed |
1/3 -1/100000 s | |||
Number of effective pixels (H x V) |
2560 x 1440 pixels | |||
Bit rate control |
Constant Bit Rate (CBR), Variable Bit Rate (VBR) | |||
Gain control type |
Auto | |||
Flip & mirror |
Yes | |||
Number of illumination LEDs |
18 | 4 | 1 / 1 | |
Live view |
Yes | |||
Power consumption (Power over Ethernet (PoE)) |
2.9 W | |||
Image quality adjustment |
Sharpness | |||
Mounting brackets included |
Yes | |||
Waterproof connector |
Yes | |||
Streaming method |
Multicast | Multicast | ||
Mounting template |
Yes | |||
Anchors included |
Yes | |||
User access level |
Administrator, User | |||
Built-in light |
Yes | Yes | ||
Management software |
Smart PSS, Smart PSS Lite, DSS, DMSS, P2P | |||
Closest focusing distance |
1.1 m | |||
Siren noise level |
100 dB | 110 dB | ||
Detect distance |
64 m | |||
Observe distance |
25.6 m | |||
Recognize distance |
12.8 m | |||
Identify distance |
6.4 m | |||
Audio codecs |
G.711a, G.711Mu, G.726, PCM | |||
Bit rate range |
64 - 8192 Kbit/s | |||
PTZ modes |
Auto pan | |||
Smartphone/tablet remote support |
Yes | |||
Power over Ethernet (PoE) voltage range |
48 V | |||
