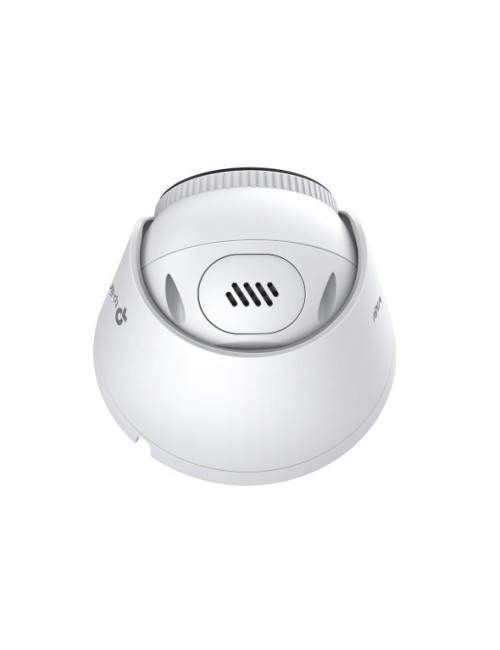

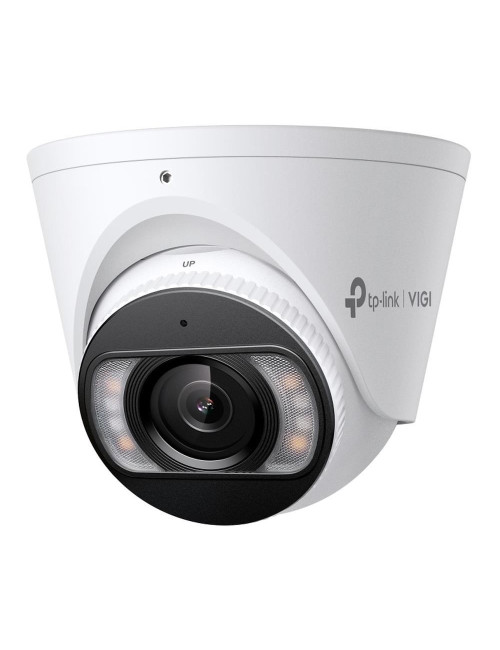

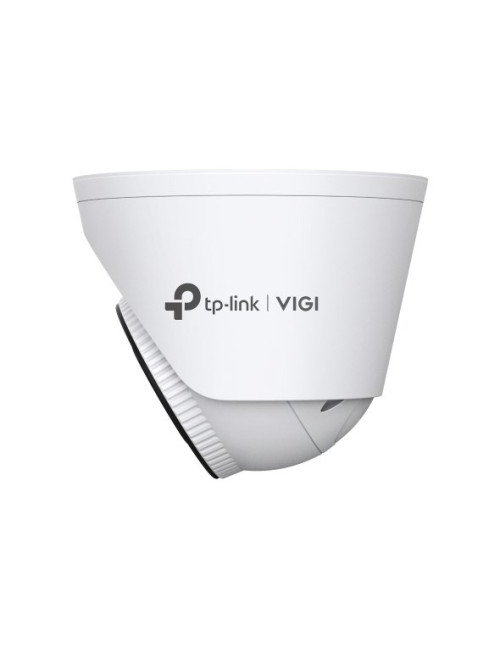

TP-Link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Product Details

Reference WLONONWCRDEGN

In stock 18 Items

Data sheet

Type

IP security camera

Width

111 mm

Height

83.7 mm

Depth

111 mm

Connectivity technology

Wired

Weight

480 g

Power source type

DC

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Turret

Built-in microphone

Yes

Sample rate

8 kHz

Bit rate

6 Mbps

Noise reduction

Yes

Sensor type

CMOS

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10.1 W

Maximum resolution

2688 x 1520 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Ethernet LAN

Yes

Supported graphics resolutions

2304 x 1296

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Password protection

Yes

Frame Rate

60 fps

Product colour

White

Tilt angle range

0 - 85°

Focal length range

4 mm

Fixed focal length

4 mm

LED type

IR

Night vision

Yes

Total megapixels

4 MP

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0.005 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

98.7°

Video compression formats

H.265+

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Lens viewing angle, vertical

41.8°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens diameter

4 mm

Lens viewing angle, horizontal

80.4°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

IP address filtering

Yes

Camera shutter speed

1/3 - 1/10000 s

Bit rate control

Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

4

Digest authentication

Yes

Detect distance

80 m

Observe distance

33 m

Recognize distance

16 m

Identify distance

8 m

Minimum aperture number

1.6

Bit rate range

64 - 64 Kbit/s

Number of Privacy masking areas

4

Warnings

The product contains electronic components; do not dispose of with the normal household waste.
