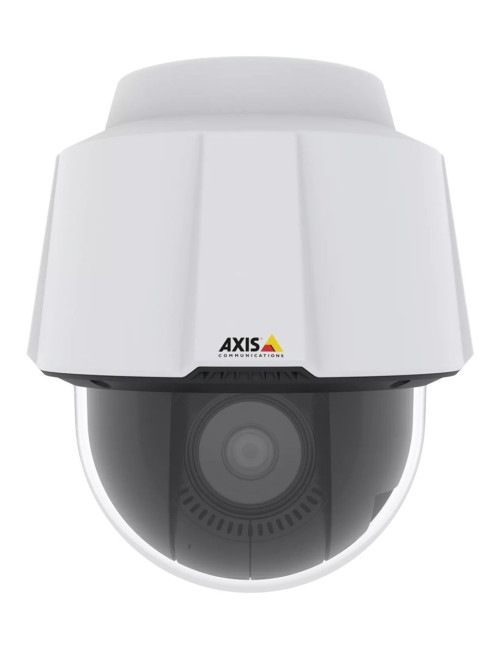

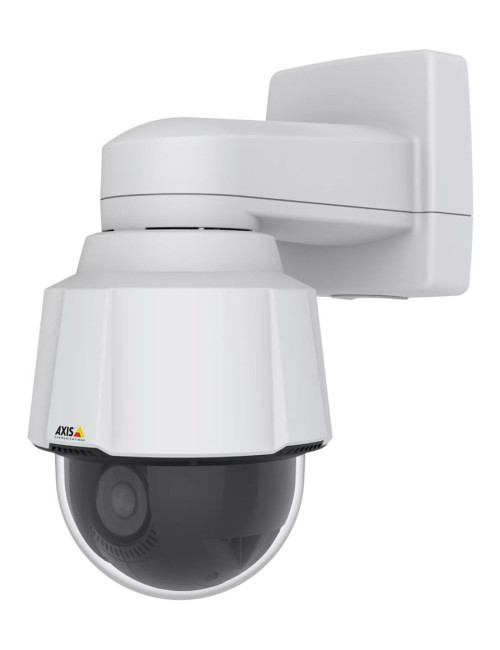

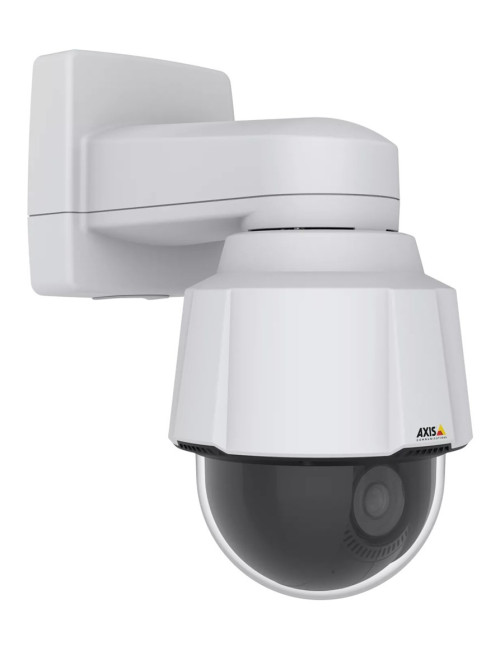

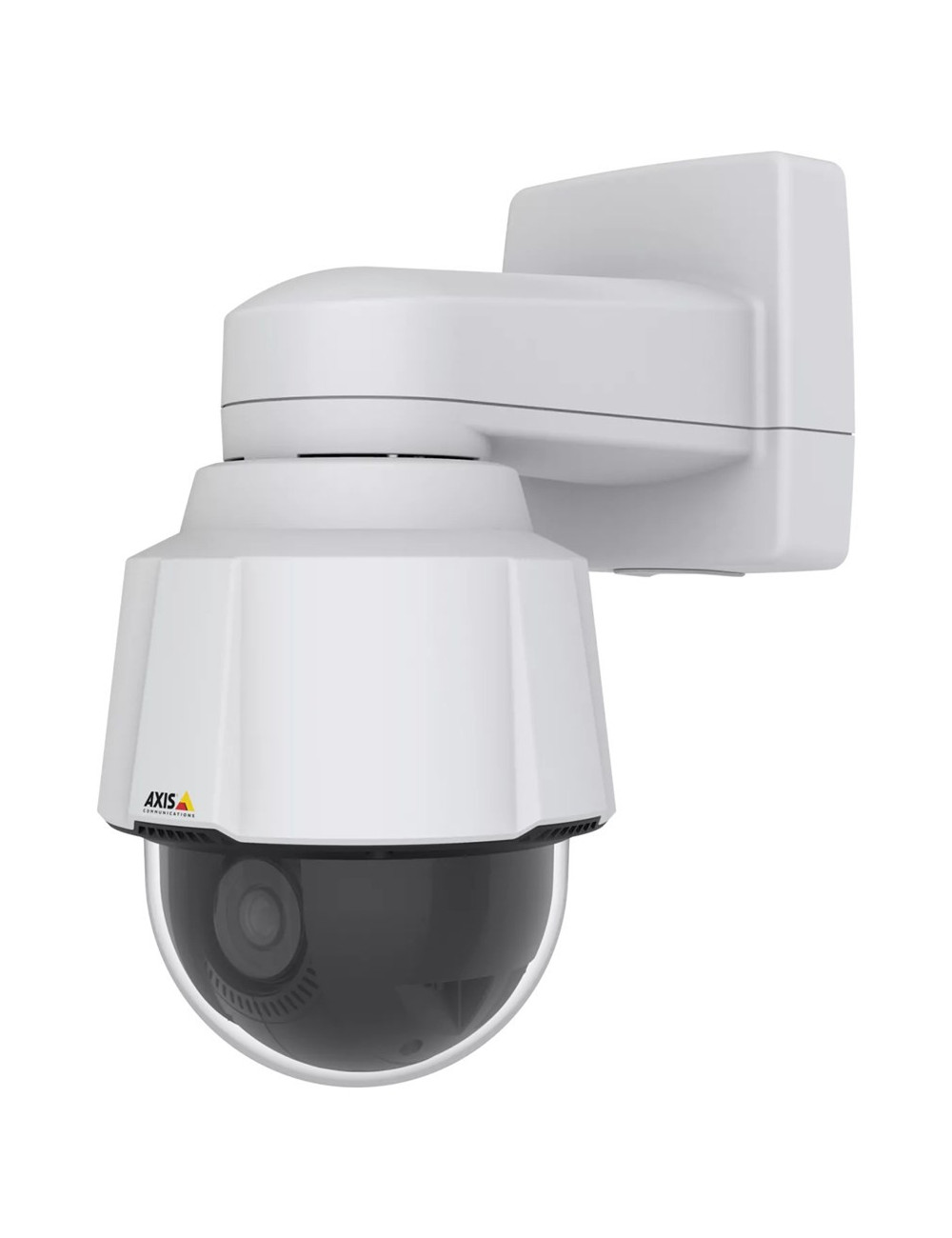

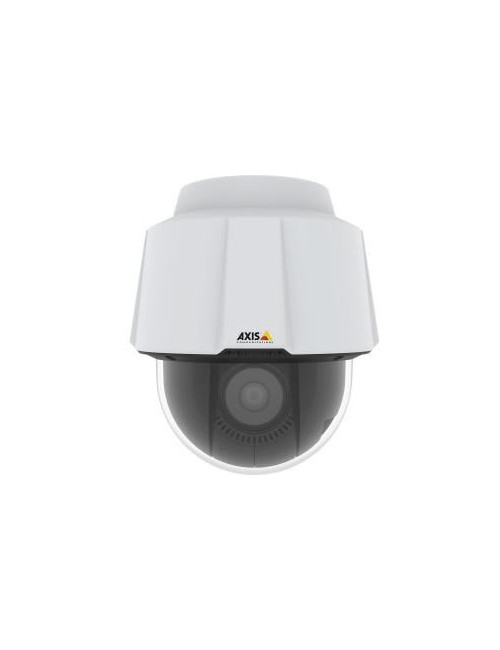

Axis P5655-E Camera 50HZ

Product Details

Data sheet

Type

IP security camera

Width

188 mm

Height

217 mm

Depth

188 mm

Connectivity technology

Wired

Weight

2.5 kg

Power source type

DC, PoE

Manual

Yes

Operating temperature (T-T)

-30 - 55 °C

Operating relative humidity (H-H)

10 - 100%

Storage temperature (T-T)

-40 - 70 °C

Mounting type

Ceiling/wall

Form factor

Dome

Sample rate

48 kHz

Microphone in

Yes

Protection features

Shock resistant

Sensor type

CMOS

Internal memory

1024 MB

Compatible memory cards

SDXC

Audio system

2-way

Audio formats supported

LC-AAC

Power consumption (max)

19 W

Power consumption (typical)

10.5 W

Maximum resolution

1920 x 1080 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Aluminium

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080)

Zoom capability

Yes

International Protection (IP) code

IP66

Flash memory

512 MB

Digital zoom

12x

Auto focus

Yes

Ethernet interface type

Fast Ethernet

Supported video modes

1080p

Video formats supported

H.265

Optical Zoom

32x

Password protection

Yes

Frame Rate

60 fps

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 180°

Harmonized System (HS) code

85258900

Focal length range

4.3 - 137.6 mm

Image stabilizer

Yes

PTZ control

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Minimum illumination

0.02 lx

Pan range

0 - 360°

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Number of lenses

1

Day/night mode

Yes

Preset points

Yes

Infrared (IR) cut-off filter

Yes

Lens viewing angle, vertical

35.7°

Maximum aperture number

4

Lens viewing angle, horizontal

58.7°

Number of sensors

1

Audio detection

Yes

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Video streaming

Yes

Fog proof

Yes

Weatherproof

Yes

Alarm input/output

Yes

IP address filtering

Yes

Camera shutter speed

1/66500 - 2 s

Bit rate control

Variable Bit Rate (VBR)

Privacy masking

Yes

HTTPS encryption

Yes

Image quality adjustment

Brightness

IK code

IK10

Streaming method

Multicast

Pan speed

350 °/sec

Tilt speed

350 °/sec

Minimum aperture number

1.4

Text caption overlay

Yes
