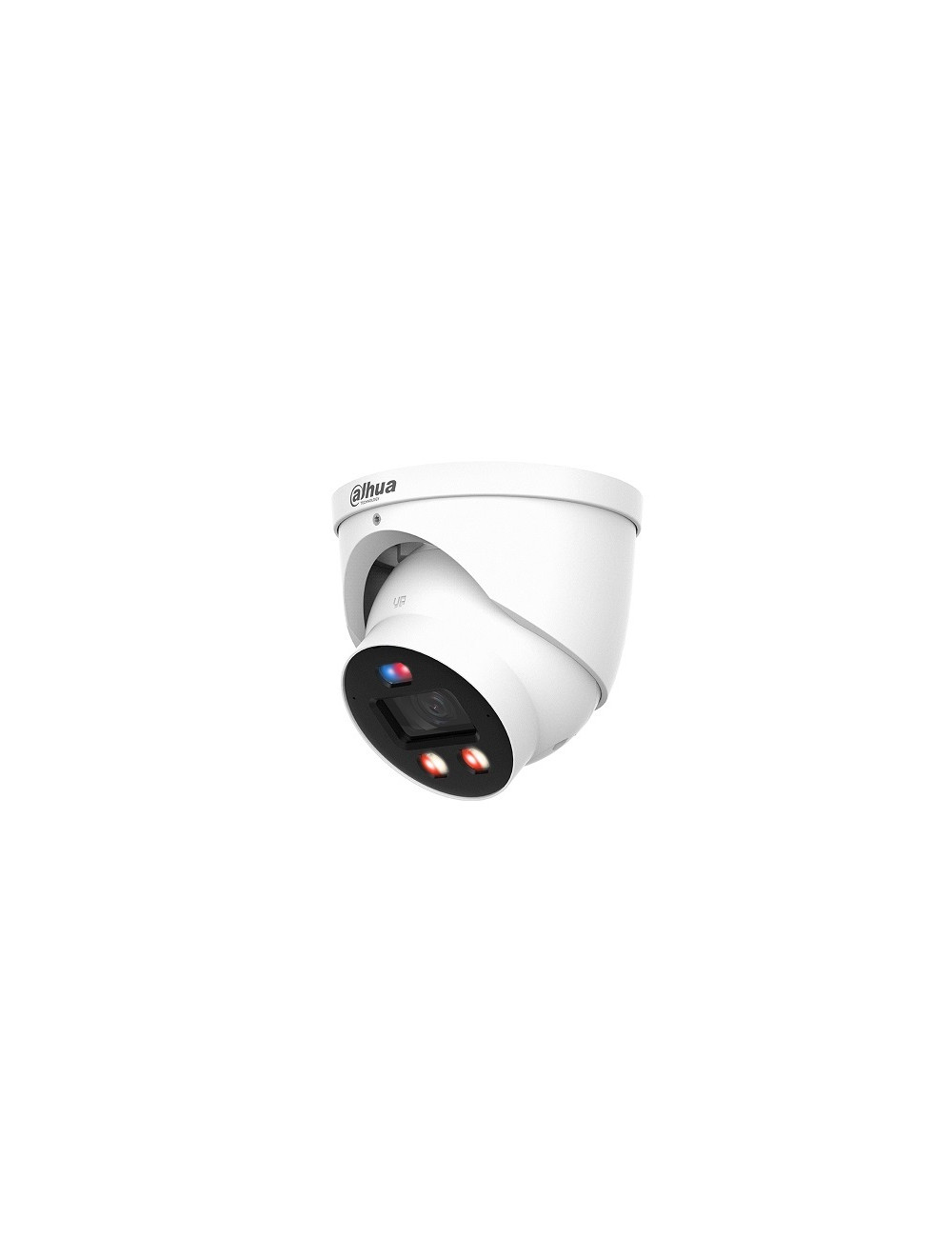

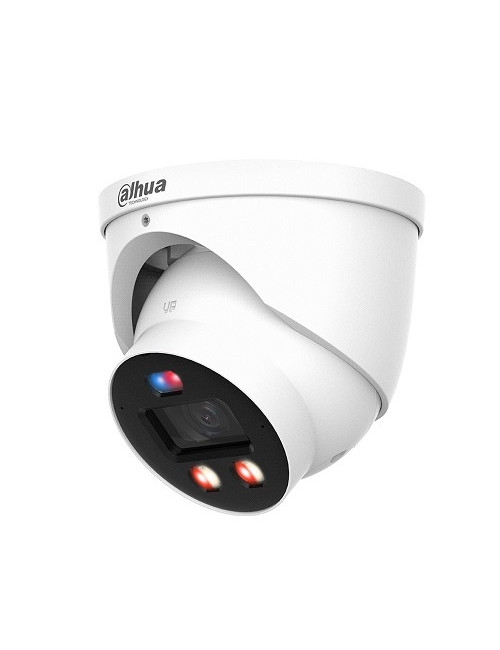

IP network camera 4MP IPC-HDW3449H-AS-PV-PRO 3.6mm

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) x 1520 (V)

ROM

256 MB

RAM

1 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 Lux@F1.0 (Color, 30IRE)

0.0004 Lux@F1.0 (B/W, 30IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

3.6 mm

Max. Aperture

F1.0

Field of View

3.6 mm: H: 95°; V: 51°; D: 114°

Iris Control

Fixed

Close Focus Distance

3.6 mm: 3.5 m (11.48 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

69.0 m

(226.38 ft)

27.6 m

(90.55 ft)

13.8 m

(45.28 ft)

6.9 m

(22.64 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate ?25%)
AI H.264 (Compression rate ?25%)

Video Frame Rate

Main stream: 2688 x 1520@(1 fps–25/30 fps)
Sub stream: 1920 x 1080@(1–25/30 fps)

Third stream: 1920 x 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.3 W (12 VDC); 4.5 W (PoE)

Max.(H.265 + WDR+ warm light + siren and light active deterrence + intelligence on): 7.4 W (12 VDC); 8.7 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

?95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

?122.0 mm x 116.1 mm (4.80" x ?4.57")

Net Weight

0.8 kg (1.76 lb)

Gross Weight

1.0 kg (2.20 lb)
