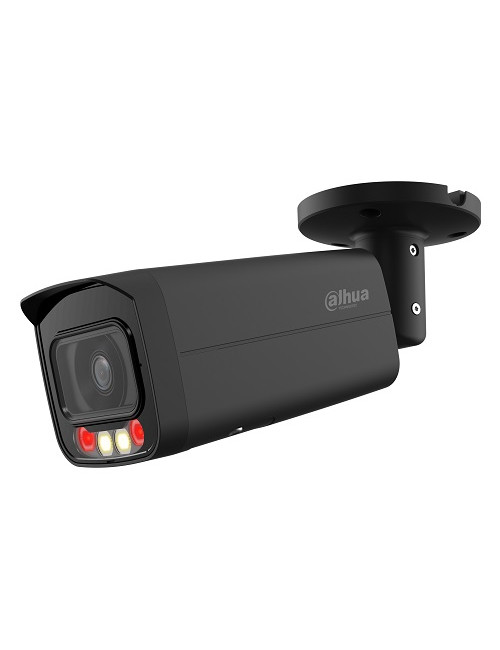

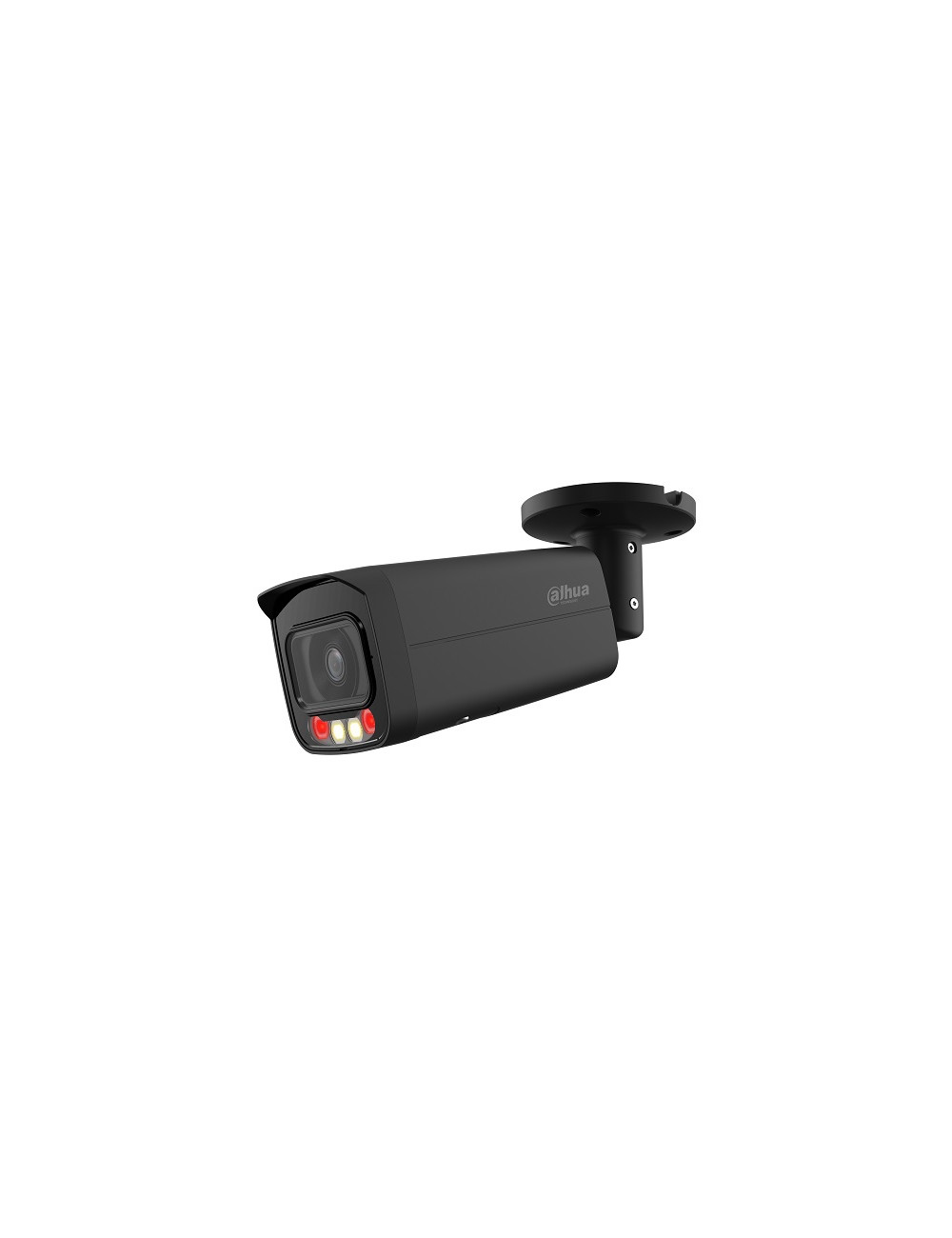

IP Network Camera 5MP HFW2549T-AS-IL 3.6mm Black
    DAHUA TECHNOLOGY CO., LTD

    IP Network Camera 5MP HFW2549T-AS-IL 3.6mm Black

    €188.61
    Tax included
    Quantity

    Add to favorites Add to compare

    Camera

    Image Sensor

    1/2.7" CMOS

    Max. Resolution

    2960 (H) x 1668 (V)

    ROM

    128 MB

    RAM

    256 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.007 lux@F1.6 (Color, 30 IRE)

    0.0007 lux@F1.6 (B/W, 30 IRE)

    0 lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    up to 60 m (195.85 ft) (IR)

    up to 50 m (164.04 ft) (Warm light)

    Illuminator On/Off Control

    Auto; Manual

    Illuminator Number

    2 (IR LED); 2 (Warm light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    3.6 mm

    Max. Aperture

    F1.6

    Field of View

    3.6 mm: H: 92°; V: 45°; D: 110°

    Iris Control

    Fixed

    Close Focus Distance

    3.6 mm: 1.7 m (5.58 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    3.6 mm

    85.4 m

    (208.18 ft)

    34.2 m

    (112.20 ft)

    17.1 m

    (56.10 ft)

    8.5 m

    (27.89 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Intelligence

    IVS (Perimeter Protection)

    Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    Smart Search

    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: 2960 x 1668@(1–20 fps )/2688x1520@(1–25/30 fps)

    Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)

    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    2960 x 1668 (2960 x 1668); 2880 x 1620 (2880 x 1620); 2688 x 1520 (2688 x 1520); 3M (2048 x 1536); 2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–8192 kbps
    H.265: 12 kbps–8192 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto; Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    G.711a; G.711Mu; G.726; PCM

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P

    Interoperability

    ONVIF (Profile S/Profile T/Profile G); CGI

    User/Host

    20 (Total bandwidth: 48 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 256 GB)

    Management Software

    SmartPSS Lite; DSS; DMSS

    Browser

    IE; Chrome; Firefox

    Mobile Client

    iOS; Android

    Cyber Security

    Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

    Certification

    Certifications

    CE-LVD: EN62368-1

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    FCC: 47 CFR FCC Part 15, Subpart B

    UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: 5 mA 3–5 VDC

    Alarm Output

    1 channel out: 300 mA 12 VDC

    Power

    Power Supply

    12 VDC/PoE (802.3af)

    Power Consumption

    Basic: 2.3 W (12 VDC); 3 W (PoE)

    Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 6.7 W (12 VDC); 7.9 W (PoE)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    ?95%

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    ?95%

    Protection

    IP67; IK10 (optional)

    Anti-corrosion Level

    Low

    Structure

    Casing Material

    Metal

    Product Dimensions

    238.5 mm x 90.7 mm x 90.7 mm (9.39" x 3.57" x 3.57") (L x W x H)

    Net Weight

    0.72 kg (1.59 lb)

    Gross Weight

    0.97 kg (2.14 lb)

    Product Details

    HFW2549TASLB
