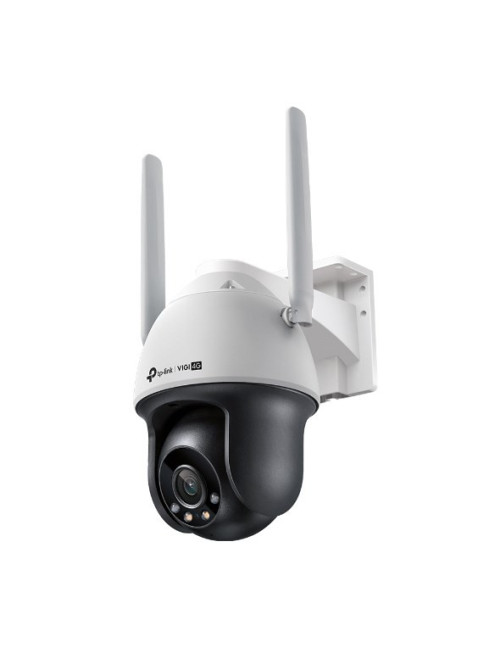

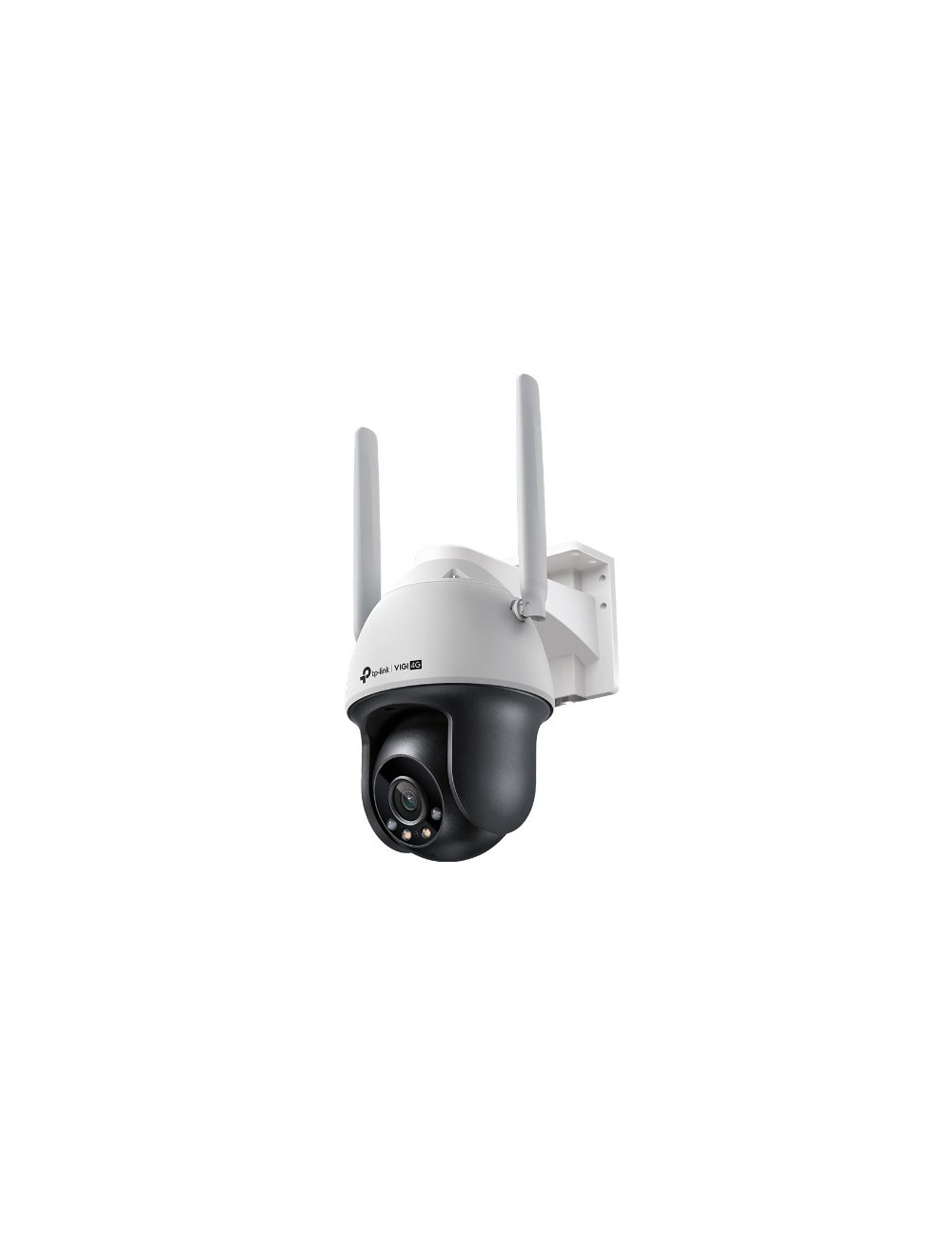

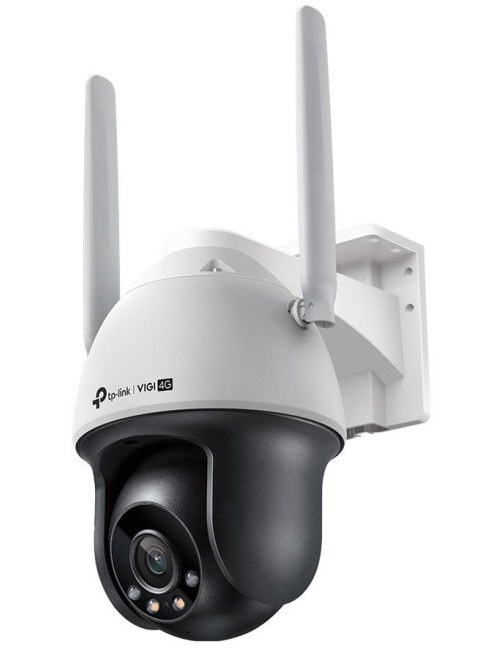

TP-Link IPCam VIGI C540-4G(4mm) 4MP 4G LTE Full-Color

Product Details

Reference WLONONWCREAYL

In stock 25 Items

Data sheet

Type

IP security camera

Width

120 mm

Height

201 mm

Depth

182 mm

Connectivity technology

Wired

Weight

690 g

Package depth

213 mm

Package height

243 mm

Package width

163 mm

Package weight

1.16 kg

Power source type

DC

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling/wall

Form factor

Turret

Built-in microphone

Yes

Sample rate

8 kHz

Bit rate

256 Kbps - 4 Mbps

Noise reduction

Yes

Sensor type

CMOS

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

SIM card type

NanoSIM

Signal-to-Noise Ratio (SNR)

52 dB

Maximum resolution

2560 x 1440 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

320 x 240

Zoom capability

Yes

International Protection (IP) code

IP66

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Reset button

Yes

Password protection

Yes

Luminous flux

0.005 lm

Frame Rate

30 fps

Mounting kit

Yes

Product colour

White

Tilt angle range

0 - 120°

4G standard

LTE-TDD & LTE-FDD

3G standards

WCDMA

LED type

IR/White

Night vision

Yes

Total megapixels

4 MP

SIM card slot

Yes

Optical sensor size

25.4 / 3.06 mm (1 / 3.06")

Pan range

0 - 348°

Lens viewing angle, diagonal

94°

Video compression formats

H.264

DC output voltage

12

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Auto patrol mode

Yes

Built-in HDD

No

Lens viewing angle, vertical

43°

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Maximum aperture number

1.6

Lens diameter

4 mm

Lens viewing angle, horizontal

80°

Wide Dynamic Range (WDR)

Yes

Mirror

Yes

Video streaming

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Human detection

Camera shutter speed

1/3 - 1/10000 s

Bit rate control

Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Number of illumination LEDs

4

Live view

Yes

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Brightness

Digest authentication

Yes

Number of simultaneous live view channels

3 channels

Pan speed

44 °/sec

Basic event

Motion Detection, Camera Tampering Detection, Exception

Detect distance

80 m

Observe distance

33 m

Recognize distance

16 m

Identify distance

8 m

Tilt speed

44 °/sec

Minimum aperture number

1.6

Bit rate range

64 - 64 Kbit/s

Compliance certificates

RoHS

Number of Privacy masking areas

4

3D positioning

Yes

Warnings

Avoid direct contact with water to prevent electrical damage.
