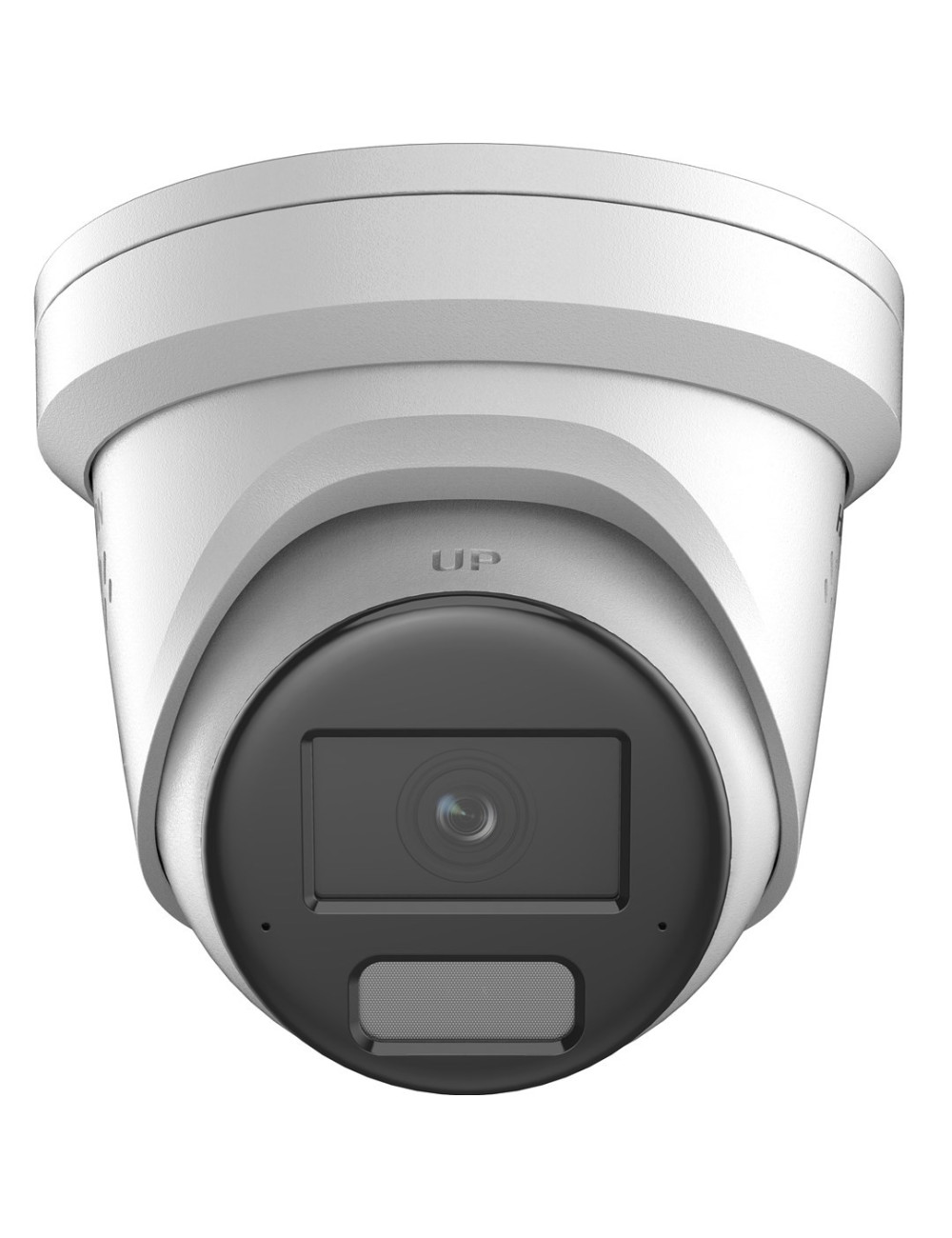

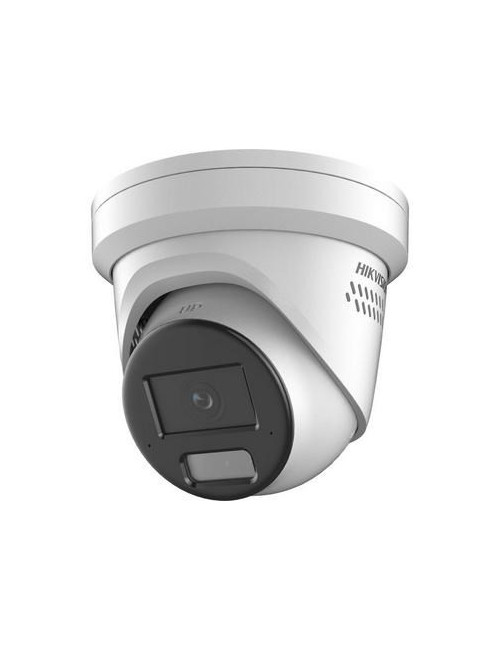

HIKVISION IP CAMERA DS-2CD2366G2H-IS2U/SL(2.8mm)

Product Details

Reference WLONONWCRGPKT

In stock 41 Items

Data sheet

Type

IP security camera

Height

115.4 mm

Connectivity technology

Wired

Weight

780 g

Package depth

170 mm

Package height

160 mm

Package width

170 mm

Package weight

1.21 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Turret

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Protection features

Dust resistant

Audio output

1

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio system

2-way

Audio formats supported

PCM

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

16 W

Maximum resolution

3200 x 1800 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Audio input

1

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Networking standards

IEEE 802.3at

Security algorithms

EAP-TLS

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

Diameter

13.8 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 75°

Fixed focal length

2.8 mm

Number of microphones

2

LED type

IR

Night vision

Yes

Total megapixels

6 MP

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

144°

Video compression formats

H.264

Angle of rotation

360°

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Night vision distance

30 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

60°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

115°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Power consumption (Power over Ethernet (PoE))

18 W

HTTPS encryption

Yes

Image quality adjustment

Saturation

Lens mount interface

M12

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Pixel counter

Yes

Human and vehicle targets classification

Yes

Bit rate range

16 - 320 Kbit/s

Alarm output channels

1

Alarm input channels

1

Compliance certificates

CB

Sample rates

8 - 48 kHz

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes

Flash log

Yes
