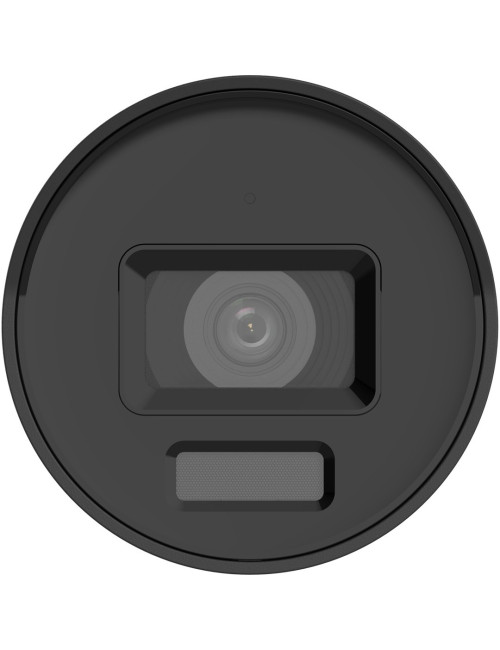

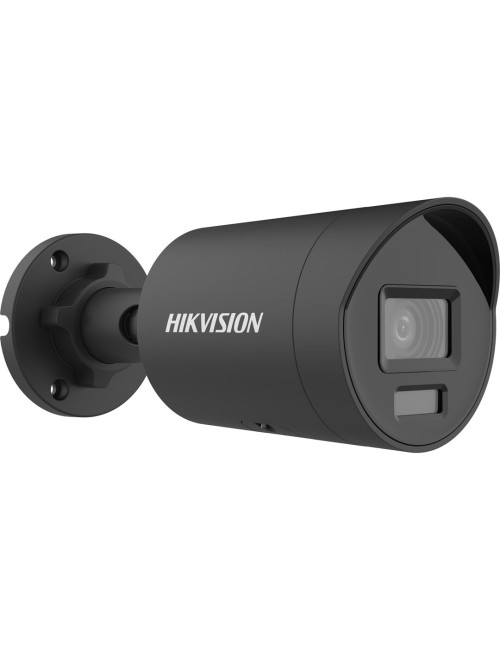

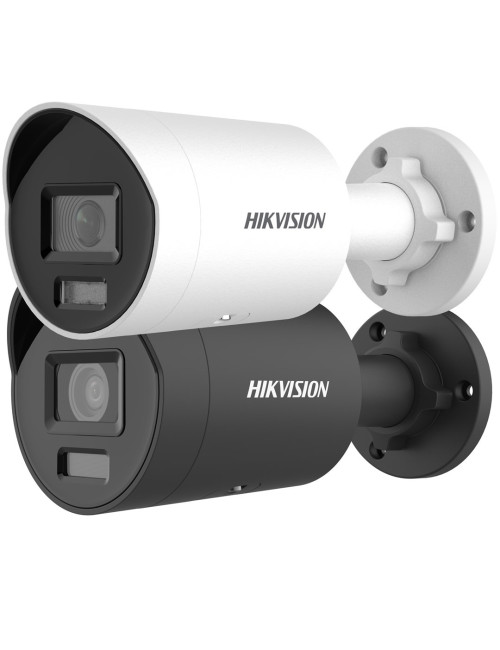

IP Camera HIKVISION DS-2CD2066G2H-IU(2.8mm)(eF)(O-STD)/BLACK

Product Details

Reference WLONONWCRGPM7

In stock 34 Items

Data sheet

Type

IP security camera

Depth

179.2 mm

Connectivity technology

Wired

Weight

505 g

Package depth

120 mm

Package height

117 mm

Package width

234 mm

Package weight

815 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Protection features

Water resistant

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

microSDHC

Audio formats supported

G.711

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

8.5 W

Maximum resolution

3200 x 1800 pixels

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Housing material

Metal

Networking standards

IEEE 802.1x

Security algorithms

EAP-LEAP

Ethernet LAN

Yes

Supported graphics resolutions

640 x 360

Diameter

7.44 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Video formats supported

H.264

Number of Users

32 user(s)

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

Black

Tilt angle range

0 - 90°

Fixed focal length

2.8 mm

LED type

IR

Night vision

Yes

Total megapixels

6 MP

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

143.5°

Video compression formats

M-JPEG

Angle of rotation

360°

DC output current

0.58 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

60°

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1

Lens viewing angle, horizontal

114.8°

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion

Camera shutter speed

1/3 s - 1/100000

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

HTTPS encryption

Yes

Image quality adjustment

Saturation

Lens mount interface

M12

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Detect distance

64 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Pixel counter

Yes

Bit rate range

8 - 320 Kbit/s

Compliance certificates

RoHS

Number of Privacy masking areas

4

Sample rates

8 - 48 kHz

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes
