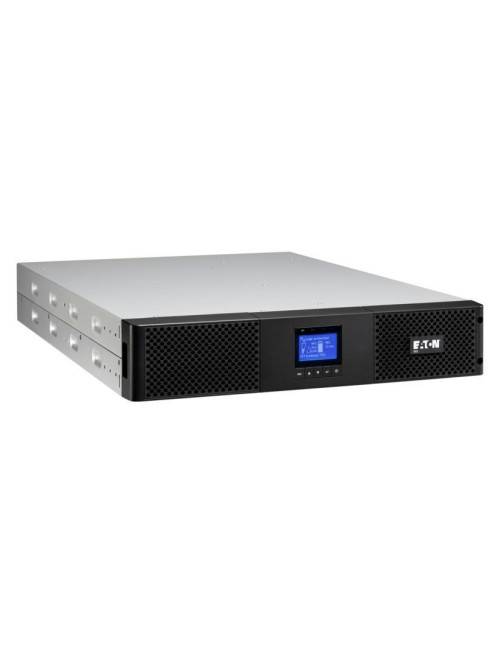

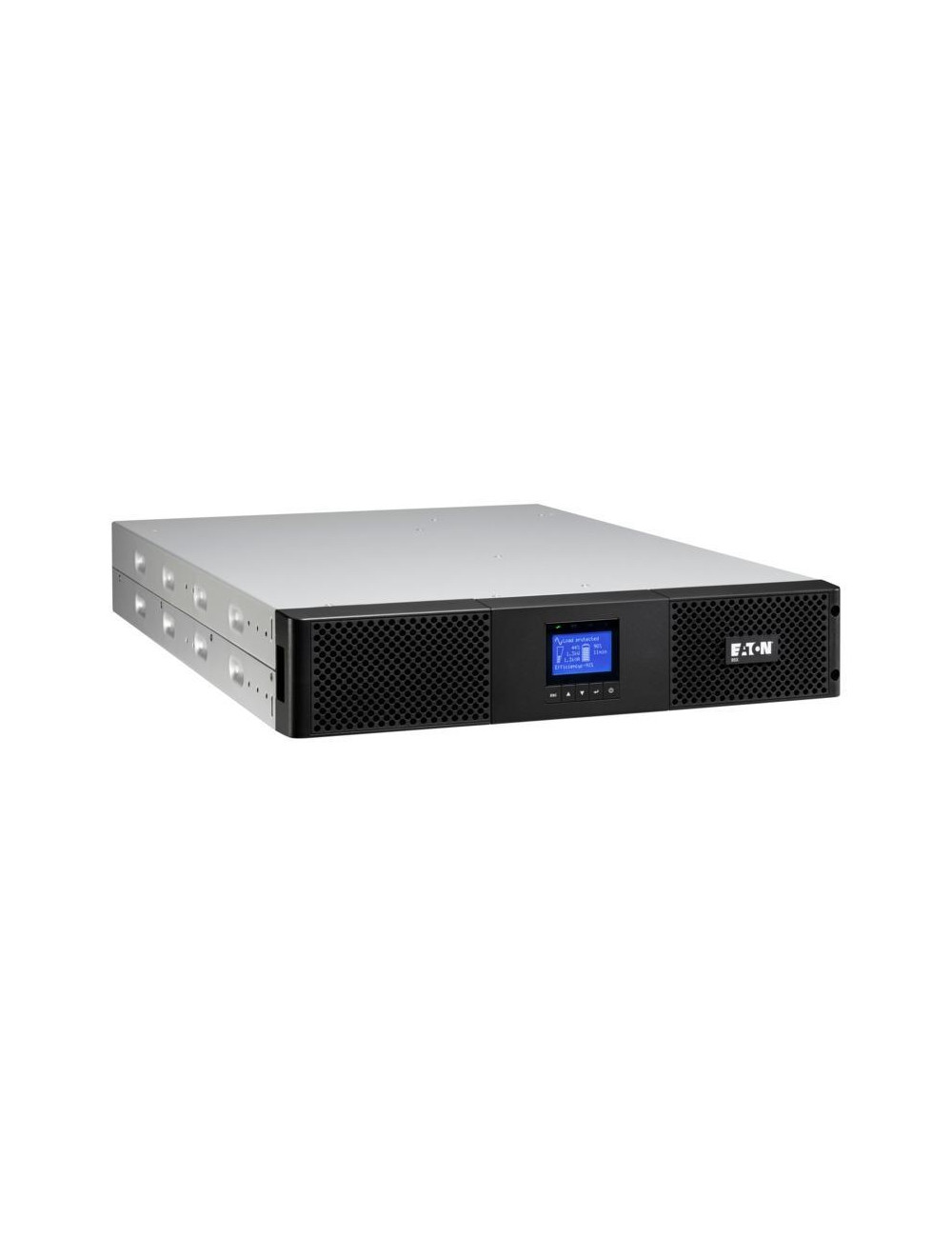

UPS|EATON|900 Watts|1000 VA|OnLine DoubleConvertion|9SX1000IR
    EATON

    UPS|EATON|900 Watts|1000 VA|OnLine DoubleConvertion|9SX1000IR

    1 071,60 €
    Su mokesčiais
    900 Watts | 1000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Eaton 9SX 1000I Rack2U

    Prekė detaliau

    9SX1000IR
    2 Prekės

    Charakteristikos

    Garantija
    24
    Category Code
    UPW
    Unit Box Height
    0.24
    Unit Box Length
    0.57
    Unit Box Width
    0.55
    Vendor Homepage
    powerquality.eaton.com/9SX3000iR.aspx?cx 82&GUID ACA8C602-DFF9-4BE9-B488-3DE195DC697D
    Dimensions
    86.5 x 438 x 438mm
    Units per Shipping Box
    1
    Product Net Weight
    15.7 kg
    Unit Calculated Weight
    15.7 kg
    Unit Calculated Volume
    0.07524 cubm
    Output power capacity, W
    900 Watts
    Output power capacity, VA
    1000 VA
    Topology
    OnLine DoubleConvertion
    Input ports
    Single, IEC320 C14
    Output power connector type
    IEC 320 C13
    Communication ports (USB)
    1
    Communication ports (RS232)
    1

    Greitas palyginimas

    Prekė
    		 APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime PowerWalker VFI 3000 RMG PF1 Double-conversion (Online) 3 kVA 3000 W Eaton 5PX1000IRT2UG2 uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(s)
    Prieinamumas
    Kaina
    1 066,93 €
    1 081,92 €
    1 083,07 €
    Aprašymas
    Package type
    		 Box
    Cable length
    		 1.83 m
    Width
    		 432 mm 190 mm 438 mm
    Height
    		 89 mm 318 mm 85.5 mm
    Depth
    		 490 mm 630 mm 448 mm
    Weight
    		 22.9 kg 27.5 kg 19.6 kg
    Package depth
    		 620 mm
    Package height
    		 246 mm 200 mm
    Package width
    		 589 mm 600 mm
    Package weight
    		 27.3 kg
    Number of batteries supported
    		 6
    Cables included
    		 RS-232, USB cable Input power cable, Output power cable, USB cable
    Storage relative humidity (H-H)
    		 0 - 95%
    Manual
    		 Yes
    Operating temperature (T-T)
    		 0 - 40 °C 0 - 40 °C 0 - 40 °C
    Operating relative humidity (H-H)
    		 0 - 95% 20 - 95%
    Storage temperature (T-T)
    		 -15 - 45 °C
    Form factor
    		 Rackmount/Tower Rackmount/Tower Rackmount/Tower
    USB port
    		 Yes Yes Yes
    LED indicators
    		 Yes Yes
    Battery technology
    		 Sealed Lead Acid (VRLA)
    Battery life (max)
    		 5 year(s)
    Battery capacity
    		 299 VAh 9 Ah
    Battery recharge time
    		 3 h 3 h
    Output power
    		 800 W 3000 W 1000 W
    Input frequency
    		 50/60 Hz 40/70 Hz 47/70 Hz
    USB 2.0 ports quantity
    		 1
    Display type
    		 LCD LCD
    Ethernet LAN (RJ-45) ports
    		 1
    Efficiency
    		 98.2%
    Input operation voltage (min)
    		 151 V 110 V 160 V
    Power protection features
    		 Overdischarge
    Cold start
    		 Yes
    AC outlets quantity
    		 8 AC outlet(s) 8 AC outlet(s)
    Output power capacity
    		 1 kVA 3 kVA 1 kVA
    Output operation voltage (max)
    		 240 V
    Waveform
    		 Sine Sine Pure sine
    Auto-restart
    		 Yes
    AC outlet types
    		 C13 coupler C19 coupler C13 coupler
    Input operation voltage (max)
    		 302 V 300 V 294 V
    Audible alarm(s)
    		 Yes
    Battery voltage
    		 12 V
    Output operation voltage (min)
    		 200 V
    UPS topology
    		 Line-Interactive Double-conversion (Online) Line-Interactive
    Modem (RJ-11) ports
    		 1
    Typical backup time at full load
    		 8.1 min 3 min
    Warranty card
    		 Yes
    Automatic Voltage Regulation (AVR)
    		 Yes
    Automatic battery test
    		 Yes Yes
    Typical backup time at half load
    		 24.2 min 10.1 min 17 min
    Surge protection
    		 Yes Yes
    Nominal input voltage
    		 230 V
    Nominal output voltage
    		 230 V 230 V
    Output frequency regulation
    		 50/60 Hz
    Output voltage regulation
    		 1%
    RS-232 ports
    		 1
    Operating altitude
    		 0 - 3000 m
    Serial interface type
    		 RS-232 RS-232
    Quick installation guide
    		 Yes
    Noise Level
    		 40 dB 50 dB 40 dB
    Serial ports quantity
    		 1
    Surge energy rating
    		 600 J
    Power plug
    		 C14 coupler C14 coupler C14 coupler
    Non-operating altitude
    		 0 - 15000 m
    Product colour
    		 Black Black Black
    Harmonized System (HS) code
    		 85078000 85078000 85078000
    Sustainability certificates
    		 Green Premium ENERGY STAR
    Sustainability compliance
    		 Yes
    Products per pallet
    		 8 pc(s)
    Software CD
    		 Yes
    Safety
    		 IEC/EN 62040-1, UL1778, CSA22.2
    Serial interface
    		 Yes Yes
    Output voltage Total Harmonic Distortion (THD)
    		 2%
    Hot-swap battery
    		 No Yes
    Compliance certificates
    		 RoHS CE
    Total carbon footprint (kg of CO2e)
    		 1153.31
    Audible alarm modes
    		 Low battery alarm, Overload alarm
    Power factor
    		 0.99
    Surge protection features
    		 Modem
    Number of output IEC jumpers
    		 2
    SmartSlot
    		 Yes
    Crest factor
    		 3:1
    Emergency Power Off (EPO)
    		 Yes Yes
    Rack capacity
    		 2U 2U
    Resource CD
    		 Yes
    Rack mount kit
    		 Yes
    Number of type F outputs
    		 9
    Emergency Power Off (EPO) connector
    		 Yes
    Input current Total Harmonic Distortion (THD)
    		 1.6%
    Management card included
    		 No No
    Warnings
    		 Do not disassemble the unit housing, there may be a risk of electric shock.
    SmartConnect port
    		 No
