POWER WALKER

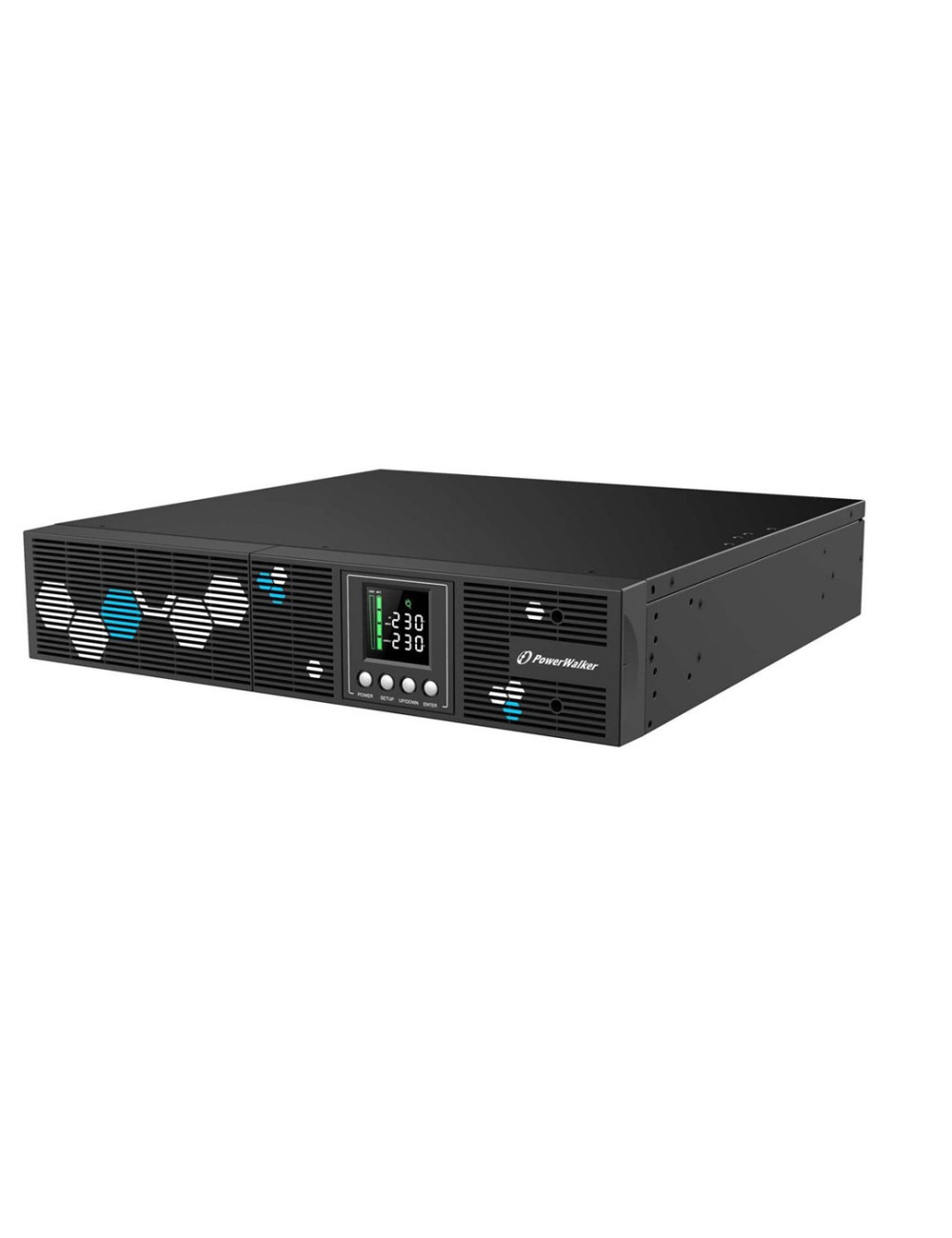

PowerWalker VI 2000 RLP Line-Interactive 2 kVA 1800 W 8 AC outlet(s)

517,27 €

Su mokesčiais

Prekė detaliau
Greitas palyginimas

Prekė detaliau

Prekės ženklas POWER WALKER

Kodas WLONONWCRFRN2

Yra sandėlyje 5 Prekės

Charakteristikos

Number of batteries supported: 4
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 90%
Form factor: Rackmount/Tower
USB port: Yes
LED indicators: Yes
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 1800 W
Input frequency: 45/65 Hz
Response time: 6 ms
Display type: LCD
Input operation voltage (min): 165 V
Power protection features: Overload
Cold start: Yes
AC outlets quantity: 8 AC outlet(s)
Output power capacity: 2 kVA
Waveform: Pure sine
AC outlet types: C13 coupler
Input operation voltage (max): 290 V
Battery voltage: 12 V
UPS topology: Line-Interactive
Typical backup time at full load: 2 min
Off-mode charging: Yes
Automatic Voltage Regulation (AVR): Yes
Automatic battery test: Yes
Typical backup time at half load: 9 min
Nominal output voltage: 230 V
Output voltage regulation: 10%
RS-232 ports: 1
International Protection (IP) code: IP20
Noise Level: 40 dB
Power plug: C14 coupler
Product colour: Black
ECO mode: Yes
USB port type: USB Type-B
Charging current: 6 A
Output voltage Total Harmonic Distortion (THD): 3%
SmartSlot: Yes
Emergency Power Off (EPO): Yes
Rack capacity: 2U
Output power factor: 0.9
Number of input phases: 1
Number of output phases: 1
Efficiency (On-line mode): 98.8%
Efficiency (ECO mode): 83.4%

Greitas palyginimas

Prekė	Eaton 5P Gen2 uninterruptible power supply (UPS) Line-Interactive 520 W 8 AC outlet(s)	Schneider Electric APC Back-UPS Pro, Tower, 10x IEC C13 outlets, AVR, LCD, user-replaceable battery \| BR1500GI \| 1500 VA \| 865 W	Conceptronic ZEUS51E1K 1000VA 1000W Online UPS, IEC	Digitus OnLine UPS systems, tower type, 3000 VA / 3000 W
Prieinamumas
Kaina	506,01 €	506,22 €	507,28 €	511,07 €
Aprašymas		Schneider Electric APC Back-UPS Pro, Tower, 10x IEC C13 outlets, AVR, LCD, user-replaceable battery \| BR1500GI \| 1500 VA \| 865 W \| 230 V
Warranty		24 month(s)
Producer product name		BR1500GI
Net weight		12.70 kg
Gross weight		14.00 kg
WEEE tax		Yes
Packing quantity		1.00 pc(s)
Volume (m3)		0.02 m
Tare weight (kg)		1.30 kg
Gross depth (mm)		490.00 mm
Gross width (mm)		250.00 mm
Gross height (mm)		140.00 mm
WEE classification		CL109:5:2017-04-01
Paper/Pasteboard		1000.00 g
Embeeded battery		Yes
Package type				Box
TI weight (kg)		5.60 kg
Width	150 mm		438 mm	191 mm
Height	233 mm		88 mm	337 mm
Depth	345 mm		430 mm	460 mm
Plastic (No PET)		300.00 g
Composition of battery		CL127:KT:2016-12-09
Classification of battery		CL126:NE:2016-12-09
Type of battery		Accumulator
Weight	7.9 kg		10.6 kg	24.5 kg
Producer product family		APC Back-UPS Pro, Tower, 10x IEC C13 outlets, AVR, LCD, user-replaceable battery
Package depth				563 mm
Package height				446 mm
Package width				275 mm
Package weight				27.4 kg
Number of batteries supported	1
Cables included	USB cable		Input power cable, RS-232, USB cable	Power load cable, RS-232, USB cable
Operating temperature (T-T)	0 - 40 °C		0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%		20 - 90%	20 - 95%
Storage temperature (T-T)				-25 - 55 °C
Form factor	Tower		Desktop	Tower
USB port	Yes		Yes	Yes
Battery technology	Lead-acid			Sealed Lead Acid (VRLA)
Battery capacity	9 Ah		9 Ah	9 Ah
Capacity		1500 VA
Palette Qty		50 pc(s)
Battery recharge time			4 h	4 h
Country of origin			China
Cooling type			Active
Output power	520 W		1000 W	3000 W
Input frequency	47/70 Hz		50/60 Hz	40 - 70 Hz
USB 2.0 ports quantity			1
Response time				4 ms
Display type	LCD		LCD	LCD
Number of battery cells				6
Efficiency	98.2%			92%
Input operation voltage (min)	160 V		220 V	110 V
Power protection features			Short circuit	Battery discharge
Cold start				Yes
AC outlets quantity	8 AC outlet(s)		8 AC outlet(s)	8 AC outlet(s)
Output power capacity			1 kVA	3 kVA
Output operation voltage (max)	230 V		240 V	240 V
Waveform	Sine		Sine	Pure sine
AC outlet types	C13 coupler		C13 coupler	C13 coupler
Input operation voltage (max)	294 V		240 V	300 V
Audible alarm(s)				Yes
Battery voltage	12 V		12 V	12 V
Output operation voltage (min)			220 V	208 V
UPS topology	Line-Interactive	Line-Interactive	Double-conversion (Online)	Double-conversion (Online)
AC input voltage		230 V
Output voltage regulation				1%
RS-232 ports			1	1
Operating altitude	0 - 3000 m			0 - 1000 m
Serial interface type	RS-232		RS-232
Quick installation guide	Yes		Yes	Yes
Output frequency	50/60 Hz			50/60 Hz
Noise Level	35 dB			50 dB
Serial ports quantity	1
Maximum current			10 A
Power plug	C14 coupler			C20 coupler
Product colour	Black		Black	Black
Harmonized System (HS) code			8504402000
Pallet gross length			120 cm
Products per pallet			32 pc(s)
Pallet gross width			110 cm
Pallet gross height			2.15 m
Products per master (outer) case			1 pc(s)
Master (outer) case gross weight			12.8 kg
Master (outer) case height			226 mm
Master (outer) case length			566 mm
Master (outer) case width			550 mm
Serial interface	Yes		Yes	Yes
ECO mode			Yes
Screws included			Yes
USB port type			USB Type-B
Charging current				2 A
Output voltage Total Harmonic Distortion (THD)				3%
Producer		Schneider Electric
Compliance certificates	RoHS		RoHS
Audible alarm modes			Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Power factor				1
Crest factor				3:1
Emergency Power Off (EPO)			Yes
Rack mount kit			Yes
Output power factor			1
Number of input phases	1
Number of output phases	1
Efficiency (ECO mode)				97%
Auto shut-off	Yes
Input current Total Harmonic Distortion (THD)			5%
Programmable sockets			Yes
