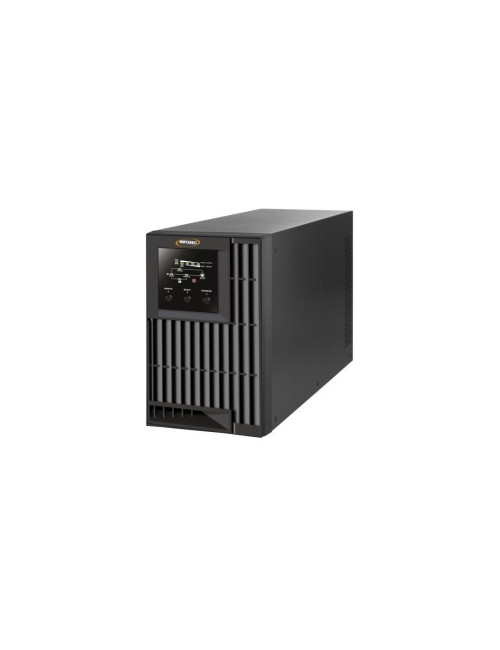

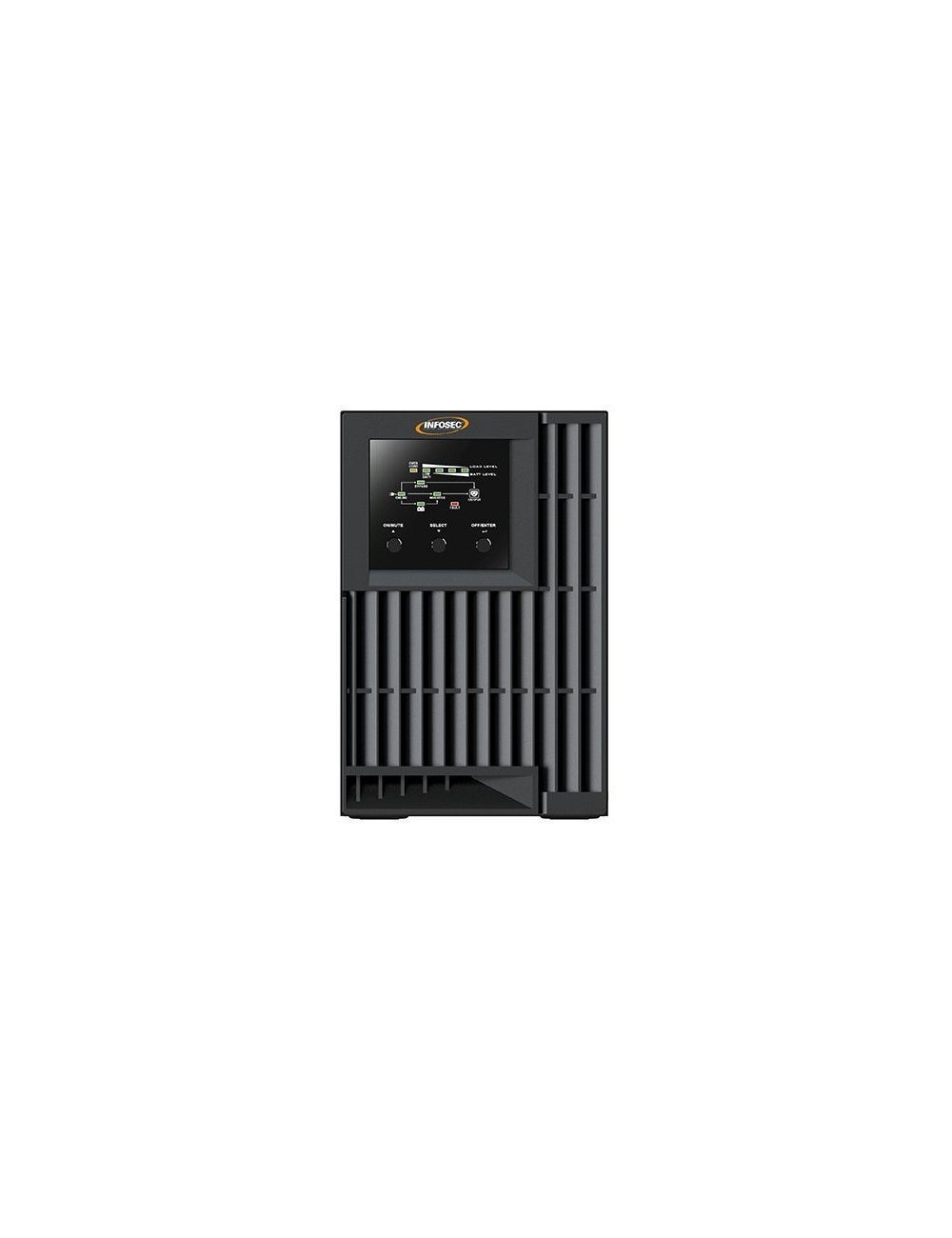

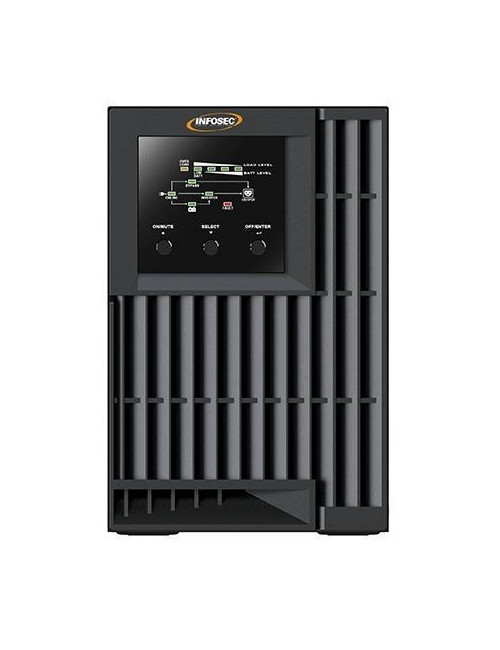

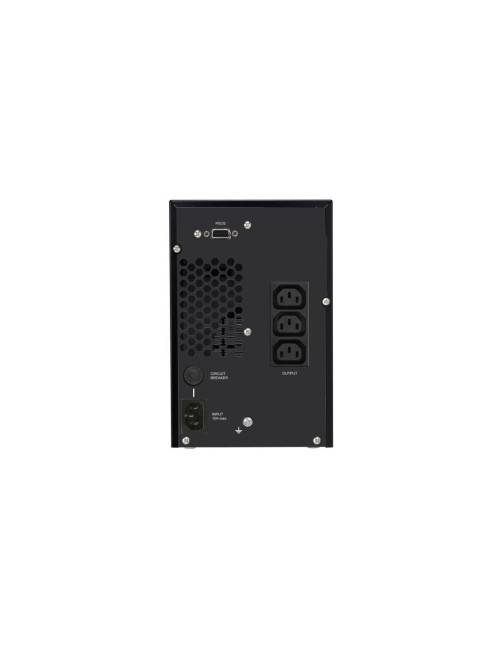

Infosec E4 Value 1000 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 3 AC outlet(s)

Prekė detaliau

Charakteristikos

Width

145 mm

Height

282 mm

Depth

220 mm

Weight

8.6 kg

Cables included

Output power cable, RS-232, Input power cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Form factor

Tower

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Battery recharge time

4 h

Input frequency

47 - 63 Hz

Response time

4 ms

Display type

LED

Efficiency

88%

Input operation voltage (min)

100 V

Cold start

Yes

AC outlets quantity

3 AC outlet(s)

Output power capacity

1 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

C13 coupler

Input operation voltage (max)

240 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

100 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

30 min

Typical backup time at half load

9 min

Output voltage regulation

-1 - 1%

Serial interface type

RS-232

Output frequency

47/63 Hz

Noise Level

50 dB

Serial ports quantity

1

Maximum current

10 A

Product colour

Black

Serial interface

Yes

ECO mode

Yes

Charging current

1 A

Output voltage Total Harmonic Distortion (THD)

6%

Compliance certificates

RoHS

Audible alarm modes

Alarm when on battery, Fault, Overload alarm, Low battery alarm

Power factor

0.8

Crest factor

3:1

Input power factor

0.99

Number of input phases

1

Number of output phases

1

Warnings

Store away from sources of heat and open flame.
