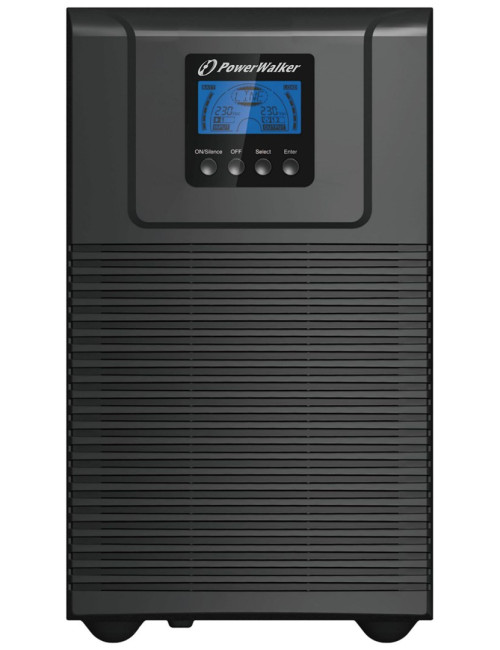

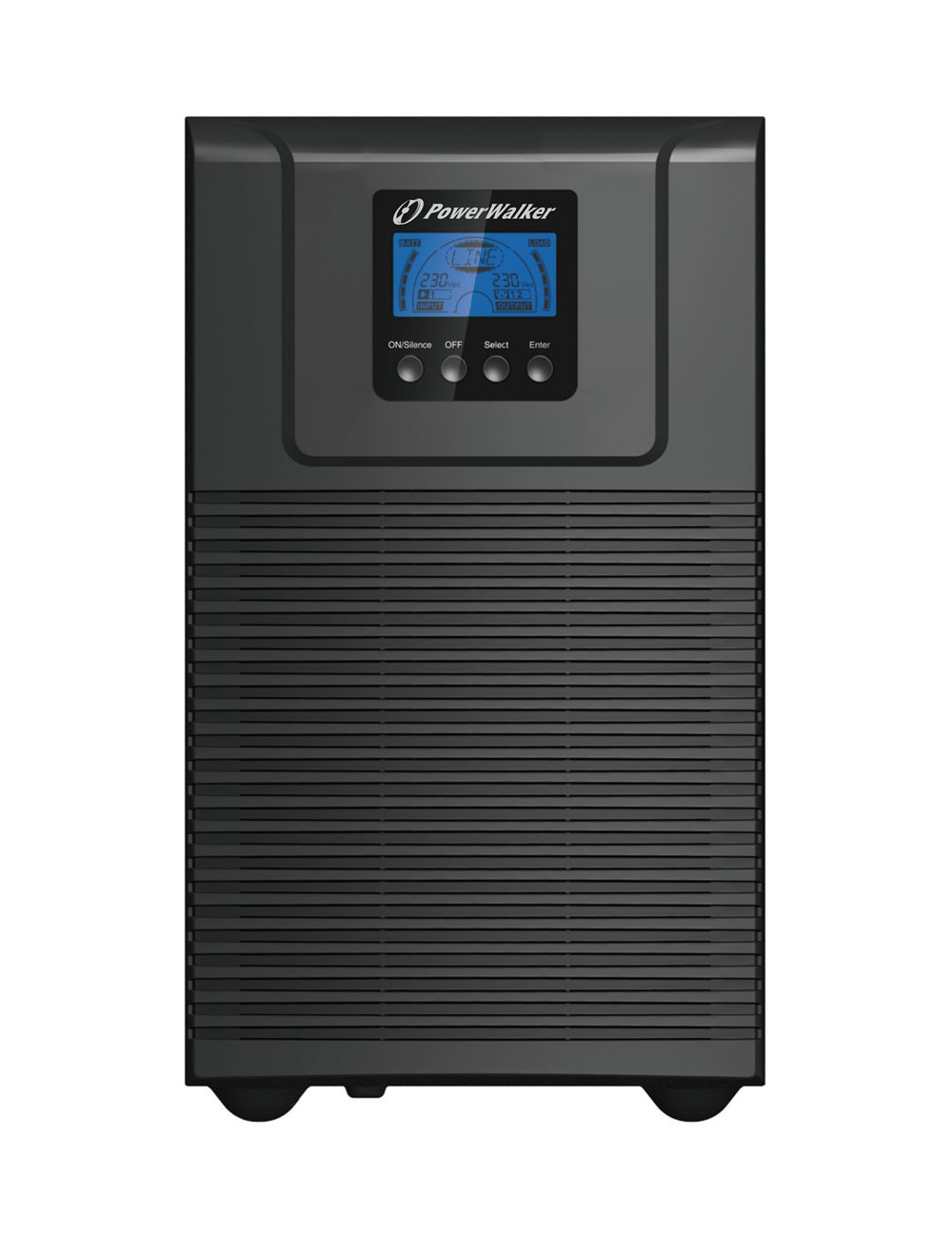

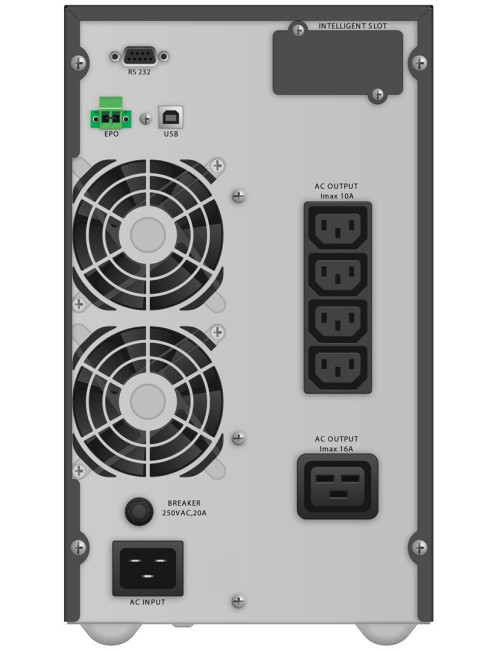

PowerWalker VFI 3000 TG Double-conversion (Online) 3 kVA 2700 W 5 AC outlet(s)

Prekė detaliau

Charakteristikos

Width

190 mm

Height

328 mm

Depth

399 mm

Weight

22.2 kg

Package height

324 mm

Package width

500 mm

Number of batteries supported

6

Cables included

Input power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Form factor

Tower

LED indicators

Yes

Battery capacity

9 Ah

Battery recharge time

4 h

Cooling type

Active

Output power

2700 W

Input frequency

40 - 70 Hz

USB 2.0 ports quantity

1

Response time

4 ms

Display type

LCD

Efficiency

90%

Input operation voltage (min)

80 V

AC outlets quantity

5 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

AC outlet types

C19 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

4.5 min

Output frequency regulation

-0.05 - 0.05 Hz

Output voltage regulation

-2 - 2%

RS-232 ports

1

Noise Level

50 dB

Power plug

C20 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Charging current

1.5 A

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Resource CD

Yes

Output power factor

0.9

Emergency Power Off (EPO) connector

Yes

Input power factor

0.99
