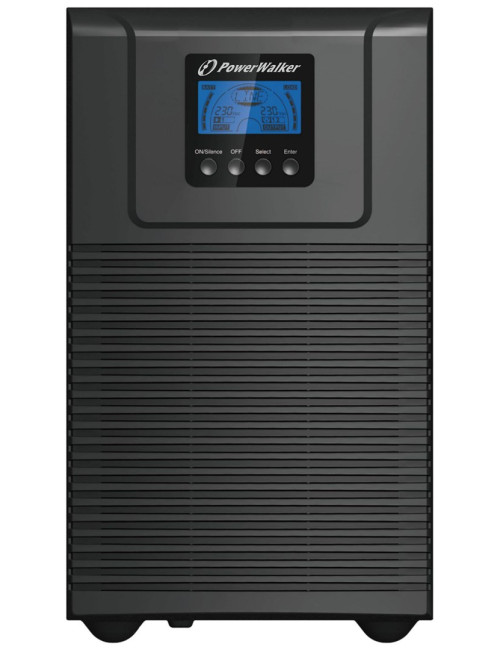

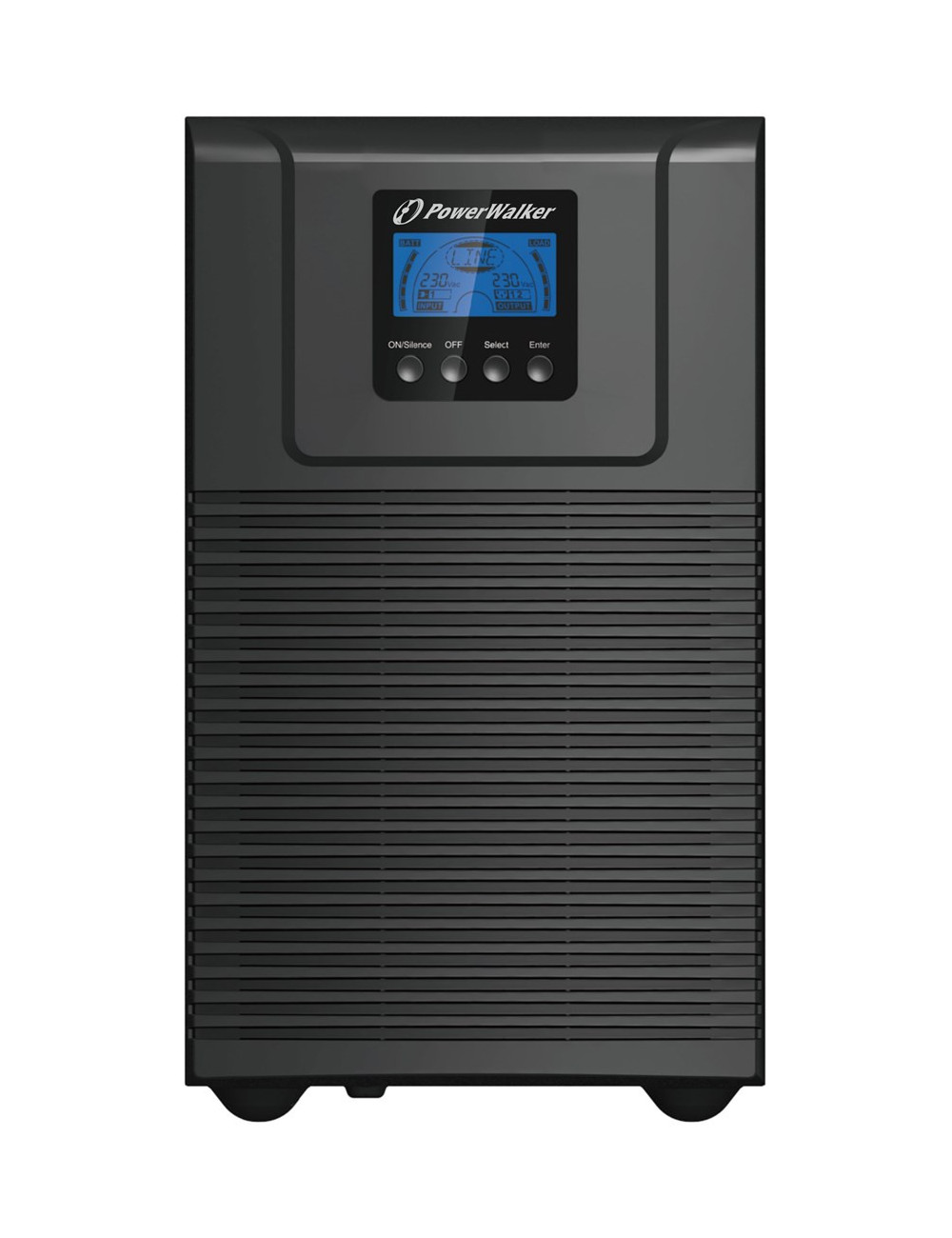

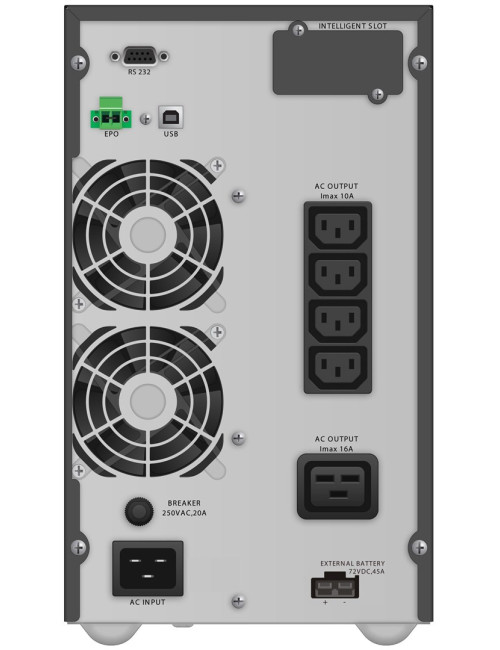

PowerWalker VFI 3000 TGB Double-conversion (Online) 3 kVA 2700 W 5 AC outlet(s)

Prekė detaliau

Charakteristikos

Width

190 mm

Height

328 mm

Depth

399 mm

Weight

22.2 kg

Package height

464 mm

Package width

324 mm

Number of batteries supported

6

Cables included

Input power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

USB port

Yes

Battery capacity

9 Ah

Battery recharge time

4 h

Output power

2700 W

Input frequency

40 - 70 Hz

Display type

LCD

Efficiency

90%

Input operation voltage (min)

176 V

AC outlets quantity

5 AC outlet(s)

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C19 coupler

Input operation voltage (max)

300 V

Battery voltage

12 V

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

3.9 min

Typical backup time at half load

11.7 min

RS-232 ports

1

Noise Level

50 dB

Power plug

C20 coupler

Product colour

Black

Harmonized System (HS) code

85078000

Output voltage Total Harmonic Distortion (THD)

5%

Power factor

0.9

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Emergency Power Off (EPO) connector

Yes

Input current Total Harmonic Distortion (THD)

5%

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
