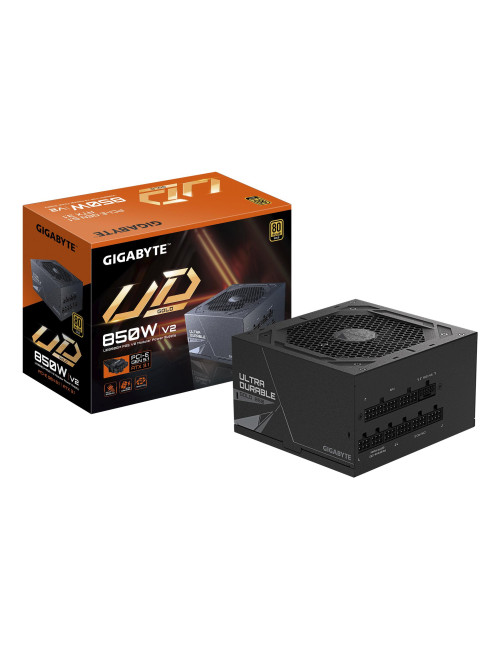

Power Supply|GIGABYTE|UD850GM PG5 V2|ATX 3.1|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD850GMPG5V2
    Gigabyte

    Power Supply|GIGABYTE|UD850GM PG5 V2|ATX 3.1|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD850GMPG5V2

    100,71 €
    Su mokesčiais
    850 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.4 kg | Package type Box | UD850GM PG5 V2
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

    • Intel ATX 3.1 and PCIe Gen 5.1 ready
    • 80 PLUS Gold certified
    • Fully modular design
    • Powerful single +12V rail
    • Compact size
    • 100% Japanese capacitors
    • 120mm smart hydraulic bearing (HYB) fan
    • Optimized thermal solution
    • OVP/OPP/SCP/UVP/OCP/OTP protection

    Prekė detaliau

    GP-UD850GM PG5 V2
    50 Prekės

    Charakteristikos

    Garantija
    36
    Category Code
    PSU
    Unit Box Height
    0.118
    Unit Box Length
    0.253
    Unit Box Width
    0.213
    Vendor Homepage
    https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-rev-20 kf
    Model name
    UD850GM PG5 V2
    Units per Shipping Box
    5
    Unit Calculated Weight
    2.58 kg
    Unit Calculated Volume
    0.007678 cubm
    CnCode
    85044095
    Summary
    GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX
    Weight & dimensions (Weight)
    2400 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    140 mm
    Weight & dimensions (Height)
    86 mm
    Packaging data (Package width)
    618 mm
    Packaging data (Package depth)
    269 mm
    Packaging data (Package height)
    211 mm
    Packaging data (Package weight)
    2560 g
    Design (Product colour)
    Black
    Packaging data (Package type)
    Box
    Power (AC input frequency)
    50/60 Hz
    Power (AC input voltage)
    100 - 240 V
    Power (Input current)
    12 - 6 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Power (Combined power (+12V))
    850 W
    Power (Combined power (+3.3V))
    105 W
    Power (Combined power (+5V))
    105 W
    Power (Combined power (+5Vsb))
    15 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+12V))
    70.8 A
    Power (Max output current (+3.3V))
    20 A
    Power (Max output current (+5V))
    20 A
    Power (Max output current (+5Vsb))
    3 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    850 W
    Ports & interfaces (Cabling type)
    Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    610 mm
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    8
    Ports & interfaces (Peripheral (Molex) power cable length)
    150/500 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    3
    Ports & interfaces (SATA power cable length)
    150/600 mm
    Performance (80 PLUS certification)
    80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Logistics data (Warranty period)
    10 year(s)
    Power (Efficiency)
    90 %
    Ports & interfaces (CPU power cable length)
    600 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power cable length)
    700 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    4
    Performance (Bearing technology)
    HYB
    Power (Hold time)
    16 ms
    Power (Power factor)
    0.9
    Power (Power Factor Correction (PFC) type)
    Active
    Ports & interfaces (Floppy drive power connector)
    1
    Ports & interfaces (Number of EPS connectors)
    2
    Ports & interfaces (PCI Express connector)
    Yes
    Performance (ATX version)
    3.1
    Ports & interfaces (PCI Express power connectors (16-pin))
    1

    Greitas palyginimas

    Prekė
    		 NZXT PSU C750 750W 80+ Bronze ATX 3.1 GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CGC751-A5A32SF Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CGC751-A5A32SF GIGABYTE POWER SUPPLY 850W 80+ Gold GIGABYTE POWER SUPPLY 850W 80+ Gold
    Prieinamumas
    Kaina
    88,67 €
    89,22 €
    89,67 €
    89,92 €
    Aprašymas
    		 NZXT PSU C750 750W 80+ Bronze ATX 3.1 The GIGABYTE UD750GM PG5 V2 is a reliable power supply, delivering 750 W to support high-performance systems. With compliance to ATX12V 3.1/EPS12V standards and an efficiency rating of 80 PLUS Gold, this power supply offers energy savings without compromising performance. Designed with fully modular cable management, it allows for easier installation and better airflow within the case. 750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Package type Box GIGABYTE POWER SUPPLY 850W 80+ Gold
    Dimensions (WxDxH)
    		 15 cm x 14 cm x 8.6 cm 15 cm x 14 cm x 8.6 cm
    Device type
    		 Power supply - active Power Factor Correction (PFC) - internal Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    		 AC 100-240 V AC 100-240 V
    Output voltage
    		 +3.3, +5, 12 V, +5Vsb V +3.3, +5, 12 V
    Output current
    		 +3.3V - 20 A +5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A +3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 3 A
    Garantija
    		 84
    PRODUCT DESCRIPTION
    		 Gigabyte UD750GM PG5 V2 - power supply - 750 Watt Gigabyte P850GM - power supply - 850 Watt
    Category Code
    		 PSU
    Unit Box Height
    		 0.185
    Unit Box Length
    		 0.115
    Unit Box Width
    		 0.24
    Vendor Homepage
    		 https://seasonic.com/core-gc-atx-3-1/
    Cooling System
    		 120 mm fan 120 mm fan
    Model name
    		 CORE GC-750 ATX 3.1
    80 PLUS certification
    		 80 PLUS GOLD 80 PLUS GOLD
    Manufacturer Warranty
    		 5-year warranty
    Specification Compliance
    		 ATX12V 3.1/ EPS12V ATX12V 2.31
    Power Capacity
    		 750 Watt 850 Watt
    Output connectors
    		 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 4 PIN mini-power connector
    Modular Cable Management
    		 Yes Yes
    Units per Shipping Box
    		 5
    Unit Calculated Weight
    		 2.61 kg
    Unit Calculated Volume
    		 0.00672 cubm
    Summary
    		 Seasonic CORE GC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply uni
    Weight & dimensions (Width)
    		 150 mm
    Weight & dimensions (Depth)
    		 140 mm
    Weight & dimensions (Height)
    		 86 mm
    Packaging content (Cables included)
    		 AC
    Design (Product colour)
    		 Black
    Packaging data (Package type)
    		 Box
    Power (AC input frequency)
    		 50/60 Hz
    Power (AC input voltage)
    		 100 - 240 V
    Certificates (Certification)
    		 CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
    Operational conditions (Operating relative humidity (H-H))
    		 15 - 65 %
    Operational conditions (Operating temperature (T-T))
    		 0 - 40 C
    Power (Input current)
    		 10 - 5 A
    Design (Cooling type)
    		 Active
    Design (Number of fans)
    		 1 fan(s)
    Design (Fan diameter)
    		 120 mm
    Certificates (Compliance certificates)
    		 BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/REACH/RoHS/UKCA/WEEE
    Power (Combined power (+12V))
    		 744 W
    Power (Combined power (+3.3V))
    		 100 W
    Power (Combined power (+5V))
    		 100 W
    Power (Combined power (+5Vsb))
    		 12.5 W
    Power (Combined power (-12V))
    		 3.6 W
    Power (Max output current (+12V))
    		 62 A
    Power (Max output current (+3.3V))
    		 20 A
    Power (Max output current (+5V))
    		 20 A
    Power (Max output current (+5Vsb))
    		 2.5 A
    Power (Max output current (-12V))
    		 0.3 A
    Power (Power protection features)
    		 Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
    Power (Total power)
    		 750 W
    Ports & interfaces (Cabling type)
    		 Non-Modular
    Ports & interfaces (Motherboard power cable length)
    		 550 mm
    Ports & interfaces (Motherboard power connector)
    		 20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    		 2
    Ports & interfaces (Peripheral (Molex) power cable length)
    		 600 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    		 1
    Ports & interfaces (SATA power cable length)
    		 600 mm
    Performance (80 PLUS certification)
    		 80 PLUS Gold
    Performance (Mean time between failures (MTBF))
    		 100000 h
    Performance (Power supply unit (PSU) form factor)
    		 ATX
    Performance (Purpose)
    		 PC
    Design (On/off switch)
    		 Yes
    Ports & interfaces (CPU power cable length)
    		 600 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    		 Yes
    Ports & interfaces (EPS power connector (8-pin))
    		 Yes
    Ports & interfaces (PCI Express power cable length)
    		 550 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    		 2
    Performance (Bearing technology)
    		 Ball bearing
    Ports & interfaces (PCI Express connector)
    		 Yes
    Performance (ATX version)
    		 3.1
    Ports & interfaces (ATX power connector (20+4 pin))
    		 Yes
    Technical details (Sustainability certificates)
    		 ENERGY STAR/ErP
